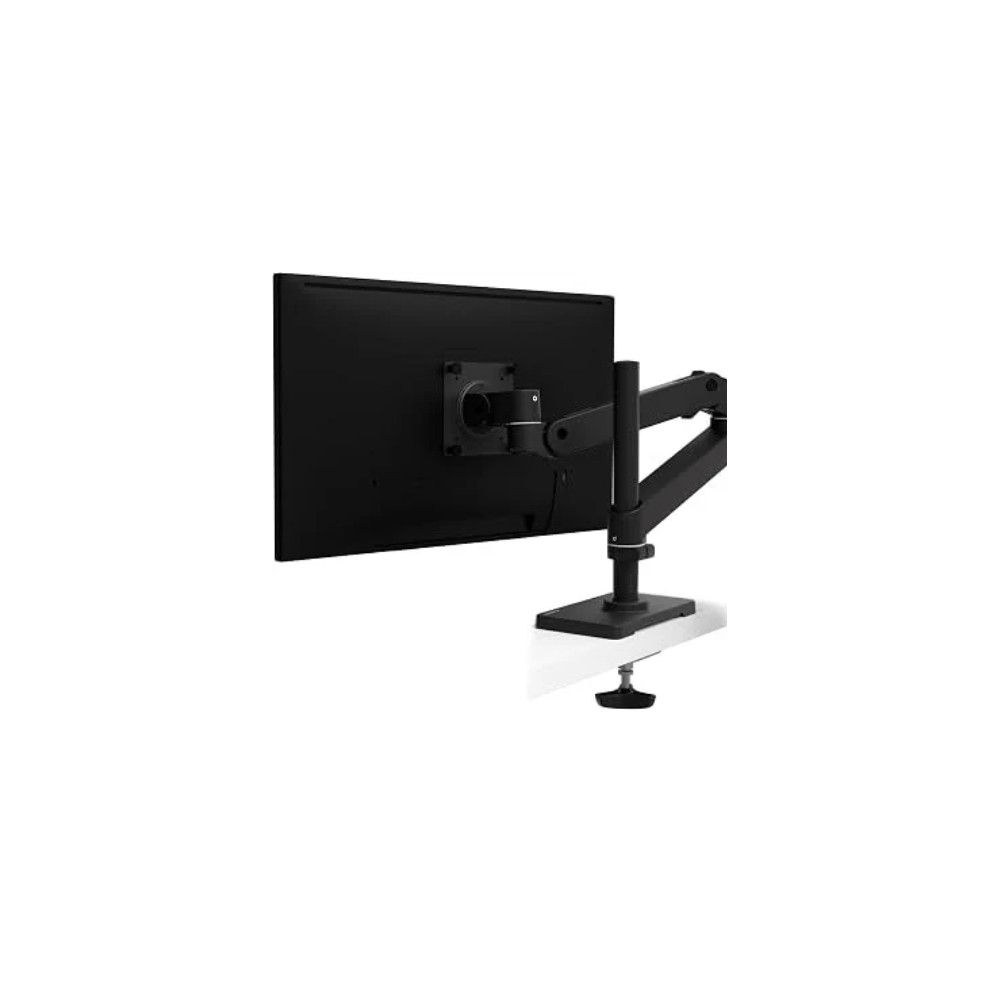

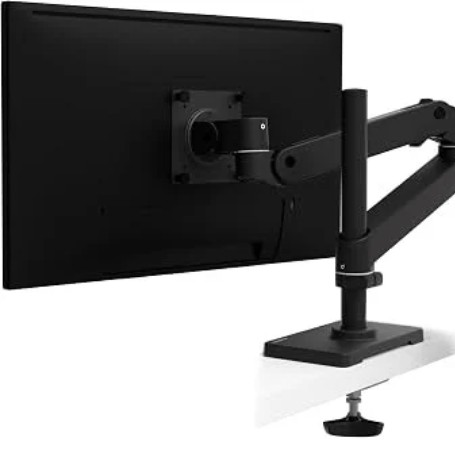

Ergotron 45-709-292 – LX Pro Desk Monitor Arm, Tall Pole Grommet Mount
Overview
The Ergotron 45-709-292 is an LX Pro Desk Monitor Arm with a tall pole and grommet mounting configuration. Designed for one display, it provides adjustable positioning while freeing desktop space and supporting ergonomic monitor placement.
Technical Information
The arm supports displays weighing from 4 to 22 lb (1.8 to 10 kg) and accommodates screens up to 34 inches. It provides up to 13 inches (33 cm) of height adjustment, up to 22 inches (56 cm) of arm extension, 360° pan, 360° rotation, and a tilt range from -15° to +70°.
The tall-pole configuration uses a 12-inch (30.4 cm) pole. Constant Force™ technology provides smooth monitor positioning, while integrated cable management and a rotation stop support organized installation and controlled movement.
Compatibility
The 45-709-292 supports one compatible monitor with VESA 75 × 75 mm or 100 × 100 mm mounting patterns. The display must remain within the specified 4–22 lb load range and 34-inch maximum screen size.
The grommet mount is designed for desks with mounting holes from 0.4 to 2 inches (10–50 mm) in diameter. The tall-pole configuration is useful where additional vertical adjustment is required compared with the standard LX Pro desk arm.
Key Features
- Supports one display up to 34 inches and 22 lb (10 kg)
- 12-inch (30.4 cm) tall pole with up to 13 inches of height adjustment
- Grommet mounting for desks with 0.4–2 inch holes
- 360° pan and rotation with -15° to +70° tilt
- VESA 75 × 75 mm and 100 × 100 mm support with integrated cable management
Applications
The LX Pro Desk Monitor Arm is suited to office workstations, professional desktops, creative workstations, productivity environments, and commercial work areas requiring flexible positioning of a single large monitor.
DC Supplies Product Note
The 45-709-292 is specifically the tall-pole grommet configuration of the LX Pro Desk Monitor Arm. Verify the desk grommet opening, monitor weight, and VESA pattern before installation to ensure compatibility with the exact mounting configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-709-292 |
| Product Type | Single Monitor Arm |
| Series | LX Pro |
| Model | LX Pro Desk Monitor Arm, Tall Pole, Grommet Mount |
| Color | Black / Matte Black |
| Displays Supported | 1 |
| Maximum Screen Size | 34 inches |
| Minimum Load Capacity | 4 lb (1.8 kg) |
| Maximum Load Capacity | 22 lb (10 kg) |
| VESA Mounting Interface | 75 × 75 mm, 100 × 100 mm |
| Tilt | -15° to +70° |
| Pan | 360° |
| Rotation | 360° |
| Height Adjustment | 13 in (33 cm) |
| Maximum Extension | 22 in (56 cm) |
| Pole Height | 12 in (30.4 cm) |
| Mounting Type | Grommet |
| Grommet Hole Diameter | 0.4–2 in (10–50 mm) |
| Material | Aluminum |
| Cable Management | Integrated |
| Rotation Stop | Yes |
| Motion Technology | Constant Force™ |
| Warranty | 10 years |
FAQs
How many monitors does the Ergotron 45-709-292 support?
The 45-709-292 supports one monitor.
What is the maximum supported monitor weight?
The arm supports displays up to 22 lb (10 kg), with a minimum supported display weight of 4 lb (1.8 kg).
What VESA patterns are supported?
The monitor pivot supports VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
What makes the 45-709-292 different from the standard LX Pro desk arm?
The 45-709-292 is the tall-pole grommet configuration, using a 12-inch (30.4 cm) pole and a grommet desk mount.
What adjustment range does the arm provide?
The arm provides up to 13 inches of height adjustment, 22 inches of extension, 360° pan, 360° rotation, and a -15° to +70° tilt range.
