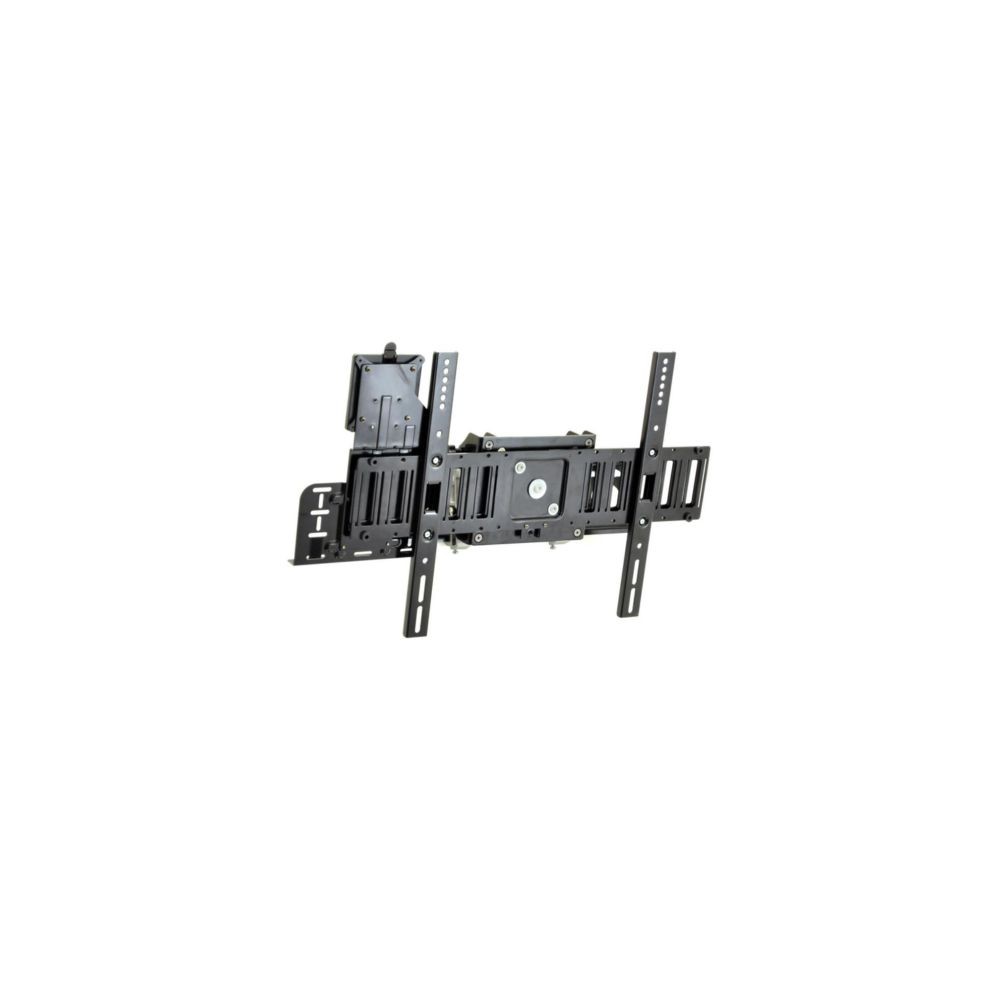

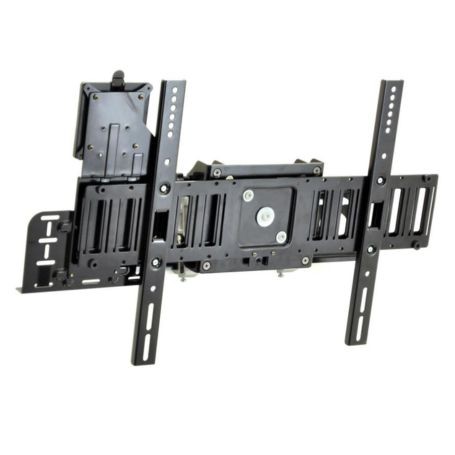

The Ergotron 60-600-009 SIM90 Signage Integration Mount is an all-in-one wall mounting solution designed for digital signage installations. It combines display mounting, mini PC attachment, and cable management in an integrated system, helping create a clean and professional installation for commercial displays and information screens.
Key Features
- Portrait-to-landscape rotation: Rotate a compatible display through 90 degrees without removing it from the mount.
- Adjustable forward tilt: Provides up to 15 degrees of forward tilt to help position the display for viewing.
- Integrated mini PC mounting: Supports compatible VESA-mounted thin clients or mini PCs behind the display.
- Organized cable management: Helps conceal and manage cables, power connections, and related equipment.
- Security features: Includes security fasteners designed to help deter unauthorized display removal.
Integrated Digital Signage Solution
The SIM90 combines display mounting and supporting hardware into one integrated solution. It is suitable for commercial digital signage, informational displays, and other installations where a tidy appearance and flexible screen orientation are important.
The display can be rotated between portrait and landscape orientations without taking it off the mount. The available tilt may be restricted when the display is in portrait orientation. Rotation also depends on the display's content software and graphics hardware supporting the selected orientation.
Display and Mini PC Compatibility
The mount is designed for displays approximately 32 inches and larger, with a maximum display weight of 105 lb (47.6 kg). The display mounting pattern must match the supported mounting-hole configurations.
The integrated computer bracket accommodates a compatible VESA 75 × 75 mm or 100 × 100 mm mini PC or thin client measuring up to 13.5 × 10 × 2.6 inches (34.3 × 25.4 × 6.6 cm) and weighing up to 7 lb (3.2 kg). The power brick may weigh up to 3 lb (1.4 kg).
The complete system has a maximum load capacity of 115 lb (52.2 kg), allocated as follows: 105 lb (47.6 kg) for the display, 7 lb (3.2 kg) for the computer, and 3 lb (1.4 kg) for the power brick and cables. Each component must remain within its individual limit.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 60-600-009 |
|---|
| Product Type | Digital Signage Integration Wall Mount |
|---|
| Product Series | SIM90 |
|---|
| Color | Black |
|---|
| Mounting Type | Wall mount |
|---|
| Recommended Display Size | 32 inches and larger |
|---|
| Maximum Display Weight | 105 lb (47.6 kg) |
|---|
| Total System Capacity | 115 lb (52.2 kg) |
|---|
| Tilt | 0–15° forward |
|---|
| Display Rotation | 90° between portrait and landscape |
|---|
| Computer Mounting | VESA 75 × 75 mm or 100 × 100 mm |
|---|
| Maximum Computer Dimensions | 13.5 × 10 × 2.6 in (34.3 × 25.4 × 6.6 cm) |
|---|
| Maximum Computer Weight | 7 lb (3.2 kg) |
|---|
| Maximum Power Brick Weight | 3 lb (1.4 kg) |
|---|
| Display Mounting Patterns | Supported horizontal spacing includes 200, 300, 400, 440, 500, and 600 mm; vertical spacing depends on the mounting pattern |
|---|
| Wall Clearance | Approximately 4.8 in (12 cm) |
|---|
| Mounting Hardware | Hardware for wood studs with 16-inch centers or concrete walls |
|---|
| Package Contents | Wall and display brackets, quick-release VESA computer/power-brick bracket, and hardware fastener kit |
|---|
| Shipping Dimensions | 13.25 × 12 × 28.5 in (33.7 × 30.5 × 72.4 cm) |
|---|
| Shipping Weight | 24 lb (approximately 11 kg) |
|---|
| GTIN / UPC | 00698833011203 |
|---|
| Warranty | 5 years |
|---|
Frequently Asked Questions
What is the Ergotron 60-600-009 used for?
It is an integrated wall mounting system for digital signage displays, with provisions for mounting a compatible mini PC and organizing cables.
Can the display switch between portrait and landscape?
Yes. The mount allows 90-degree rotation without removing the display. The display's software and graphics hardware must support the intended orientation.
What is the maximum display weight?
The display can weigh up to 105 lb (47.6 kg). The total system capacity is 115 lb (52.2 kg), with separate limits for the computer and power brick.
Can a mini PC be mounted behind the display?
Yes. The included computer bracket supports compatible VESA 75 × 75 mm or 100 × 100 mm devices within the specified weight and size limits.
Does the mount include installation hardware?
Yes. The kit includes wall and display brackets, the computer/power-brick bracket, and mounting fasteners. Confirm that the supplied hardware is appropriate for the intended wall construction.
DC Supplies Product Note
Before ordering, verify the display's weight and mounting-hole pattern, as well as the dimensions and weight of the mini PC and power brick. Ensure the wall structure can support the complete installation. The maximum load limits for the display and attached equipment must be observed separately.
