Overview

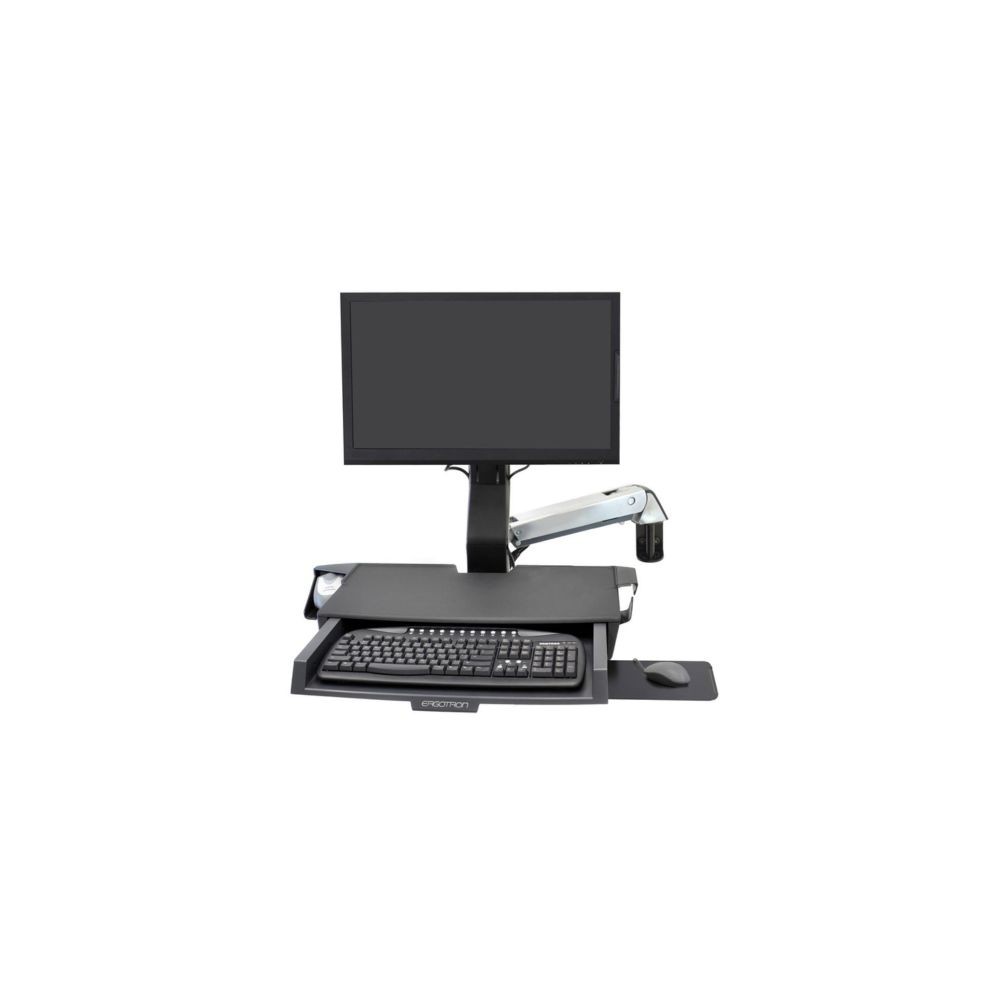

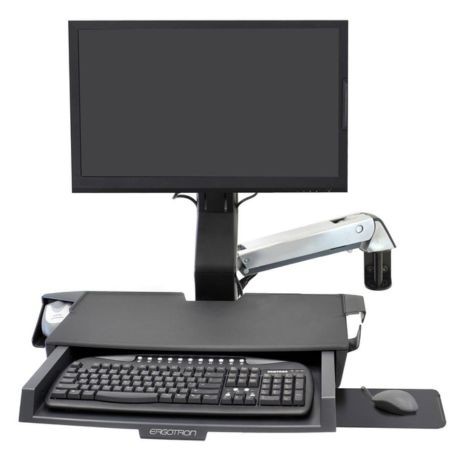

The Ergotron 45-260-216 StyleView Sit-Stand Combo Arm is a wall-mounted workstation arm designed to position a monitor and keyboard for seated or standing use. Its integrated adjustment mechanism moves the monitor and keyboard together while also providing independent LCD height adjustment.
Sit-Stand Adjustment
The workstation provides 20 inches (51 cm) of shared height adjustment for the monitor and keyboard, plus an additional 5 inches (13 cm) of independent LCD adjustment. This provides up to 25 inches (64 cm) of total LCD height adjustment.
Monitor Support and Positioning
The arm supports displays up to 24 inches with a standard load range of 6–18 lb (2.7–8.2 kg). With the tilt and lift lock-out features engaged, displays up to 25 lb (11.4 kg) can be accommodated. The monitor provides 30° total tilt, 360° pan, and 90° rotation for landscape or portrait positioning.
Keyboard and Peripheral Workspace
The integrated workstation includes a keyboard tray with mouse tray, wrist rest, mouse holder, and barcode scanner holder. The combined keyboard, mouse, and scanner load capacity is 4 lb (1.8 kg).
Wall Mounting and Reach
The arm is designed for wall-mounted installation and can extend up to approximately 39.75 inches (101 cm) from the wall. It can fold back to approximately 12 inches (30.5 cm), providing a compact position when the workstation is not extended.
VESA Compatibility
The LCD mount uses VESA FDMI MIS-D with 75 x 75 mm and 100 x 100 mm mounting patterns. The height-adjustable monitor mount is integrated into the StyleView workstation arm.
Cable Management
Integrated cable management helps route cables along the workstation arm as the monitor and keyboard are repositioned.
Key Features
- Supports displays up to 24 inches with 6–18 lb standard capacity
- Provides 20 inches of shared adjustment plus 5 inches of independent LCD adjustment
- Offers 360° pan and 90° monitor rotation
- Includes integrated keyboard, mouse, wrist-rest, and scanner workspace
- Extends approximately 39.75 inches from the wall
Applications
The 45-260-216 is suited to wall-mounted workstation installations where a monitor and keyboard need to move together between seated and standing positions. Its integrated accessory holders support workflows that require regular access to a mouse, keyboard, or barcode scanner.
DC Supplies Product Note
For a complete installation, verify whether a wall track, worksurface, CPU holder, or additional extension is required for the intended workstation layout. The 45-260-216 is the standalone StyleView Combo Arm configuration rather than a complete system package.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-260-216 |
| Product Type | StyleView Sit-Stand Combo Arm |
| Color | White |
| Display Configuration | Single monitor |
| Maximum Display Size | 24 inches |
| Standard Display Capacity | 6–18 lb (2.7–8.2 kg) |
| Maximum Display Capacity | 25 lb (11.4 kg) with tilt and lift lock-out engaged |
| Shared Height Adjustment | 20 inches (51 cm) |
| Independent LCD Adjustment | 5 inches (13 cm) |
| Maximum LCD Height Adjustment | 25 inches (64 cm) |
| Monitor Tilt | 30° total; 25° up / 5° down |
| Monitor Pan | 360° |
| Monitor Rotation | 90° |
| Maximum Extension | 39.75 inches (101 cm) |
| Folded Depth | Approximately 12 inches (30.5 cm) |
| VESA Standard | VESA FDMI MIS-D |
| VESA Patterns | 75 x 75 mm and 100 x 100 mm |
| Keyboard / Mouse / Scanner Capacity | 4 lb (1.8 kg) |
| Mounting Type | Wall mount |
| Cable Management | Integrated |
| Optional Extender | 45-261-216 |
| Warranty | 5 years |
Package Contents
- StyleView Sit-Stand Combo Arm
- Height-adjustable LCD mount
- Integrated keyboard tray
- Mouse tray
- Wrist rest
- Mouse holder
- Barcode scanner holder
- Handle
- Wall-mounting hardware
- VESA monitor mounting hardware
- Cable-management accessories
FAQs
What is the Ergotron 45-260-216?
It is a white StyleView Sit-Stand Combo Arm designed for wall-mounted monitor and keyboard positioning.
What monitor size does it support?
The specified display size is up to 24 inches, with a standard capacity of 6–18 lb. Up to 25 lb can be supported when the tilt and lift lock-out features are engaged.
How much height adjustment is available?
The monitor and keyboard share 20 inches of adjustment, with another 5 inches of independent LCD adjustment, providing up to 25 inches of LCD height adjustment.
Which VESA patterns are supported?
The monitor mount supports VESA MIS-D patterns of 75 x 75 mm and 100 x 100 mm.
Does it include a keyboard tray?
Yes. The StyleView Combo Arm includes an integrated keyboard tray and mouse tray, along with wrist-rest, mouse-holder, and barcode-scanner-holder components.
Can additional reach be added?
Yes. The compatible Ergotron 45-261-216 StyleView Sit-Stand Combo Extender can be used when additional arm reach is required.
