The Ergotron 97-780-194 StyleView Scanner Shelf provides a dedicated mounting platform for a wireless barcode scanner base in compatible workstation and medical cart environments. Its compact metal design helps keep scanning equipment within easy reach while preserving valuable workspace. The shelf can attach to a compatible cart worksurface, the rear of the cart, or an Ergotron Wall Track system with the appropriate mounting hardware.
Key Features
- Convenient scanner access: Positions a compatible wireless scanner base within easy reach during routine workstation tasks.
- Compact platform: The 8 × 4-inch (203 × 102 mm) shelf provides a dedicated space for scanner equipment.
- Durable metal construction: Designed for regular use in workstation and healthcare environments.
- Flexible mounting: Supports installation on compatible StyleView cart worksurfaces or at the rear of the cart.
- Scanner retention options: Includes hook-and-loop material and a strap to help secure a compatible scanner base.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-780-194 |
|---|
| Product Type | Scanner mounting shelf |
|---|
| Product Series | StyleView |
|---|
| Color | Silver |
|---|
| Material | Metal |
|---|
| Shelf Width | 8 inches (203 mm) |
|---|
| Shelf Depth | 4 inches (102 mm) |
|---|
| Maximum Load Capacity | 2.2 lb (1 kg) |
|---|
| Mounting Options | Compatible cart worksurface or rear T-slot; Wall Track installation requires a separate bracket |
|---|

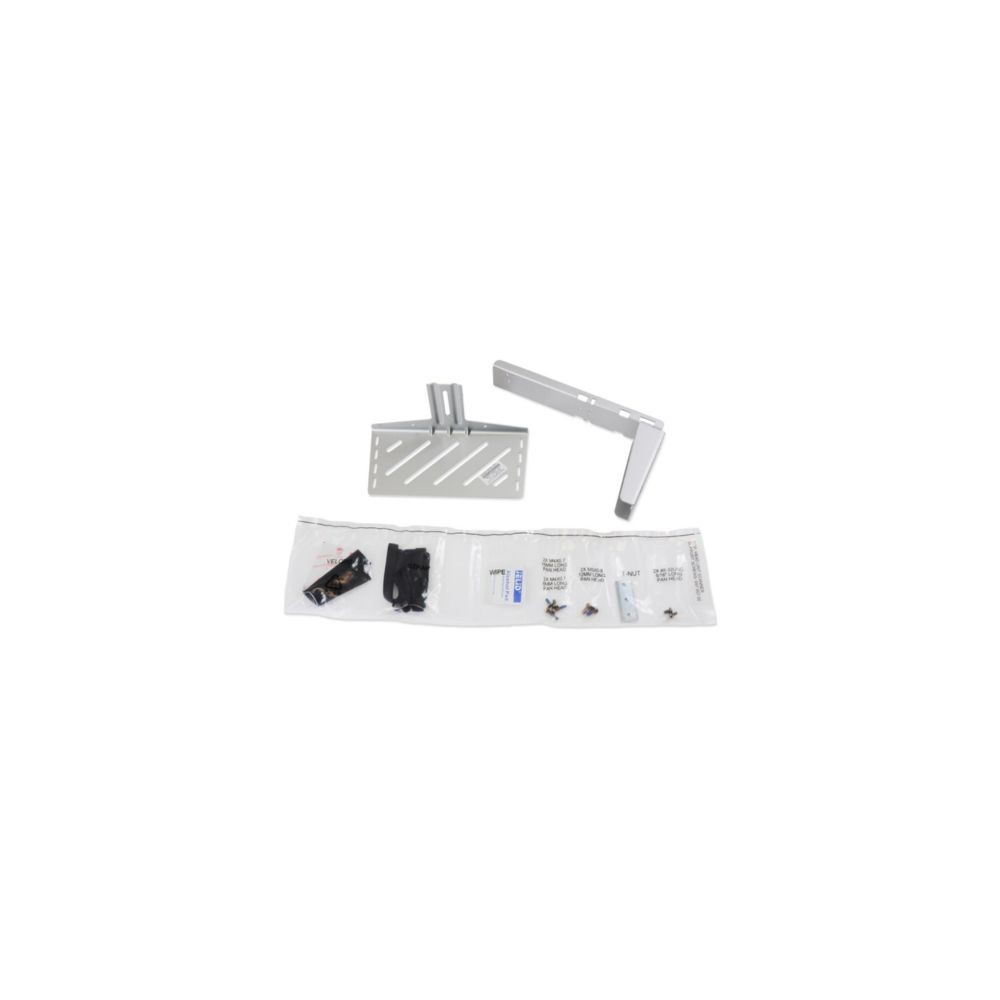

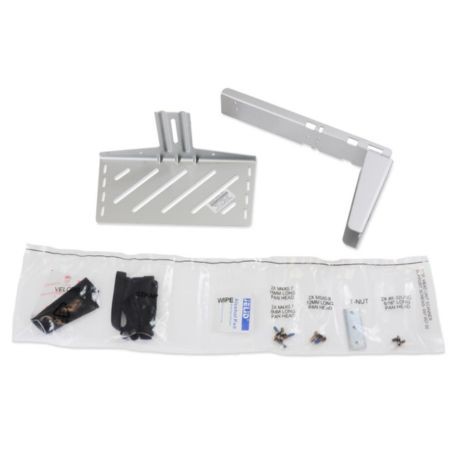

| Included Components | Tray, bracket, hook-and-loop material, strap, and mounting hardware |
|---|
| Wall Track Bracket | Ergotron 97-091 Track Mount Bracket Kit, sold separately |
|---|
| UPC | 698833039535 |
|---|
| Warranty | 5 years, according to published product specifications |
|---|
Designed for Healthcare and Mobile Workstations
The StyleView Scanner Shelf helps organize scanning equipment on compatible mobile workstations. Keeping the scanner base in a designated location can make it easier to access during repeated scanning tasks. Its compact footprint is particularly useful where workstation space is limited.
Compatibility and Installation
The shelf is designed for compatible Ergotron StyleView carts and can also be integrated with an Ergotron Wall Track system. Wall Track installation requires the separately purchased 97-091 Track Mount Bracket Kit. Check your cart model and mounting configuration before ordering.
Installing the shelf affects the available combined LCD and CPU load capacity on certain StyleView carts. Consult the specifications for your exact cart model before adding accessories.
DC Supplies Product Note
Before purchasing, confirm compatibility with your cart, the scanner base dimensions, and the total equipment weight. The shelf supports up to 2.2 lb (1 kg). The scanner and any separately required Wall Track bracket are not included unless explicitly stated in the order.
Frequently Asked Questions
1. What is the Ergotron 97-780-194 used for?
It provides a mounting shelf for a compatible wireless barcode scanner base on a workstation or medical cart.
2. What are the shelf dimensions?
The shelf measures 8 inches wide by 4 inches deep (approximately 203 × 102 mm).
3. How much weight can the shelf support?
The maximum load capacity is 2.2 lb (1 kg).
4. Can this shelf be installed on an Ergotron Wall Track?
Yes. Wall Track installation requires the separately purchased Ergotron 97-091 Track Mount Bracket Kit.
5. What is included with the shelf?
The listed components include the tray, mounting bracket, hook-and-loop material, strap, and mounting hardware.
6. Is the scanner included?
No. The product is the scanner shelf accessory. The scanner and scanner base must be purchased separately.
