Overview

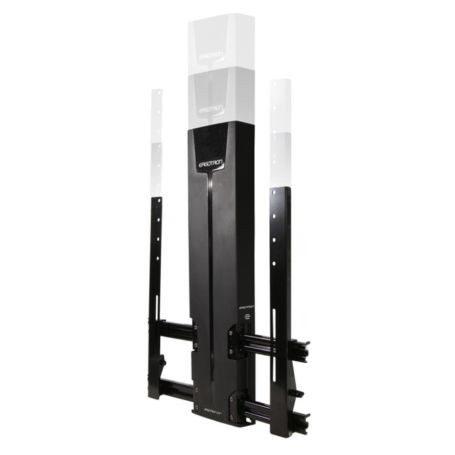

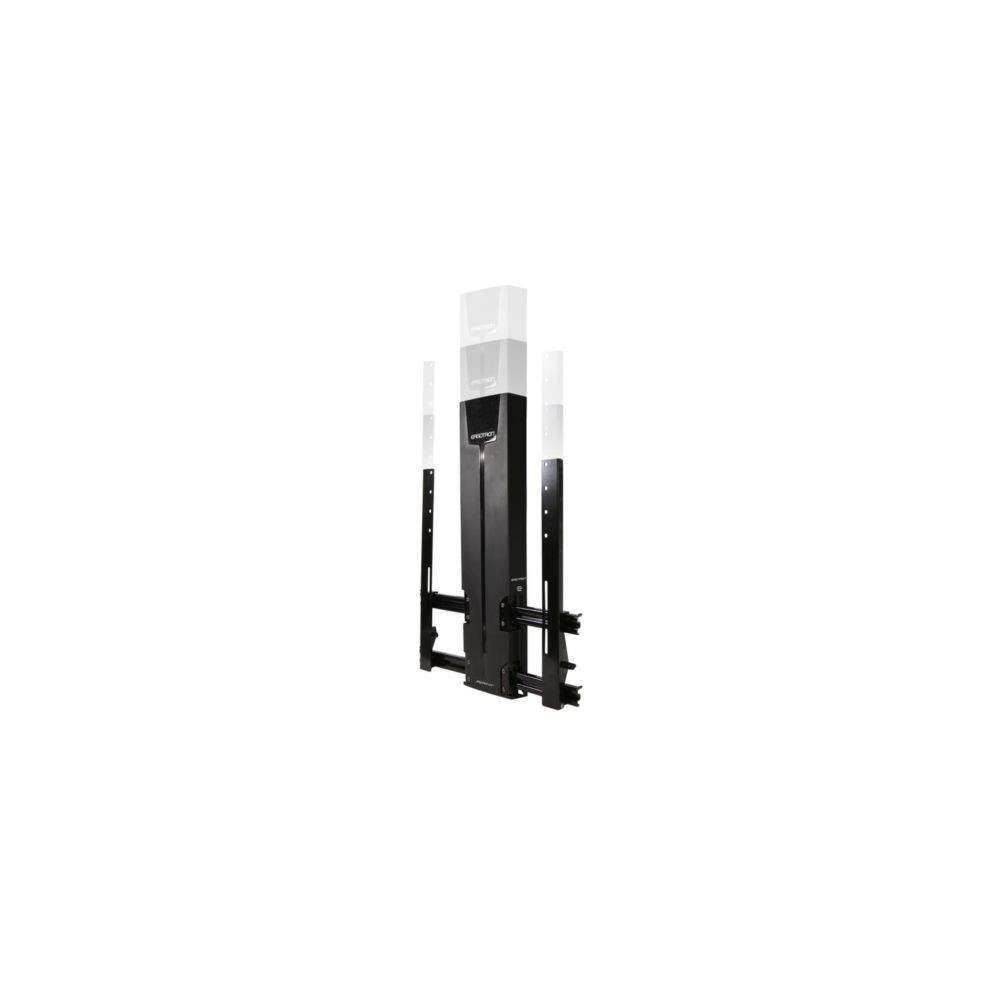

The Ergotron Glide Wall Mount HD is a heavy-duty wall mount designed for compatible televisions and large displays. Its low-profile design keeps the display close to the wall while allowing smooth vertical adjustment for comfortable viewing from seated or standing positions.
Height Adjustment and Viewing Comfort
The mount provides up to 18 inches (45.7 cm) of vertical movement, allowing users to raise or lower the display as needed. Ergotron Constant Force technology enables smooth positioning with a light touch, while the tilt mechanism provides up to 10 degrees of adjustment to help reduce screen glare.
Display Compatibility
The Glide Wall Mount HD is intended for displays approximately 30–55 inches in size, with a supported weight range of 20–40 lb (9.1–18.1 kg). Screen-size guidance is approximate; the display's actual weight and VESA mounting-hole pattern must meet the mount's specifications.
The mount supports VESA MIS-E and MIS-F mounting patterns. Compatible mounting-hole spacing ranges from 200 to 400 mm horizontally and 100 to 400 mm vertically. The back of the display sits approximately 2 inches (5 cm) from the wall.
Key Features
- Supports compatible displays weighing 20–40 lb (9.1–18.1 kg).
- Provides up to 18 inches (45.7 cm) of vertical adjustment.
- Offers up to 10 degrees of tilt for viewing-angle adjustment.
- Uses Constant Force technology for smooth display positioning.
- Low-profile design keeps the display approximately 2 inches from the wall.
Installation and Included Components
The package includes a low-profile lift module, mounting template, tilt brackets, installation and mounting hardware, and cable-management hardware. Before installation, verify the wall structure, display weight and VESA hole spacing to ensure compatibility.
Typical Applications
- Meeting and conference rooms
- Shared presentation spaces
- Home and office viewing areas
- Displays used by people in seated or standing positions
DC Supplies Product Note
Confirm the display's weight and mounting-hole dimensions before ordering. The stated screen-size range is a guideline rather than the sole compatibility requirement. Installation should follow Ergotron's instructions and use suitable wall attachment points.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 61-061-085 |
|---|
| Product Type | Height-adjustable wall mount for displays |
|---|
| Product Series | Glide Wall Mount HD |
|---|
| Colour | Black |
|---|
| Recommended Display Size | Approximately 30–55 inches |
|---|
| Display Weight Capacity | 20–40 lb (9.1–18.1 kg) |
|---|
| Vertical Adjustment | Up to 18 inches (45.7 cm) |
|---|
| Tilt | Up to 10 degrees |
|---|
| VESA Compatibility | MIS-E and MIS-F |
|---|
| Horizontal Mounting-Hole Spacing | 200–400 mm |
|---|
| Vertical Mounting-Hole Spacing | 100–400 mm |
|---|
| Distance from Wall | Approximately 2 inches (5 cm) from wall to the back of the display |
|---|
| Motion Technology | Ergotron Constant Force |
|---|
| Included Components | Low-profile lift module, mounting template, tilt brackets, installation and mounting hardware, and cable-management hardware |
|---|
| Warranty | 5 years |
|---|
| GTIN | 00698833035131 |
|---|
Frequently Asked Questions
1. Which display sizes are suitable for this wall mount?
The recommended display size is approximately 30–55 inches. Compatibility also depends on display weight and VESA mounting-hole spacing.
2. What is the maximum supported display weight?
The specified weight range is 20–40 lb (9.1–18.1 kg). The display must remain within this limit.
3. How far can the display move vertically?
The mount allows up to 18 inches (45.7 cm) of vertical adjustment.
4. Does the mount support tilt adjustment?
Yes. The display can tilt up to 10 degrees to help improve the viewing angle and reduce glare.
5. Which VESA patterns are compatible?
The mount supports MIS-E and MIS-F patterns with horizontal spacing of 200–400 mm and vertical spacing of 100–400 mm.
6. What is included with the product?
The package includes the lift module, mounting template, tilt brackets, installation and mounting hardware, and cable-management hardware.
