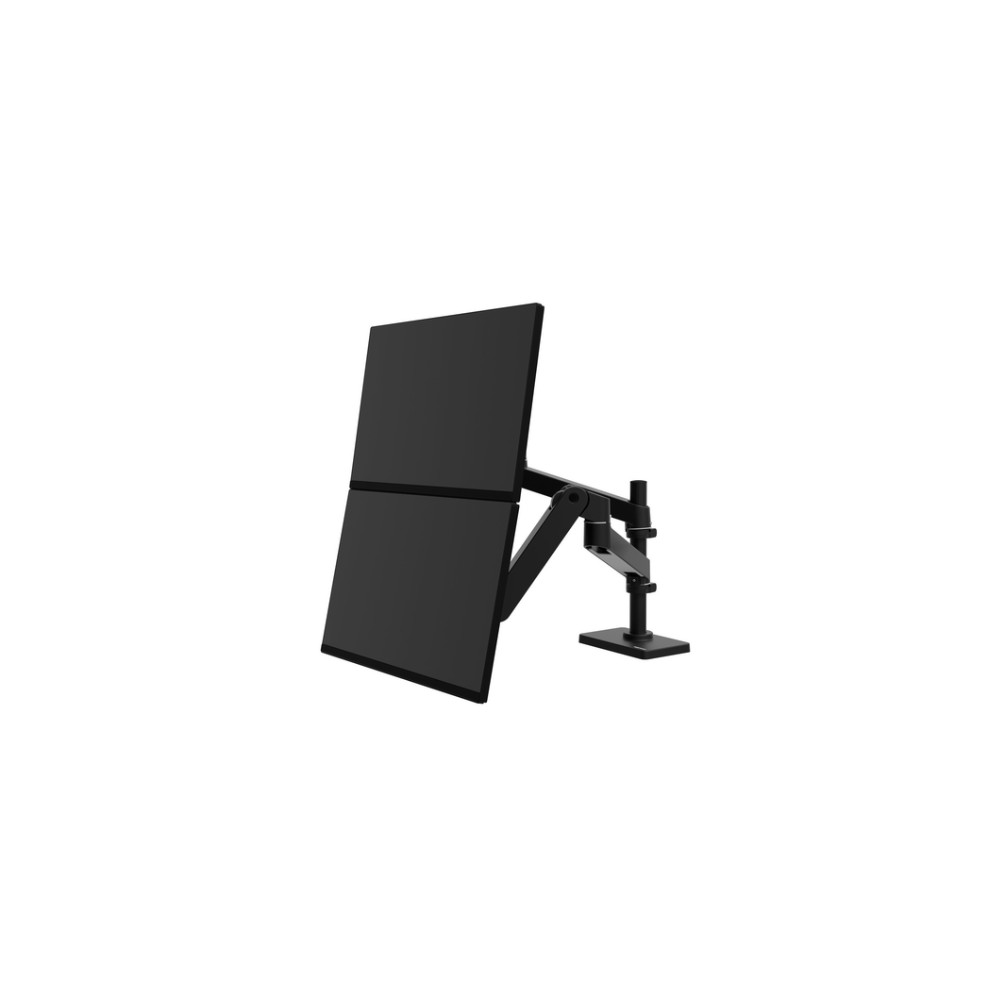

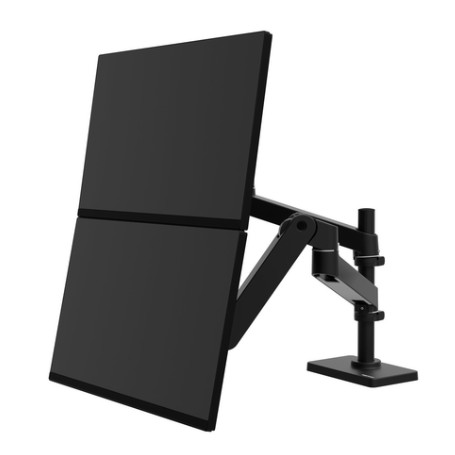

Ergotron 45-710-292 – LX Pro Dual Stacking Arm Grommet Mount
Overview
The Ergotron 45-710-292 is an LX Pro Dual Stacking Arm with a grommet mount for positioning two monitors on a desk. The black dual-monitor configuration uses Ergotron Constant Force™ technology and provides independent adjustment of the displays for ergonomic workstation positioning.
Technical Information
The arm supports a combined display load from 7.94 to 44.09 lb (3.6 to 20.0 kg) and accommodates two displays. Each display uses a VESA FDMI MIS-D interface with 75 × 75 mm or 100 × 100 mm mounting patterns.
The arm provides up to 33 cm of lift, 360° pan, 360° rotation, and an 85° tilt range. The articulated structure extends up to 25 inches (64 cm) and incorporates integrated cable management and a rotation stop.
Compatibility
The 45-710-292 supports two compatible LCD monitors or displays with VESA 75 × 75 mm or 100 × 100 mm mounting patterns. The maximum supported display size is 27 inches, with total supported display weight limited to 44.09 lb (20.0 kg).
The grommet mount accommodates desk mounting holes from 0.4 to 2 inches (10 to 50 mm) in diameter and up to 2.3 inches (57 mm) in desk thickness.
Key Features
- Dual stacking configuration for two monitors
- 20 kg (44.09 lb) total load capacity with a 3.6 kg minimum load
- Grommet desk mounting with 10–50 mm hole compatibility
- 360° pan and rotation with up to 33 cm of lift
- VESA 75 × 75 mm and 100 × 100 mm support with integrated cable management
Applications
The LX Pro Dual Stacking Arm is suited to office workstations, hot-desking environments, trading desks, design workstations, control rooms, and other desktop applications requiring two vertically arranged monitors with adjustable positioning.
DC Supplies Product Note
Confirm both monitor weights and VESA mounting patterns before installation. The 45-710-292 has a combined load range of 3.6 to 20.0 kg and is designed specifically for two-display stacking with a grommet desk mount.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-710-292 |
| Product Type | Dual Monitor Mounting Arm |
| Series | LX Pro |
| Model | LX Pro Dual Stacking Arm, Grommet Mount |
| Color | Black |
| Displays Supported | 2 |
| Maximum Display Size | 27 inches |
| Minimum Load Capacity | 7.94 lb (3.6 kg) |
| Maximum Load Capacity | 44.09 lb (20.0 kg) |
| VESA Mounting Interface | 75 × 75 mm, 100 × 100 mm |
| Tilt | 85° |
| Pan | 360° |
| Rotation | 360° |
| Lift | 13 in (33 cm) |
| Maximum Extension | 25 in (64 cm) |
| Grommet Hole Diameter | 0.4–2 in (10–50 mm) |
| Maximum Desk Thickness | 2.3 in (57 mm) |
| Mounting Surface | Desk |
| Cable Management | Integrated |
| Technology | Constant Force™ |
| Warranty | 10 years |
FAQs
How many monitors does the Ergotron 45-710-292 support?
The LX Pro Dual Stacking Arm supports two monitors in a vertically stacked configuration.
What is the maximum supported monitor weight?
The total supported load is up to 44.09 lb (20.0 kg), with a minimum supported load of 7.94 lb (3.6 kg).
Which VESA patterns are supported?
The monitor pivots support VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
How does the 45-710-292 attach to a desk?
This exact model uses a grommet mount. It supports desk holes from 10 to 50 mm in diameter and desks up to 57 mm thick.
What adjustment range does the LX Pro Dual Stacking Arm provide?
The arm provides up to 33 cm of lift, 360° pan, 360° rotation, and an 85° tilt range, with extension up to 64 cm.
