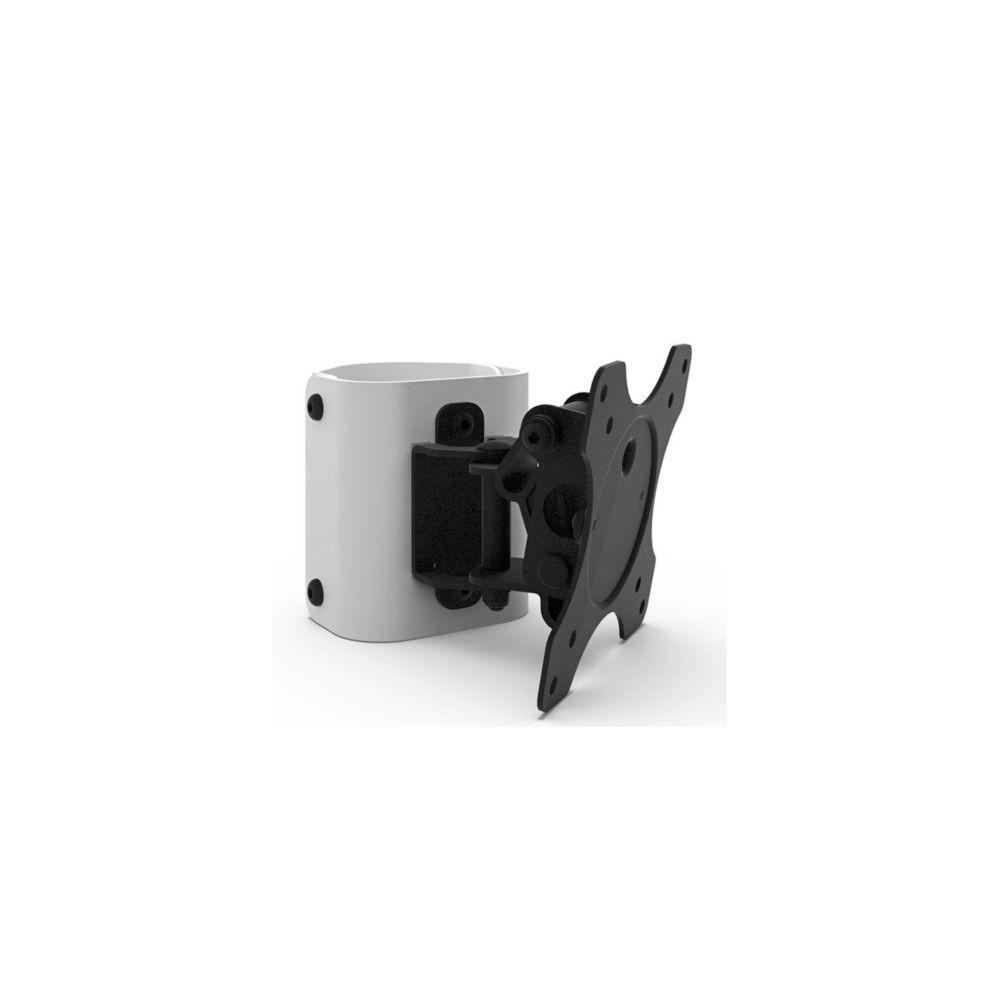

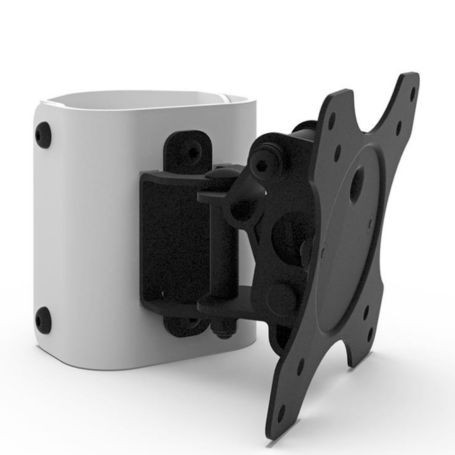

The Ergotron ZOMSCG Zido Single Monitor Mount is designed to integrate one monitor with a compatible Ergotron Zido cart. Supporting displays weighing up to 40 lbs (18.2 kg), it provides adjustable positioning to help users achieve a suitable viewing angle in professional workspaces.
This mount can be installed directly on a compatible Zido Pole Cart or used with the ZET26CG Monitor Tube accessory. The mount can be positioned at the desired height on the tube, which features mounting holes at 1-inch intervals. Its pan and tilt adjustments provide flexibility for monitor positioning.
Key Features
- Single-monitor support: Designed to mount one compatible flat-panel display.
- 40 lb load capacity: Supports a monitor weighing up to 40 lbs (18.2 kg).
- Adjustable positioning: Provides up to 25 degrees of pan and +10 to -3 degrees of tilt.
- Multiple VESA patterns: Supports compatible 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm mounting patterns.
- Zido system compatibility: Designed for compatible Zido Pole Carts or use with the ZET26CG Monitor Tube.
Compatibility and Installation
The ZOMSCG is intended for compatible Ergotron Zido mounting configurations. It can be installed on a Zido Pole Cart or combined with the ZET26CG Monitor Tube to mount a display above the cart worksurface.
Before ordering, check the monitor's weight and VESA mounting pattern, as well as the compatibility of your existing cart or tube. The ZET26CG Monitor Tube is a separate accessory and is not included as part of the ZOMSCG mount.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | ZOMSCG |
|---|
| Product Type | Single Monitor Mount |
|---|
| Product Family | Zido |
|---|
| Number of Displays Supported | 1 |
|---|
| Maximum Load Capacity | 40 lbs (18.2 kg) |
|---|
| Pan Adjustment | 25 degrees |
|---|
| Tilt Adjustment | +10 to -3 degrees |
|---|
| VESA MIS-D | 75 x 75 mm and 100 x 100 mm |
|---|
| VESA MIS-E | 200 x 100 mm |
|---|
| VESA MIS-F | 200 x 200 mm only |
|---|
| Colour | Cool Grey with black components |
|---|
| Compatible Mounting System | Ergotron Zido Pole Cart or ZET26CG Monitor Tube |
|---|
| Package Contents | Monitor pivot, mounting bracket and mounting hardware |
|---|
| Warranty | 5 years |
|---|
DC Supplies Product Note
Confirm that your monitor meets the mount's weight and VESA requirements before purchase. The ZET26CG Monitor Tube is required when installing this mount in a configuration that uses the extension tube and is sold separately.
Frequently Asked Questions
How many monitors does the ZOMSCG support?
The ZOMSCG is designed to support one monitor weighing up to 40 lbs (18.2 kg).
Which VESA mounting patterns are supported?
Supported patterns include 75 x 75 mm, 100 x 100 mm, 200 x 100 mm and 200 x 200 mm. Verify your monitor's mounting pattern before ordering.
Can I adjust the monitor's viewing angle?
Yes. The mount provides up to 25 degrees of pan and tilt adjustment from +10 to -3 degrees.
Does the mount fit the ZET26CG Monitor Tube?
Yes. The ZOMSCG is designed for installation on the compatible Ergotron ZET26CG Monitor Tube, which is sold separately.
Is the monitor tube included?
No. The ZOMSCG is the monitor mount assembly. The ZET26CG extension tube must be purchased separately when needed for your configuration.
