Ergotron 90-011 Wall Track Mounting Kit for Hollow Walls
Overview
The Ergotron 90-011 is a Wall Track Mounting Kit designed for installing compatible Ergotron Wall Track systems on hollow wall constructions. The kit provides the fasteners required to secure Wall Track where conventional stud mounting is not available. Ergotron specifies use with drywall, tile, concrete block, plaster and similar hollow-wall materials, subject to the required minimum material thickness.
Technical Information

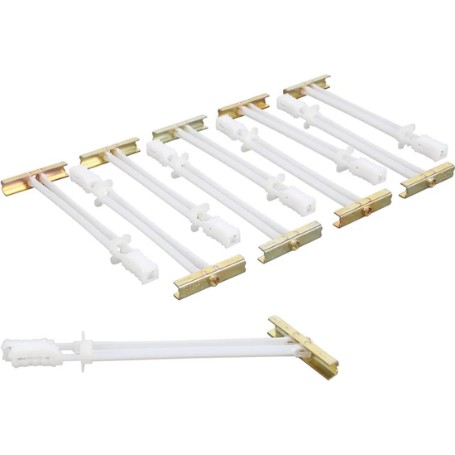

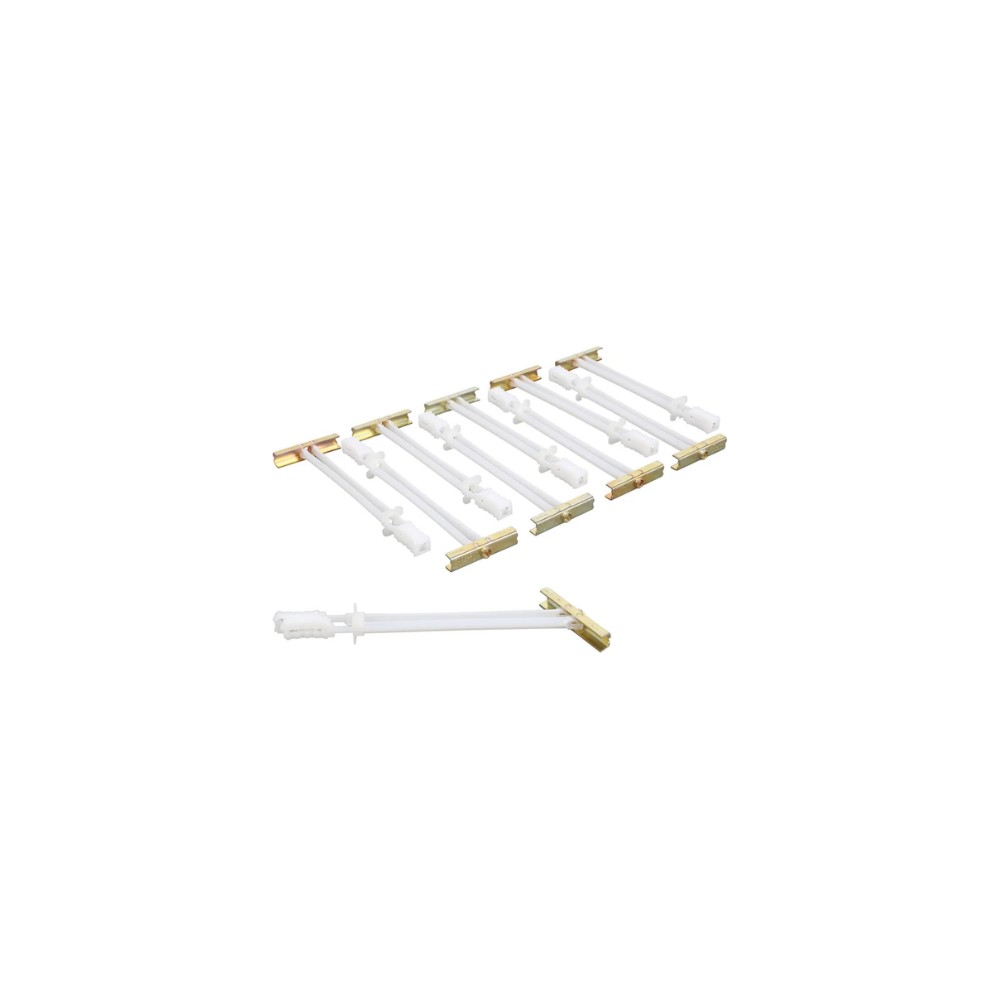

The 90-011 kit includes ten Phillips 1/4"-20 x 2" screw/toggle anchors. Ergotron specifies a minimum mounting-material thickness of 5/8 inch (16 mm). The fasteners can be used alone where no stud is available or together with stud-mount wood screws when additional support is required for heavy-duty applications.
Compatibility
The 90-011 is intended for mounting compatible Ergotron Wall Track products to hollow walls. Compatible Wall Track products listed by Ergotron include the 10-inch, 26-inch, 34-inch and 42-inch Wall Track configurations, as well as compatible Wall Track-based mounting systems. The Wall Track rail and separate stud-mount screws are not included with this kit.
Key Features
- Designed for Ergotron Wall Track installation on hollow walls
- Includes ten Phillips 1/4"-20 x 2" screw/toggle anchors
- Supports installation where no wall stud is available
- Suitable for specified hollow-wall materials including drywall, tile, concrete block and plaster
- Requires minimum mounting material thickness of 5/8 inch (16 mm)
Applications
The Ergotron 90-011 is intended for commercial, healthcare, office and workstation installations where Ergotron Wall Track must be secured to a hollow wall. It is particularly useful when a conventional stud-mounting location is unavailable.
DC Supplies Product Note
The 90-011 is a mounting hardware accessory and does not include Wall Track, monitor arms, brackets or other workstation components. Final installation suitability depends on the wall construction and the loads applied to the completed Wall Track assembly. Follow Ergotron installation requirements and applicable building and mounting practices.
Specifications
| Brand | Ergotron |
|---|
| Part Number | 90-011 |
|---|
| Product Type | Wall Track Mounting Kit |
|---|
| Application | Hollow wall mounting |
|---|
| Included Fasteners | 10 Phillips 1/4"-20 x 2" screw/toggle anchors |
|---|
| Minimum Material Thickness | 5/8 in (16 mm) |
|---|
| Supported Wall Materials | Drywall, tile, concrete block, plaster and other specified hollow-wall constructions |
|---|
| Product Weight | 0.6 lb |
|---|
| Shipping Weight | 0.7 lb |
|---|
| Shipping Dimensions | 7.25 × 12 in (184 × 305 mm), self-mailer envelope |
|---|
| Warranty | 5 years |
|---|
| GTIN | 00698833000788 |
|---|
FAQs
What is the Ergotron 90-011?
The 90-011 is an Ergotron Wall Track Mounting Kit for securing compatible Wall Track to hollow walls.
What is included with the 90-011?
The kit includes ten Phillips 1/4"-20 x 2" screw/toggle anchors.
What wall thickness is required?
Ergotron specifies a minimum material thickness of 5/8 inch (16 mm).
Can the 90-011 be used without a wall stud?
Yes. Ergotron specifies that the fasteners can be used alone where no stud is available. They can also be used together with stud-mount wood screws for additional support in heavy-duty applications.
Does the 90-011 include Wall Track?
No. The 90-011 is the mounting hardware kit only. The Wall Track rail and other workstation components are separate products.
What is the warranty?
Ergotron specifies a five-year warranty for the 90-011.
