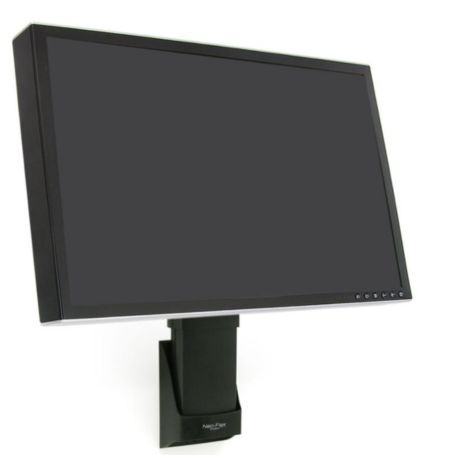

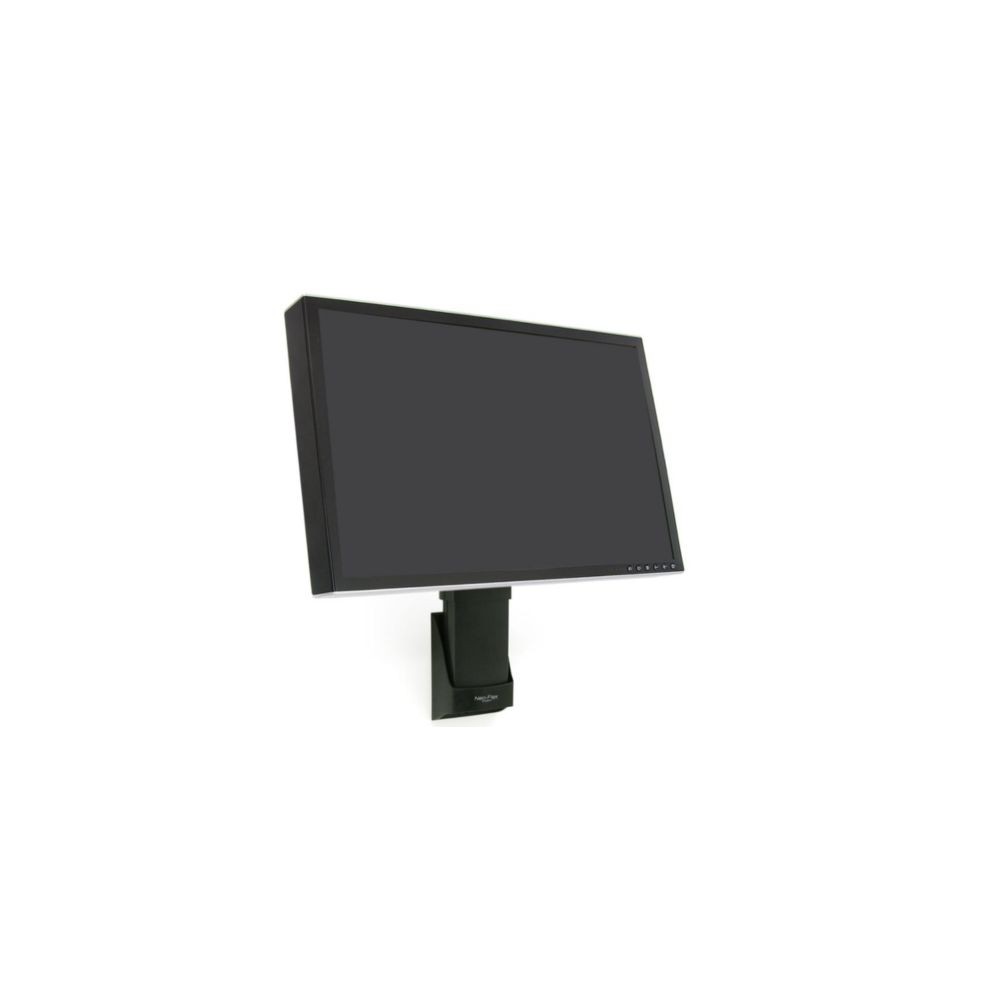

The Ergotron 60-577-195 Neo-Flex Wall Mount Lift is an adjustable wall mounting solution designed for compatible LCD monitors and displays. Its Constant Force lift-and-pivot technology allows users to reposition the screen smoothly, helping create a more comfortable and adaptable viewing experience in offices, clinics, laboratories, and other space-conscious environments.
With 5 inches (13 cm) of vertical adjustment, horizontal panning, adjustable tilt, and 90-degree screen rotation, this black monitor mount supports flexible display positioning without requiring a large desktop footprint.
Key Features
- Height adjustment: Provides 5 inches (13 cm) of vertical movement for more comfortable screen positioning.
- Constant Force technology: Enables smooth lift-and-pivot adjustment with minimal effort.
- Adjustable viewing angle: Supports up to 35 degrees of tilt and up to 70 degrees of panning, depending on display size and mounting position.
- Portrait and landscape rotation: Allows compatible displays to rotate through 90 degrees.
- Space-saving design: Keeps the display close to the wall, with a slim profile suitable for compact workspaces.
- Flexible mounting options: Designed for sturdy vertical surfaces and compatible Ergotron mounting systems.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 60-577-195 |
|---|
| Product Type | Height-adjustable monitor wall mount |
|---|
| Product Series | Neo-Flex |
|---|
| Product Name | Neo-Flex Wall Mount Lift |
|---|
| Color | Black |
|---|
| Supported Display Size | Up to 27 inches, approximate |
|---|
| Weight Capacity | 6–16 lb (2.7–7.2 kg) |
|---|
| Vertical Adjustment | 5 inches (13 cm) |
|---|
| Tilt Range | Up to 35 degrees |
|---|
| Pan Range | Up to 70 degrees |
|---|
| Rotation | 90 degrees |
|---|
| VESA Compatibility | 75 × 75 mm and 100 × 100 mm (MIS-D) |
|---|
| Product Dimensions | 16.5 × 4.25 × 3.63 inches (419 × 108 × 92 mm), in the lowest position |
|---|
| Product Weight | 1.9 kg (4.2 lb) |
|---|
| Shipping Dimensions | 18.3 × 5 × 5.6 inches (465 × 127 × 142 mm) |
|---|
| Shipping Weight | 2.7 kg (6 lb) |
|---|
| GTIN | 00698833004304 |
|---|
| Warranty | 3 years |
|---|
Mounting and Compatibility
The Neo-Flex Wall Mount Lift supports displays using VESA 75 × 75 mm or 100 × 100 mm mounting patterns. The supported display weight must remain within the 6–16 lb (2.7–7.2 kg) range. Screen size is a guideline; weight and mounting-hole compatibility are the primary selection criteria.
The mount attaches to a sturdy vertical surface. Where appropriate, installation into a wood stud is recommended. A separately purchased Ergotron Wall Track may be used in compatible installations to provide additional mounting flexibility. Compatibility with Command Post and pole mounting systems depends on the specific configuration.
Recommended Applications
- Office and home workstations
- Healthcare and clinical work areas
- Laboratories and technical workspaces
- Airports and other space-constrained environments
- Workstations requiring portrait or landscape display orientation
DC Supplies Product Note
Before ordering, confirm your monitor's weight and VESA mounting pattern. The mount supports displays weighing from 6 to 16 lb. Wall Track and other mounting accessories are sold separately unless explicitly included in the product package.
Frequently Asked Questions
What is the Ergotron 60-577-195?
It is the Ergotron Neo-Flex Wall Mount Lift, designed to provide adjustable positioning for compatible monitors.
How much vertical adjustment does it provide?
The mount provides 5 inches (13 cm) of vertical adjustment.
What is the maximum supported monitor weight?
The supported weight range is 6–16 lb (2.7–7.2 kg).
Which VESA patterns are compatible?
The mount supports VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
Can the monitor rotate into portrait orientation?
Yes. The mount supports 90-degree rotation, allowing compatible displays to switch between portrait and landscape orientations.
Does the product include a Wall Track?
No separate Wall Track should be assumed to be included. Check the package contents if you require a track-based installation.
What is the warranty period?
The manufacturer lists a three-year warranty for this model. Confirm regional warranty coverage with the seller.
