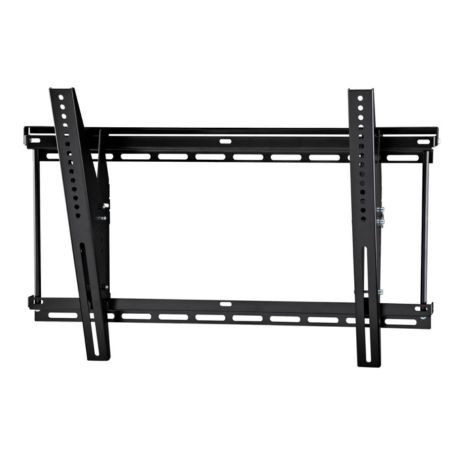

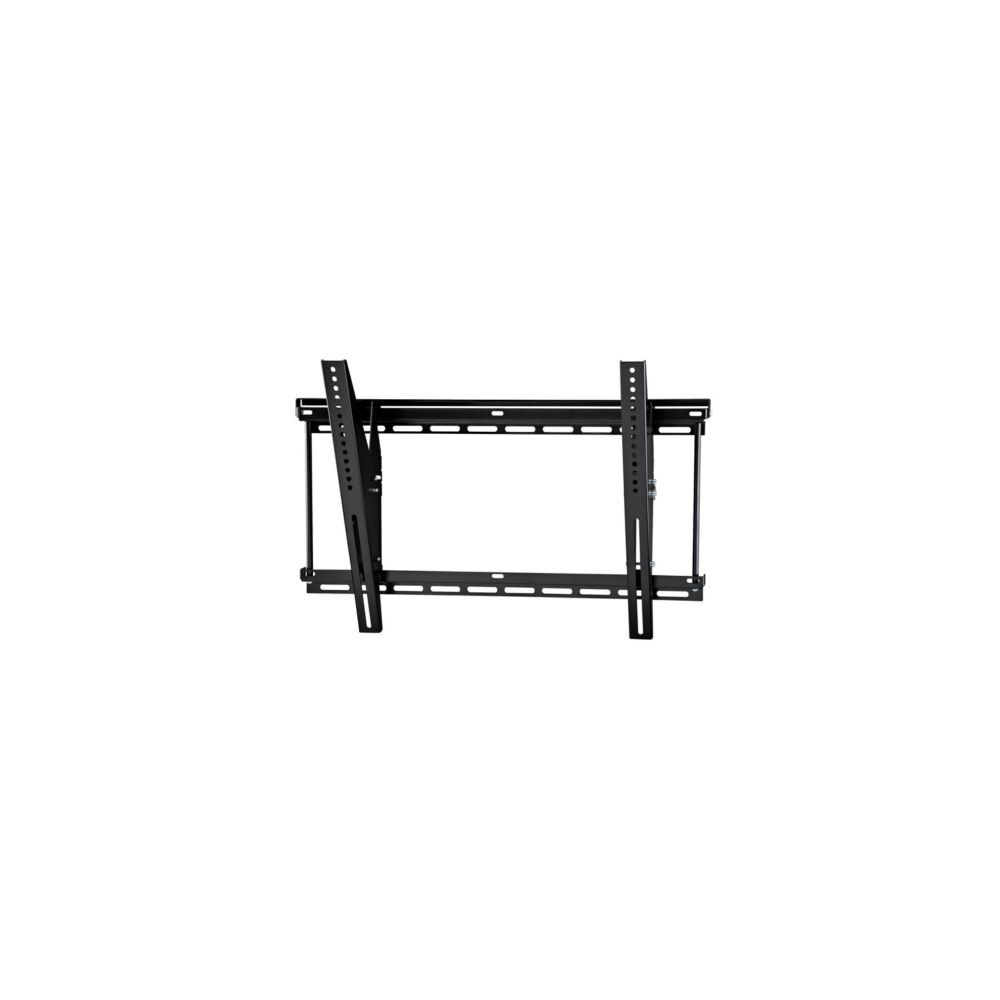

The Ergotron 60-612 Neo-Flex Tilting Wall Mount UHD is a heavy-duty wall mounting solution for compatible large flat-panel displays and televisions. Designed for professional AV installations, meeting rooms, digital signage and other display environments, it supports displays weighing up to 175 lb (79.4 kg) and provides adjustable tilt to help achieve a comfortable viewing angle.
Key Features
- Heavy-duty support: Supports compatible flat-panel displays weighing up to 175 lb (79.4 kg).
- Adjustable tilt: Offers up to 15 degrees of tilt to help reduce glare and improve viewing comfort.
- Universal mounting rails: Supports a range of compatible display mounting patterns.
- Lift n' Lock installation: Helps simplify attaching the display to the wall mount.
- Lateral adjustment: Allows the mounted display to be shifted horizontally along the wall plate for positioning.
- Integrated security: A locking bar helps secure the display to the mount.
- Accessible cable routing: Open architecture provides access to wiring behind the display.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 60-612 |
|---|
| Product Type | Heavy-duty tilting wall mount |
|---|
| Product Series | Neo-Flex |
|---|
| Product Name | Neo-Flex Tilting Wall Mount, UHD |
|---|
| Color | Black |
|---|
| Mounting Location | Wall |
|---|
| Compatible Display Size | Typically 37–63 inches; verify display dimensions and mounting compatibility |
|---|
| Maximum Load Capacity | 175 lb (79.4 kg) |
|---|
| Tilt Range | Up to 15° |
|---|
| VESA Compatibility | Supports compatible MIS-D, MIS-E and MIS-F mounting patterns; verify the exact hole pattern before purchase |
|---|
| Installation | Wall-mounted; installation hardware kit included |
|---|
| Warranty | Confirm warranty terms for the product's sales region |
|---|
Typical Applications
- Conference rooms and meeting spaces
- Commercial displays and digital signage
- Large-screen televisions in professional environments
- AV installations requiring a tilting wall mount
Compatibility and Installation
Before purchasing, check the display's weight, dimensions, mounting-hole pattern and required wall structure. The screen must remain within the mount's rated load capacity, and the mounting pattern must match the supplied rails. Use appropriate wall fasteners and follow the manufacturer's installation instructions for the wall construction and display being installed.
DC Supplies Product Note
Display compatibility depends on more than screen size alone. Please verify the TV or display model, weight and VESA mounting pattern before ordering. The display itself is not included with the wall mount.
Frequently Asked Questions
What is the Ergotron 60-612 used for?
It is a heavy-duty wall mount designed for compatible large flat-panel displays and televisions.
What is the maximum weight capacity?
The mount supports a maximum display weight of 175 lb (79.4 kg), provided the installation and mounting pattern are suitable.
Can the display be tilted?
Yes. The mount provides up to 15 degrees of tilt to help adjust the viewing angle and reduce glare.
Does the package include mounting hardware?
The product documentation lists a hardware kit. Check the package contents and confirm that the required wall fasteners are suitable for your installation surface.
Will it fit any 55-inch or 65-inch TV?
Not necessarily. Screen size is only a guide. Check the TV's weight, mounting-hole pattern and physical dimensions against the mount's specifications before purchasing.
