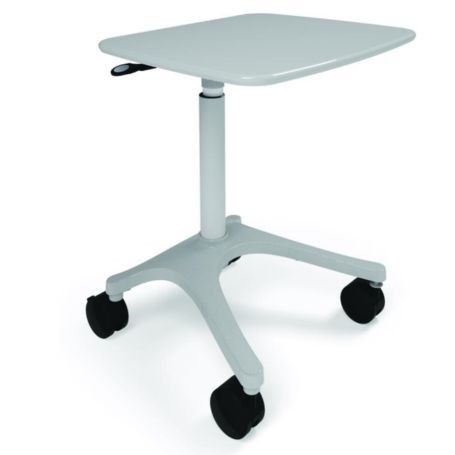

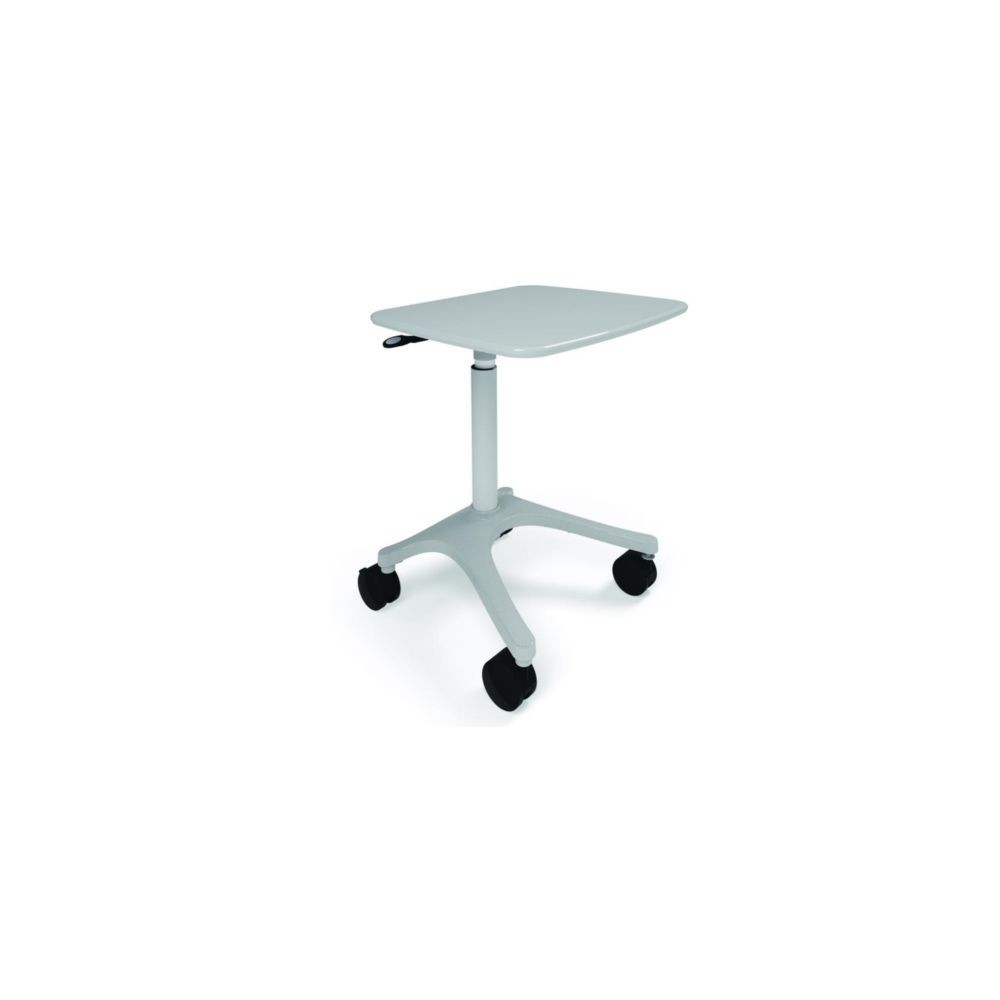

The Ergotron Zido 25 ZAH25CG/CG4 is a heavy-load, adjustable-height mobile cart designed for healthcare facilities, laboratories, offices, and technical workspaces. Its pneumatic height-adjustment mechanism, durable 25-inch worksurface, and stable wheeled base provide a flexible platform for equipment and supplies. The cool-grey finish complements professional environments.
Pneumatic Height Adjustment
The adjustable column lets users position the worksurface between 30 and 40 inches (76.2–101.6 cm) above the floor. A squeeze lever activates the pneumatic mechanism, allowing the surface to be raised or lowered to suit different working positions.
Heavy-Load Worksurface
The 25-inch-wide worksurface provides space for compatible equipment, instruments, and accessories. Its durable laminate finish is designed to resist cracking and chipping and withstand exposure to a wide range of chemicals encountered in everyday work environments.
The heavy-load configuration is designed for a worksurface load of approximately 27–41 lb (12.3–18.6 kg) for effective height adjustment. The maximum worksurface and total-cart capacities must be observed independently.
Stable Mobile Construction
A heavy cast-metal base and steel column provide a stable foundation. Four 4-inch dual-wheel casters support movement between work areas, with two locking casters to help keep the cart in position when stationary.
Accessory Integration
The vertical column includes mounting holes spaced at 1-inch (2.54 cm) increments. Compatible shelves, bins, handles, and cable-management accessories can be installed to adapt the cart to particular work requirements. Accessories are available separately unless specifically listed as included.
Key Features
- Heavy-load Zido 25 mobile cart with pneumatic height adjustment.
- Adjustable worksurface height from 30 to 40 inches (76.2–101.6 cm).
- 25 x 20.5-inch (63.5 x 52.1 cm) worksurface.
- 150 lb (68.2 kg) total cart capacity and up to 50 lb (22.7 kg) on the worksurface.
- Steel column, cast-metal base, and four 4-inch dual-wheel casters, including two locking casters.
Typical Applications
- Healthcare and clinical work areas
- Laboratories and technical facilities
- Office equipment positioning
- Mobile support for instruments and supplies
- Workspaces requiring adjustable-height equipment surfaces
DC Supplies Product Note
The ZAH25CG/CG4 is the heavy-load version of the Ergotron Zido 25 adjustable-height cart. Check the weight of all equipment and installed accessories before use. The total-cart capacity and worksurface capacity are separate limits. For effective pneumatic adjustment, keep the worksurface load within the manufacturer's recommended operating range.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | ZAH25CG/CG4 |
|---|
| Product Type | Heavy-load adjustable-height mobile cart |
|---|
| Product Family | Zido 25 |
|---|
| Colour | Cool grey |
|---|
| Frame Materials | Steel column and cast-metal base |
|---|
| Worksurface Material | Medium-density fibreboard with durable thermoplastic laminate |
|---|
| Worksurface Dimensions | 25 x 20.5 inches (63.5 x 52.1 cm) |
|---|
| Height Adjustment Range | 30–40 inches (76.2–101.6 cm) |
|---|
| Adjustment Mechanism | Pneumatic column with squeeze-lever control |
|---|
| Total Weight Capacity | 150 lb (68.2 kg) |
|---|
| Worksurface Weight Capacity | 50 lb (22.7 kg) |
|---|
| Recommended Worksurface Load for Adjustment | 27–41 lb (12.3–18.6 kg) |
|---|
| Base Dimensions | Approximately 25 x 25.7 inches (63.5 x 65.3 cm) |
|---|
| Casters | Four 4-inch (10.2 cm) dual-wheel casters; two locking |
|---|
| Accessory Mounting | Column mounting holes spaced at 1-inch (2.54 cm) increments |
|---|
| Power | Non-powered |
|---|
| Warranty | Limited lifetime; five years for the pneumatic cylinder |
|---|
Frequently Asked Questions
What is the height range of the Zido 25 heavy-load cart?
The worksurface adjusts between 30 and 40 inches (76.2–101.6 cm) using the pneumatic column and squeeze lever.
What is the maximum weight capacity?
The cart supports up to 150 lb (68.2 kg) overall, with a maximum of 50 lb (22.7 kg) on the worksurface. Both limits must be observed.
How does the heavy-load version differ from the light-load model?
The heavy-load version uses a pneumatic configuration intended for a higher operating load on the adjustable worksurface. Select the version that best matches the equipment weight and adjustment requirements.
Does the cart have locking wheels?
Yes. It has four 4-inch dual-wheel casters, including two locking casters.
Can additional accessories be installed?
Compatible accessories can be attached to the column's mounting holes. Confirm accessory compatibility and include accessory weight when calculating the total load.
Does the cart include an electrical power system?
No. The ZAH25CG/CG4 is a non-powered cart. Any compatible power accessories must be sourced separately.
