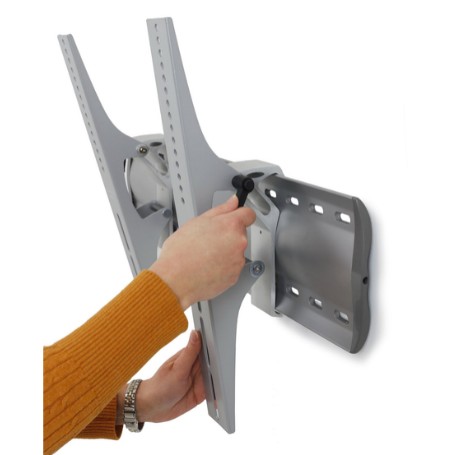

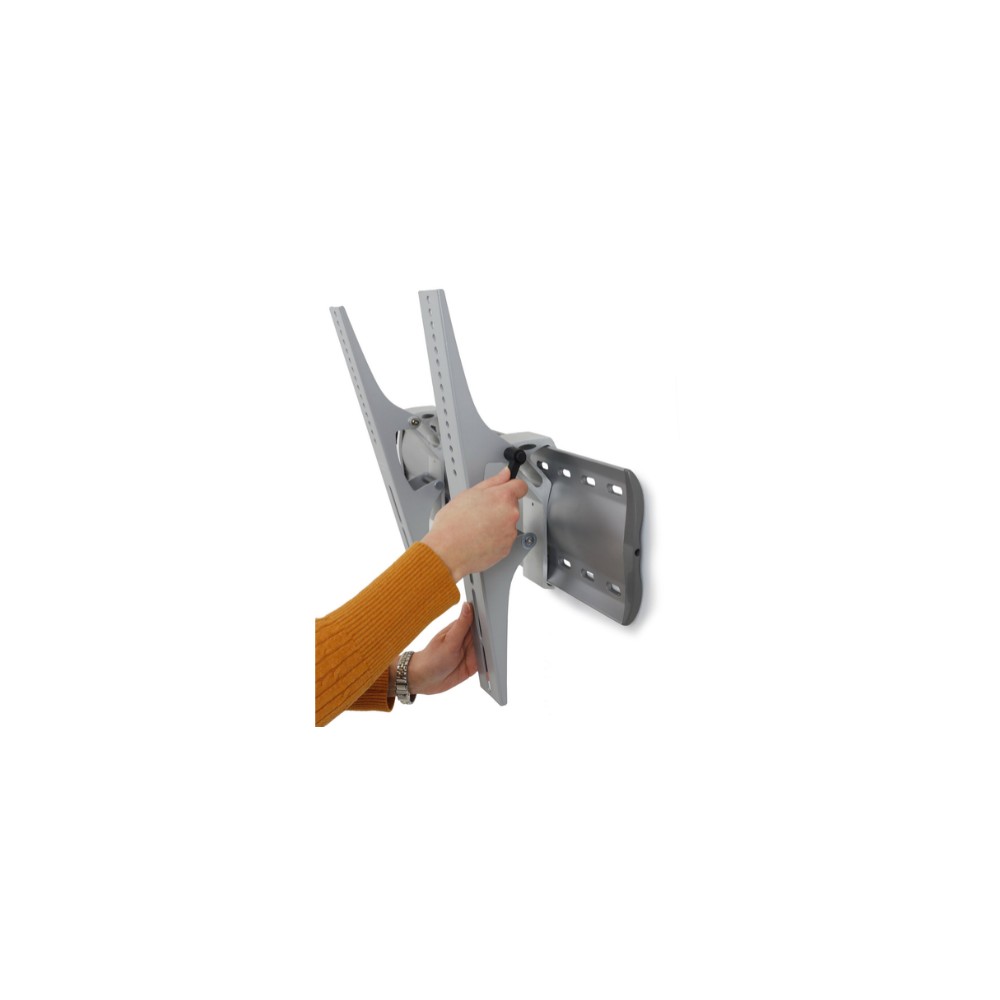

Ergotron 61-143-003 – TM Tilting Wall Mount for 32"+ Displays
Overview
The Ergotron 61-143-003 is a TM Tilting Wall Mount designed for large flat-panel displays and TVs weighing up to 175 lb (79 kg). The silver wall mount uses Constant Force™ motion technology for smooth display tilt adjustment and includes a tilt-lock feature for securing the selected viewing angle.
Technical Information
The mount provides 20° of forward/backward tilt adjustment, with a range of +15° to -5°. Its universal mounting design supports VESA MIS-D/E/F display interfaces and mounting-hole patterns from 100 mm to 600 mm horizontally and 100 mm to 450 mm vertically.
The display sits 3.5 inches (89 mm) from the wall. The mounting assembly uses extruded aluminum and steel construction and incorporates security fasteners to help deter unauthorized display removal.
Compatibility
The 61-143-003 is designed for most displays measuring 32 inches or larger and weighing no more than 175 lb (79 kg). The display mounting holes must fall within the specified horizontal and vertical spacing ranges.
The wall plate is designed for attachment to vertical wall surfaces and includes hardware for installation on 16-inch-centered wood studs or concrete walls. For 24-inch-centered studs or displays requiring a horizontal mounting pattern from 601 to 800 mm, Ergotron specifies the XL version, part number 61-142-003.
Key Features
- Supports displays 32 inches and larger up to 175 lb (79 kg)
- 20° forward/backward tilt adjustment with tilt-lock feature
- Constant Force™ technology provides smooth tilt positioning
- VESA MIS-D/E/F compatibility with broad mounting-hole ranges
- Security fasteners and included wall-mounting hardware
Applications
The Ergotron 61-143-003 is suited to wall-mounted commercial displays, digital signage, conference-room screens, televisions, and other large flat-panel displays where adjustable viewing angle and secure wall installation are required.
DC Supplies Product Note
Before installation, verify the display weight and VESA mounting-hole dimensions against the mount's 79 kg load limit and specified mounting ranges. For 24-inch-centered wall studs or wider display mounting patterns, the Ergotron 61-142-003 XL model is specified instead.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 61-143-003 |
| Product Type | Tilting Wall Mount |
| Series | TM |
| Color | Silver |
| Recommended Display Size | 32 inches and larger |
| Maximum Load Capacity | 175 lb (79 kg) |
| Tilt Adjustment | 20° forward/backward |
| Tilt Range | +15° / -5° |
| VESA Compatibility | MIS-D/E/F |
| Horizontal Mounting Range | 100–600 mm |
| Vertical Mounting Range | 100–450 mm |
| Wall Profile | 3.5 in (89 mm) |
| Mounting Surface | Vertical wall surfaces |
| Wood Stud Compatibility | 16-inch-centered studs |
| Construction | Extruded aluminum and steel |
| Motion Technology | Constant Force™ |
| Security Feature | Integrated security fasteners |
| Product Weight | 4.8 kg |
| Warranty | 5 years |
FAQs
What display size does the Ergotron 61-143-003 support?
The mount is designed for most displays measuring 32 inches or larger, provided the display remains within the 175 lb (79 kg) load capacity and specified mounting-hole ranges.
How much can the display tilt?
The TM Tilting Wall Mount provides 20° of forward/backward tilt adjustment, with a range of +15° to -5°.
What VESA mounting patterns are supported?
The 61-143-003 uses the MIS-D/E/F VESA mounting standard and accepts mounting-hole spacing from 100 to 600 mm horizontally and 100 to 450 mm vertically.
What is included with the mount?
The package includes the wall plate, two display brackets with tilt-lock levers, and a hardware fastener kit.
Can the 61-143-003 be installed on concrete walls?
Yes. Ergotron specifies installation on vertical surfaces with included hardware for wood studs and concrete walls.
