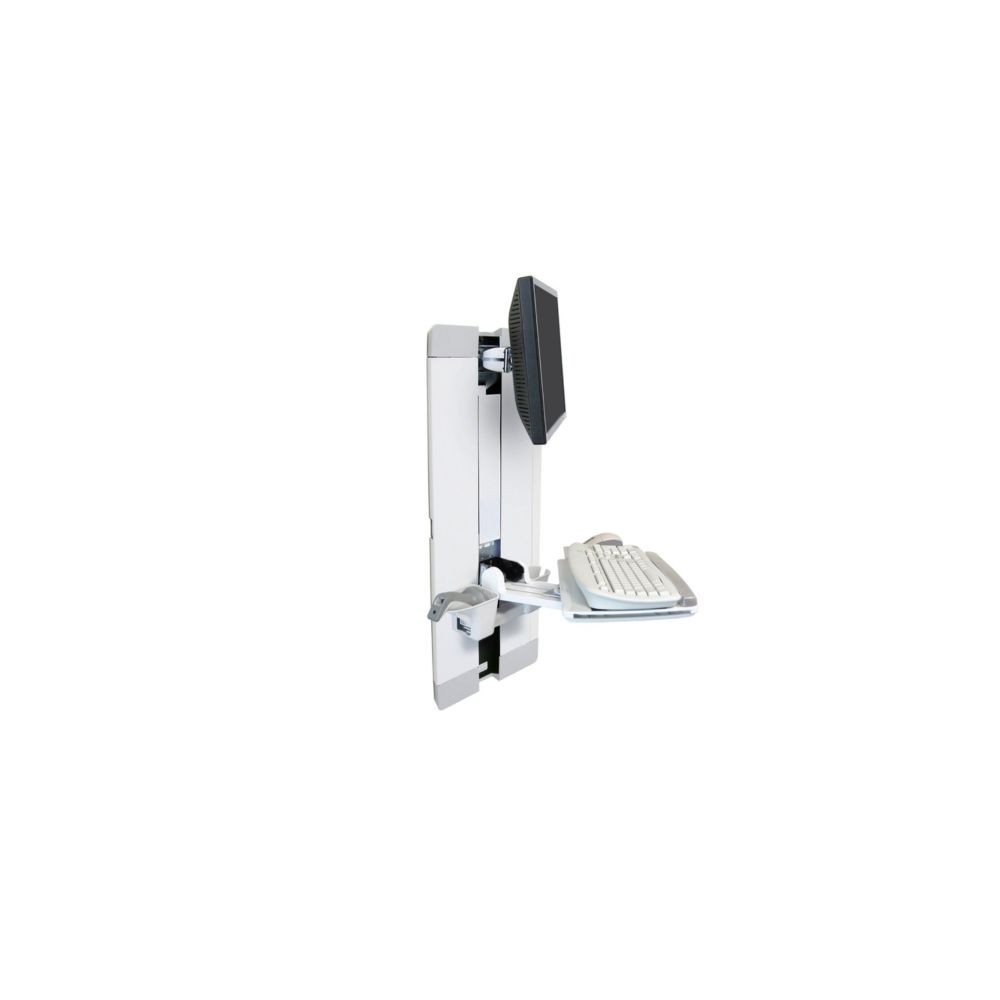

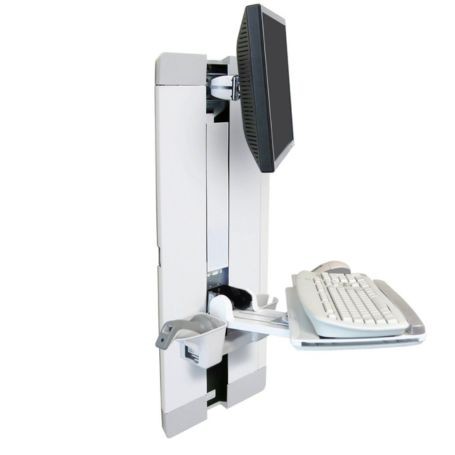

The Ergotron 60-609-216 StyleView Vertical Lift is a wall-mounted computer workstation designed for patient rooms and space-constrained healthcare environments. Its adjustable monitor mount, extendable keyboard tray, and compact folding design support convenient computer access while helping conserve valuable room space. The white finish provides a clean, professional appearance.
Key Features
- 9-inch vertical adjustment: Provides 9 inches (23 cm) of smooth height adjustment for users of different heights.
- Extendable keyboard tray: Slides outward by up to 5 inches (12.7 cm) for comfortable data entry and folds away when not in use.
- Flexible positioning: The monitor pans left and right by up to 50 degrees, while the keyboard tray pans up to 120 degrees in either direction.
- Ergonomic keyboard design: Features adjustable back tilt from 0 to -10 degrees and an integrated mouse-pad surface.
- Integrated cable management: Can be configured on either side to organize cables and simplify cleaning.
Designed for Healthcare Environments
The StyleView Vertical Lift is designed to support computer use in patient rooms and examination areas. The ability to reposition the monitor and keyboard can help caregivers access digital information while interacting with patients.
Its steel construction is designed for everyday use, while the fold-down keyboard tray helps keep the workstation compact when it is not needed. The integrated cable management system helps maintain an organized workspace.
Monitor Compatibility and Load Capacity
This workstation supports monitors with VESA MIS-D mounting patterns of 75 × 75 mm or 100 × 100 mm. Displays up to 24 inches are recommended. Larger displays may prevent the keyboard tray from folding completely flat, depending on the monitor's dimensions.
The supported total load is 8–33 lb (3.6–15 kg), including the monitor and items placed on the keyboard tray. The monitor itself must not exceed 25 lb (11.3 kg). Monitors thicker than 3 inches (7.6 cm) may reduce the available capacity.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 60-609-216 |
|---|
| Product Type | Wall-Mounted Vertical Lift Workstation |
|---|
| Product Series | StyleView |
|---|
| Configuration | Patient Room |
|---|
| Color | White |
|---|
| Construction | Steel |
|---|
| Mounting Type | Wall mount |
|---|
| Vertical Adjustment | 9 in (23 cm) |
|---|
| Recommended Display Size | Up to 24 in |
|---|
| Total Load Capacity | 8–33 lb (3.6–15 kg), including monitor and keyboard-tray contents |
|---|
| Maximum Monitor Weight | 25 lb (11.3 kg) |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Monitor Pan | Up to 50° left or right, depending on monitor size |
|---|
| Keyboard Tray Extension | Up to 5 in (12.7 cm) |
|---|
| Keyboard Tray Pan | Up to 120° left or right |
|---|
| Keyboard Tray Tilt | 0° to -10° |
|---|
| Cable Management | Integrated; configurable on either side |
|---|
| Included Accessories | Extendable keyboard tray, wrist rest, mouse pouch, mouse and scanner holder, and mounting hardware |
|---|
| Product Weight | 28.1 lb (12.7 kg) |
|---|
| Shipping Dimensions | 39.5 × 16 × 10.75 in (1000 × 406 × 273 mm) |
|---|
| Shipping Weight | 36.8 lb (16.7 kg) |
|---|
| GTIN | 00698833015317 |
|---|
| Warranty | 5 years |
|---|
Frequently Asked Questions
What is the Ergotron 60-609-216 used for?
It is a wall-mounted computer workstation designed for patient rooms and healthcare environments that require adjustable monitor and keyboard positioning.
How much vertical adjustment does it provide?
The workstation provides 9 inches (23 cm) of vertical adjustment.
Which monitors are compatible?
Compatible monitors must support VESA 75 × 75 mm or 100 × 100 mm mounting. Displays up to 24 inches are recommended, although monitor dimensions may affect how the keyboard tray folds away.
What is the maximum supported weight?
The total supported load is 33 lb (15 kg), including the monitor and keyboard-tray contents. The monitor itself must not exceed 25 lb (11.3 kg).
Does the package include a monitor and computer?
No monitor or computer is listed among the included components. The package includes the workstation assembly and specified accessories; confirm the supplier's package contents before ordering.
DC Supplies Product Note
Before ordering, verify your monitor's weight, thickness, and VESA mounting pattern. The total load capacity includes both the monitor and items placed on the keyboard tray. Ensure the wall structure and installation method are suitable for the complete workstation.
