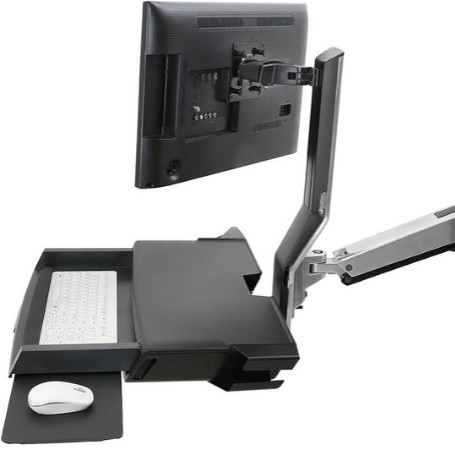

Ergotron 45-594-216 – StyleView SV Combo System with Worksurface & Pan, Small CPU Holder
Overview

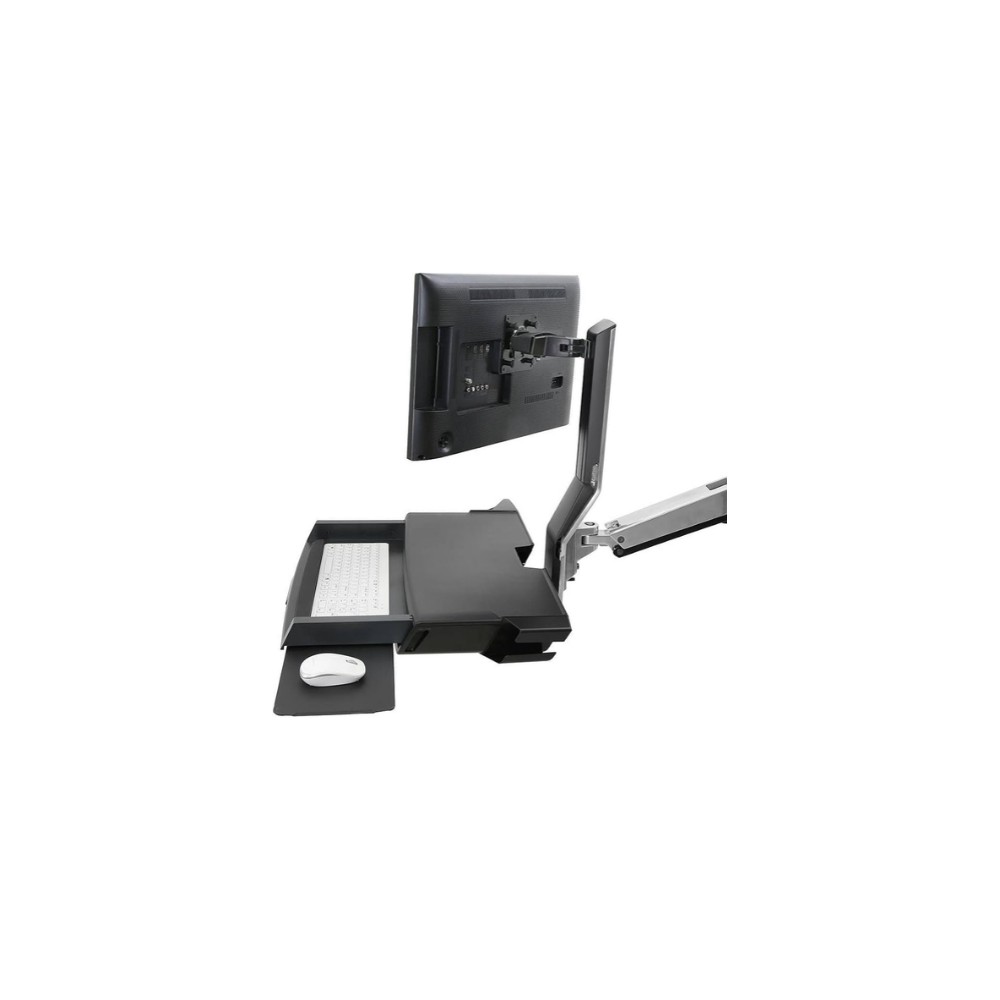

The Ergotron 45-594-216 is a StyleView SV Combo System with Worksurface and Panning, configured with a small CPU holder and finished in white. It is a wall-mounted sit-stand workstation designed for healthcare environments, combining monitor support, a worksurface, keyboard tray, CPU holder, barcode scanner holder, mouse holder, and cable-management components on a height-adjustable arm.
The system is designed to allow caregivers to work from seated or standing positions while keeping a monitor, keyboard, mouse, barcode scanner, and CPU within reach. The integrated worksurface and keyboard tray fold away when not in use, helping conserve workspace.
Technical Information
The StyleView Combo System uses Ergotron's patented Constant Force™ lift-and-pivot technology. The LCD and keyboard can be adjusted together through a 20-inch (51 cm) tandem range, while the LCD provides an additional 5-inch (13 cm) independent adjustment. Maximum LCD height adjustment is 25 inches (64 cm).
The combo arm pans 360° from side to side, while the LCD can independently pan 180°. The display mount provides 30° of tilt and 90° of screen rotation for ergonomic positioning and portrait or landscape orientation.
Compatibility
The 45-594-216 supports LCD displays up to 24 inches with VESA FDMI MIS-D mounting patterns of 75 x 75 mm or 100 x 100 mm. The display load capacity is 6–18 lb (2.7–8.2 kg).
The integrated small CPU holder accommodates CPUs from 1-3/8 to 3-3/4 inches (3.5–9.5 cm) wide. The worksurface supports up to 10 lb (4.5 kg), while the keyboard, mouse, and barcode scanner load is rated up to 4 lb (1.8 kg). The system can also be configured for a laptop instead of an LCD display by adding the compatible Notebook Tray.
Key Features
- StyleView sit-stand combo system with integrated worksurface and panning monitor arm
- Small CPU holder supports CPUs from 1-3/8 to 3-3/4 in (3.5–9.5 cm) wide
- 20-inch (51 cm) tandem LCD and keyboard adjustment with 5-inch (13 cm) independent LCD adjustment
- 360° arm pan with independent 180° LCD pan, 30° tilt, and 90° screen rotation
- Includes integrated keyboard tray, slide-out mouse tray, scanner holder, wrist rest, cable channels, and VESA monitor mounting kit
Applications
The 45-594-216 is intended for healthcare and clinical workstation deployments where a compact, height-adjustable computer station is required. Typical applications include patient-care areas, examination rooms, treatment areas, clinical workstations, and telehealth environments where medical staff need access to a monitor, computer, keyboard, mouse, and barcode scanner while working from different heights.
DC Supplies Product Note
Verify the wall construction and mounting requirements before installation. Confirm that the display, CPU, worksurface, keyboard, mouse, and scanner loads remain within their individual specified capacities. The small CPU holder is designed for equipment between 1-3/8 and 3-3/4 inches (3.5–9.5 cm) wide. The 45-594-216 is the white small-CPU-holder configuration; related StyleView models such as 45-583 and 45-595 have different configurations and should not be substituted for this MPN.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-594-216 |
| Product Type | StyleView Combo Arm System |
| Product Series | StyleView |
| Configuration | Combo System with Worksurface & Pan, Small CPU Holder |
| Color | White |
| Monitor Size | Up to 24 in |
| Display Capacity | 6–18 lb (2.7–8.2 kg) |
| Worksurface Capacity | 10 lb (4.5 kg) |
| Keyboard / Mouse / Scanner Capacity | 4 lb (1.8 kg) |
| CPU Capacity | 40 lb (18.2 kg) |
| Small CPU Holder Width | 1-3/8–3-3/4 in (3.5–9.5 cm) |
| Tandem Lift Range | 20 in (51 cm) |
| Independent LCD Adjustment | 5 in (13 cm) |
| Maximum LCD Height Adjustment | 25 in (64 cm) |
| Arm Pan | 360° |
| Independent LCD Pan | 180° |
| Monitor Tilt | 30° |
| Monitor Rotation | 90° |
| VESA Mounting | VESA FDMI MIS-D, 75/100, C |
| VESA Hole Patterns | 75 x 75 mm and 100 x 100 mm |
| Worksurface Dimensions | 22.75 x 10.6 in (57.8 x 26.9 cm) |
| Keyboard Tray Dimensions | 18.6 x 9 in (47.2 x 22.8 cm) |
| Maximum Keyboard Height | 1.35 in (3.4 cm) |
| Construction | Aluminum and high-grade plastic |
| Product Weight | 41 lb (19 kg) |
| Shipping Dimensions | 37.1 x 26.1 x 10 in (94 x 66 x 25 cm) |
| Shipping Weight | 51 lb (23 kg) |
| Warranty | 5 years |
FAQs
What is the Ergotron 45-594-216?
The Ergotron 45-594-216 is a white StyleView SV Combo System with a worksurface, panning monitor arm, and small CPU holder for healthcare workstation applications.
What size monitor does the 45-594-216 support?
The system supports LCD displays up to 24 inches with VESA MIS-D mounting patterns of 75 x 75 mm or 100 x 100 mm.
What is the display weight capacity?
The display capacity is 6–18 lb (2.7–8.2 kg).
What CPU sizes fit the included CPU holder?
The included small CPU holder accommodates CPUs from 1-3/8 to 3-3/4 inches (3.5–9.5 cm) wide.
How much height adjustment does the system provide?
The LCD and keyboard adjust together through 20 inches (51 cm), with an additional 5 inches (13 cm) of independent LCD adjustment. Maximum LCD height adjustment is 25 inches (64 cm).
Can the monitor be rotated?
Yes. The monitor provides 90° of rotation, allowing portrait or landscape orientation.
How far can the arm and monitor pan?
The combo arm pans 360° from side to side, while the LCD can independently pan 180°.
What is the worksurface capacity?
The worksurface is rated for up to 10 lb (4.5 kg).
Can the system support a laptop instead of a monitor?
Yes. Ergotron specifies that the system can be configured for a laptop instead of an LCD display by adding the compatible Notebook Tray.
What is included with the 45-594-216?
The configuration includes the combo arm, 34-inch wall track, two track covers, small CPU holder, two 10-inch cable channels, track-mount bracket kits, wall-track fasteners, CPU direct wall-mount kit, wrist rest, scanner holder, mouse holder, integrated keyboard tray, slide-out mouse tray, handle, VESA monitor mounting kit, and cable ties.
What is the warranty?
The 45-594-216 carries a 5-year warranty.
