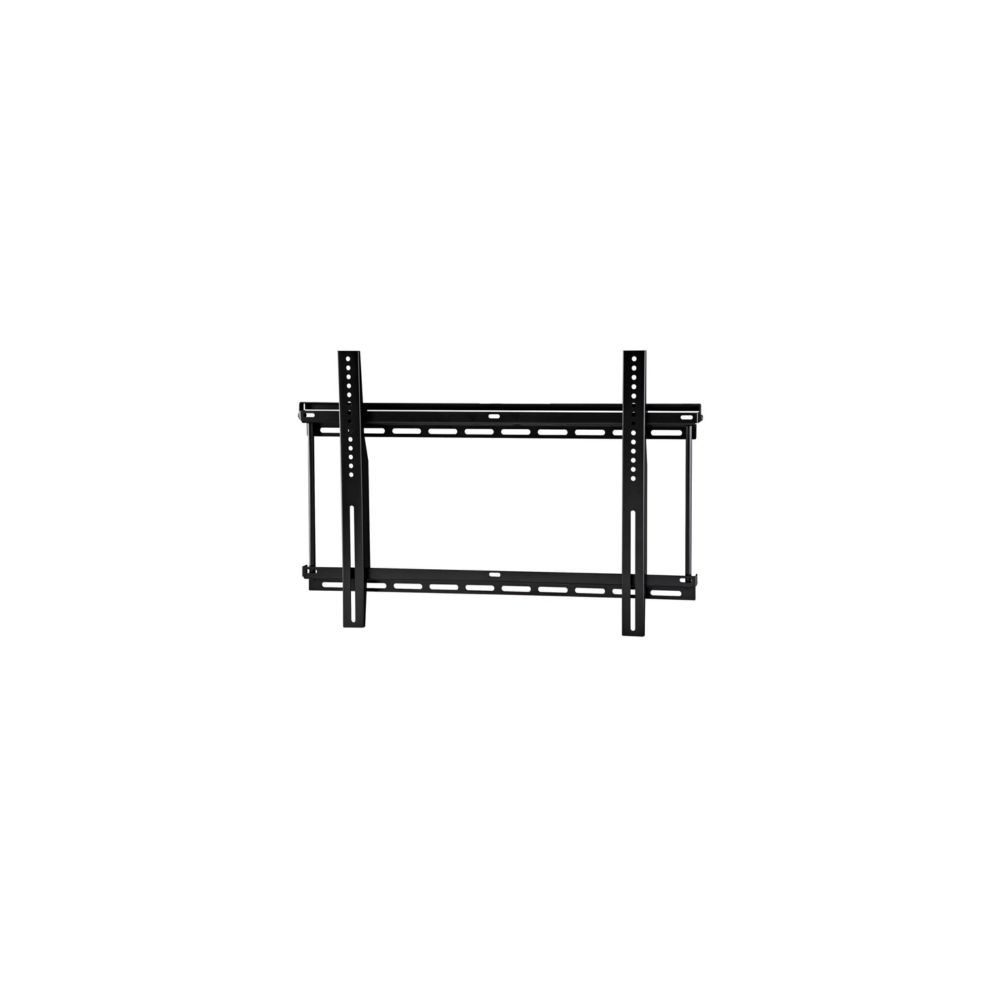

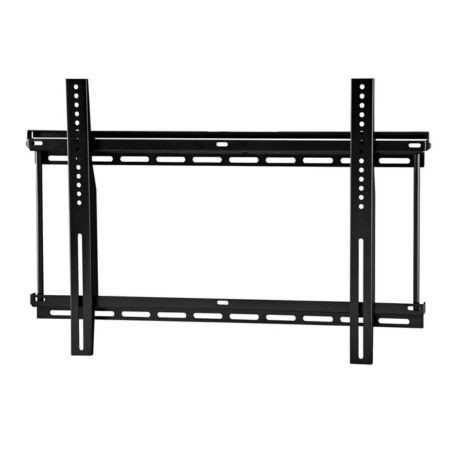

The Ergotron 60-614 Neo-Flex Fixed Wall Mount UHD is a heavy-duty wall mounting solution designed for compatible large flat-panel displays and televisions. Its low-profile design keeps the screen close to the wall, making it suitable for conference rooms, offices, commercial AV installations, and digital signage environments.
Designed for dependable display support, this black fixed wall mount accommodates compatible displays weighing up to 175 lb (79.4 kg). Universal mounting rails help support a range of display mounting patterns, while the Lift n' Lock mechanism simplifies display attachment.
Key Features
- Heavy-duty display support: Supports compatible flat-panel displays weighing up to 175 lb (79.4 kg).
- Low-profile installation: Positions the display approximately 1.7 inches (4.4 cm) from the wall.
- Universal mounting rails: Accommodates supported display mounting patterns for broad compatibility.
- Lift n' Lock design: Helps simplify attaching the display to the wall mount.
- Lateral adjustment: Allows horizontal positioning along the wall plate after installation.
- Integrated locking bar: Helps secure the display to the mounting assembly.
- Open architecture: Provides access to wiring behind the display.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 60-614 |
|---|
| Product Type | Fixed wall mount for large displays |
|---|
| Product Series | Neo-Flex |
|---|
| Model | Neo-Flex Fixed Wall Mount, UHD |
|---|
| Color | Black |
|---|
| Mounting Location | Wall |
|---|
| Compatible Display Size | Most flat-panel displays and TVs 37 inches and larger, subject to mounting compatibility |
|---|
| Maximum Load Capacity | 175 lb (79.4 kg) |
|---|
| Mounting Profile | 1.7 inches (4.4 cm) from the wall |
|---|
| Horizontal Mounting-Hole Spacing | 100–600 mm |
|---|
| Vertical Mounting-Hole Spacing | 100–400 mm |
|---|
| VESA Compatibility | MIS-D, MIS-E and MIS-F patterns within the supported spacing ranges |
|---|
| Product Weight | 7.4 lb (approximately 3.4 kg) |
|---|
| GTIN | 00698833017687 |
|---|
| Safety Certification | UL listed to UL Standard 2442 |
|---|
| Warranty | 3 years |
|---|
Package Contents
- Wall plate
- Two fixed mounting rails
- Locking bar
- Installation and attachment hardware kit
Recommended Applications
- Conference rooms and meeting spaces
- Commercial television installations
- Digital signage and information displays
- Office and professional AV environments
Compatibility and Installation
Before purchasing, check the display's weight, mounting-hole spacing and physical dimensions against the mount specifications. The display must not exceed the maximum rated load. Select wall fasteners appropriate for the wall construction and follow Ergotron's installation instructions. This is a fixed mount and does not provide an adjustable tilt or swivel function.
DC Supplies Product Note
Please verify the display model and mounting pattern before ordering. Screen size alone does not guarantee compatibility. The television or display is not included with the wall mount.
Frequently Asked Questions
What is the Ergotron 60-614 used for?
It mounts compatible large flat-panel displays and televisions securely to a wall.
What is the maximum supported display weight?
The maximum rated load is 175 lb (79.4 kg).
How far does the display sit from the wall?
The mounting profile is approximately 1.7 inches (4.4 cm).
Can this wall mount tilt or swivel?
No. The 60-614 is a fixed wall mount designed to hold the display in a stationary position.
Which mounting patterns are supported?
It supports compatible MIS-D, MIS-E and MIS-F mounting patterns within the specified horizontal and vertical spacing ranges.
What is included in the package?
The package includes the wall plate, two fixed rails, a locking bar, and installation and attachment hardware.
What warranty does the product carry?
Ergotron specifies a three-year warranty for this model. Confirm applicable coverage with the seller for your region.
