Overview

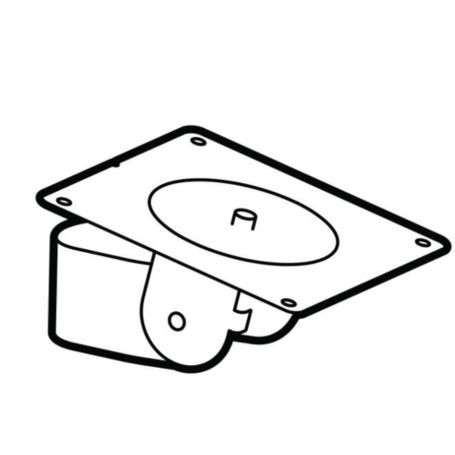

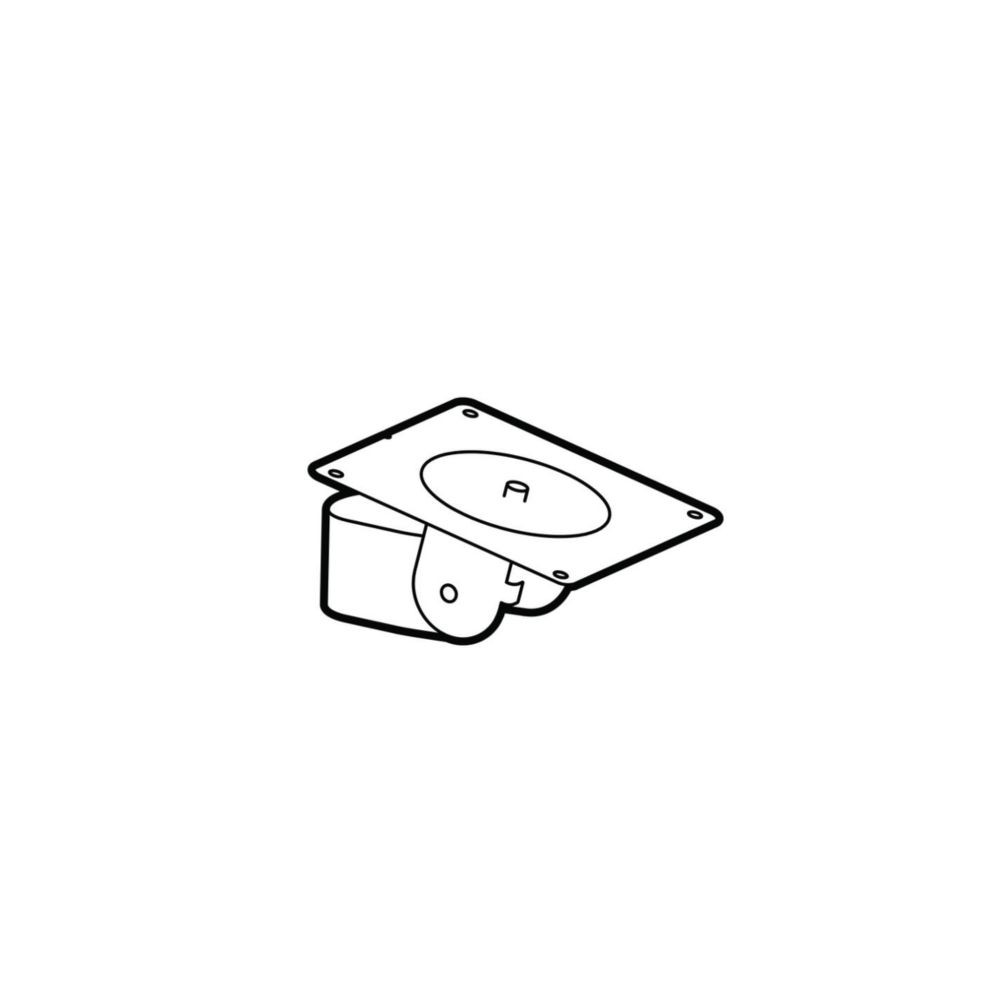

The Ergotron 98-735-026 LX Pro Display Pivot is a mounting accessory designed to connect a compatible monitor to an Ergotron LX Pro arm. Its adjustable pivot mechanism supports flexible display positioning, helping users find a comfortable viewing angle for office, professional, and home workstation environments.
The polished aluminum finish complements compatible LX Pro equipment. This accessory can also be used to convert a compatible keyboard arm or dual-direct arm for single-monitor use. Keeping an additional pivot with a display can help simplify monitor replacement in work environments where minimizing downtime is important.
Key Features
- Flexible display adjustment: Supports tilt, pan, and rotation for adaptable monitor positioning.
- VESA compatibility: Supports standard 75 × 75 mm and 100 × 100 mm mounting patterns.
- Broad tilt range: Offers a specified tilt range from 15° to 70°.
- Modular mounting accessory: Designed for compatible LX Pro arms and supported single-monitor configurations.
- Polished aluminum finish: Provides a professional appearance that coordinates with compatible mounting equipment.
Adjustable Monitor Positioning
The pivot supports tilt adjustment to help position the display at a suitable viewing angle. Its pan and rotation functions provide additional flexibility when repositioning a screen for individual work or shared viewing.
Confirm that the monitor's weight falls within the specified range and that the display dimensions, VESA pattern, and complete mounting configuration meet the manufacturer's requirements.
VESA Mounting Compatibility
The pivot supports VESA mounting patterns of 75 × 75 mm and 100 × 100 mm. Before installation, verify the monitor's mounting-hole pattern and use the appropriate attachment hardware. The display must be securely attached according to the manufacturer's installation instructions.
Compatibility and Installation
The Ergotron 98-735-026 is designed for compatible LX Pro mounting arms. Supplier listings identify compatibility with the LX Pro Wall Keyboard Arm, model 45-685-290. Confirm the intended arm model before purchasing.
This product is a display pivot accessory rather than a complete monitor arm or desk mount. A compatible arm and mounting base are required for a complete installation. LX Pro components are not compatible with the legacy Ergotron LX series or other product lines.
Applications
- Adding a display pivot to a compatible LX Pro mounting configuration.
- Converting a compatible keyboard arm or dual-direct arm for single-monitor use.
- Keeping a spare pivot available for faster display replacement.
- Adjusting monitor viewing angles in office and home-office workstations.
DC Supplies Product Note
Before ordering, verify the monitor's weight, VESA mounting pattern, and compatibility with your specific LX Pro arm. This item includes the display pivot and attachment hardware; it is not a complete monitor arm or mounting base.
Technical Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-735-026 |
|---|
| Product Series | LX Pro |
|---|
| Product Name | LX Pro Display Pivot |
|---|
| Product Type | Monitor mounting pivot accessory |
|---|
| Finish | Polished aluminum |
|---|
| Minimum Supported Load | 4 lb (1.8 kg) |
|---|
| Maximum Supported Load | 22 lb (10 kg) |
|---|
| Maximum Screen Size | 34 inches |
|---|
| Tilt Range | 15° to 70° |
|---|
| Maximum Pan Angle | 180° |
|---|
| Maximum Rotation Angle | 360° |
|---|
| VESA Mounting Patterns | 75 × 75 mm and 100 × 100 mm |
|---|
| Approximate Product Weight | 1.4 lb (0.64 kg) |
|---|
| Package Contents | LX Pro Display Pivot and attachment hardware |
|---|
| Certification | BIFMA LEVEL 2 |
|---|
| Environmental Compliance | RoHS and REACH |
|---|
| Limited Warranty | 10 years |
|---|
| UPC | 698833098488 |
|---|
Frequently Asked Questions
1. What is the Ergotron 98-735-026?
It is an LX Pro display pivot accessory that connects a compatible monitor to a supported Ergotron mounting arm.
2. What is the supported monitor weight?
The pivot supports displays weighing between 4 and 22 lb (1.8–10 kg). Always check the requirements of the complete mounting configuration.
3. Which VESA patterns does it support?
It supports VESA mounting patterns of 75 × 75 mm and 100 × 100 mm.
4. Can the display be tilted and rotated?
Yes. The pivot supports tilt adjustment from 15° to 70°, up to 180° of panning, and up to 360° of rotation.
5. Does the package include a complete monitor arm?
No. The package includes the display pivot and attachment hardware. A compatible monitor arm and mounting base are required.
6. Is it compatible with the legacy Ergotron LX series?
No. LX Pro components are not compatible with the legacy LX series or other Ergotron product lines. Verify the exact arm model before purchasing.
