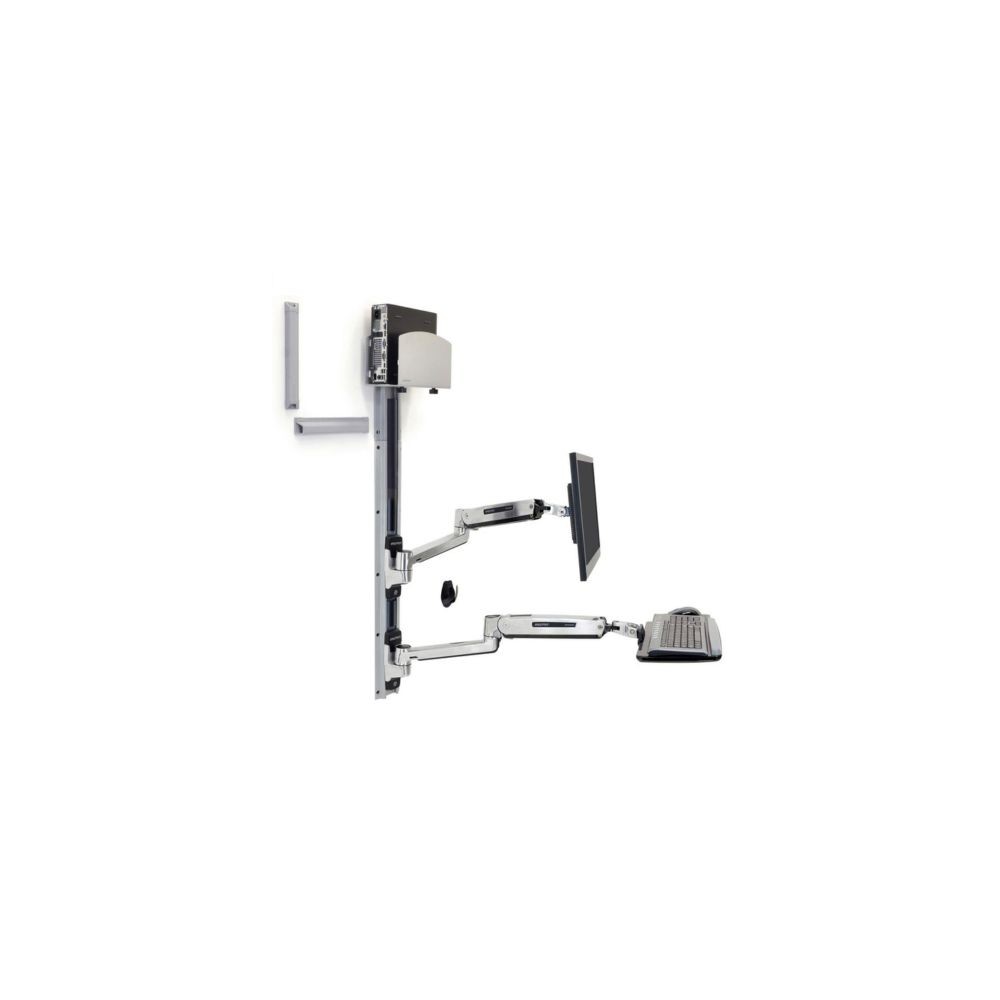

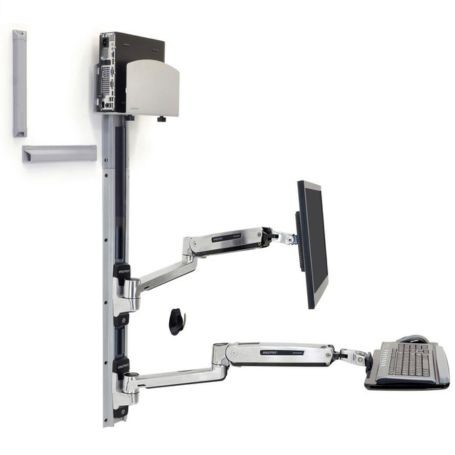

Ergotron 45-359-026 LX Sit-Stand Wall Mount System
The Ergotron 45-359-026 LX Sit-Stand Wall Mount System is a complete wall-mounted computer workstation designed to support a monitor, keyboard, and small CPU. Its articulated arms allow the monitor and keyboard to be positioned independently, helping users maintain a comfortable working position while sitting or standing.
Finished in polished aluminum with a black small CPU holder, this system is suited to space-conscious work environments, including healthcare facilities, clinical workstations, and professional offices. When the workstation is not in use, the monitor arm and keyboard tray can be folded closer to the wall to help free up space.
Key Features
- Complete wall-mounted workstation: Combines a monitor arm, keyboard arm and tray, wrist rest, mouse holder, and small CPU holder.
- Sit-stand flexibility: Provides up to 20 inches (51 cm) of height adjustment to accommodate different working positions.
- Independent positioning: Adjust the monitor and keyboard separately for improved workstation ergonomics.
- Space-saving design: Fold the monitor and keyboard components closer to the wall when they are not needed.
- Integrated cable organization: Includes cable channels and cable-management features to help keep workstation wiring organized.
Adjustable Monitor and Keyboard Arms
The articulated monitor arm supports compatible displays weighing 7–25 lb (3.2–11.3 kg). It provides tilt and pan adjustment to help position the screen for comfortable viewing. The display can extend up to 33 inches (84 cm), while the keyboard arm can extend up to 42 inches (107 cm).
The keyboard tray features a back-tilt design and includes a wrist rest and mouse holder. The monitor and keyboard can be adjusted independently to suit different users and workstation tasks.
Wall-Mounted Installation
The system includes 10-inch and 34-inch wall tracks with black track covers, along with mounting kits intended for hollow-wall and wall-stud installations. Installers should verify the wall structure, mounting surface, fasteners, and installation requirements before fitting the system.
Small CPU Holder
The included black small CPU holder accommodates compatible compact computer units. Confirm the computer's dimensions and weight against the holder's specifications before installation.
What's Included
- 10-inch and 34-inch wall tracks
- Two black wall-track covers
- LX sit-stand wall-mount LCD arm
- LX sit-stand keyboard arm and tray
- Wrist rest and mouse holder
- Small black CPU holder
- Two 10-inch cable channels
- Mounting kits for hollow-wall and wall-stud installation
DC Supplies Product Note
The Ergotron 45-359-026 is a complete sit-stand workstation system rather than a standalone monitor arm. Before ordering, confirm that your monitor, keyboard setup, CPU dimensions, and intended wall installation are compatible with the system.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 45-359-026 |
|---|
| Product Type | Sit-Stand Wall-Mounted Computer Workstation |
|---|
| Product Family | LX Sit-Stand Wall Mount System |
|---|
| Finish | Polished aluminum |
|---|
| CPU Holder Color | Black |
|---|
| Monitor Weight Capacity | 7–25 lb (3.2–11.3 kg) |
|---|
| Keyboard Weight Capacity | 5 lb (2.2 kg) |
|---|
| CPU Weight Capacity | 50 lb (22 kg) |
|---|
| Height Adjustment | 20 inches (51 cm) |
|---|
| Maximum Monitor Extension | 33 inches (84 cm) |
|---|
| Maximum Keyboard Extension | 42 inches (107 cm) |
|---|
| Monitor Adjustment | Tilt and pan |
|---|
| Wall Tracks Included | 10-inch and 34-inch tracks |
|---|
| Cable Management | Integrated cable management with two 10-inch cable channels |
|---|
| Mounting Type | Wall mount |
|---|
| Warranty | 10 years |
|---|
Frequently Asked Questions
1. What is included with the Ergotron 45-359-026?
The system includes wall tracks, an LCD arm, a keyboard arm and tray, a wrist rest, a mouse holder, a small CPU holder, cable channels, track covers, and mounting kits for hollow-wall and wall-stud installations.
2. Can this workstation be used while sitting or standing?
Yes. The system provides up to 20 inches (51 cm) of height adjustment, allowing users to reposition the workstation for different working heights.
3. What is the monitor weight capacity?
The monitor arm supports displays weighing 7–25 lb (3.2–11.3 kg). Check your monitor's weight and mounting compatibility before installation.
4. How far can the monitor and keyboard extend?
The monitor can extend up to 33 inches (84 cm), and the keyboard arm can extend up to 42 inches (107 cm).
5. Does the system include a CPU holder?
Yes. This model includes a small black CPU holder with a stated weight capacity of 50 lb (22 kg). Verify the computer's dimensions and weight before mounting.
