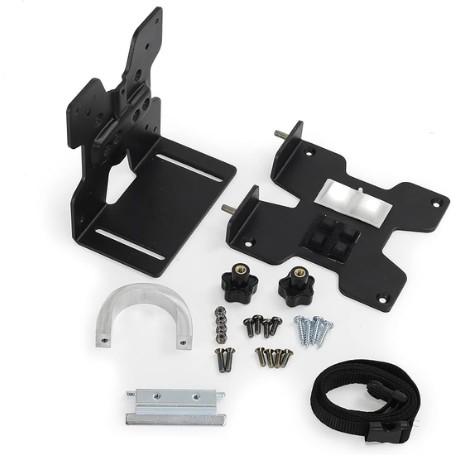

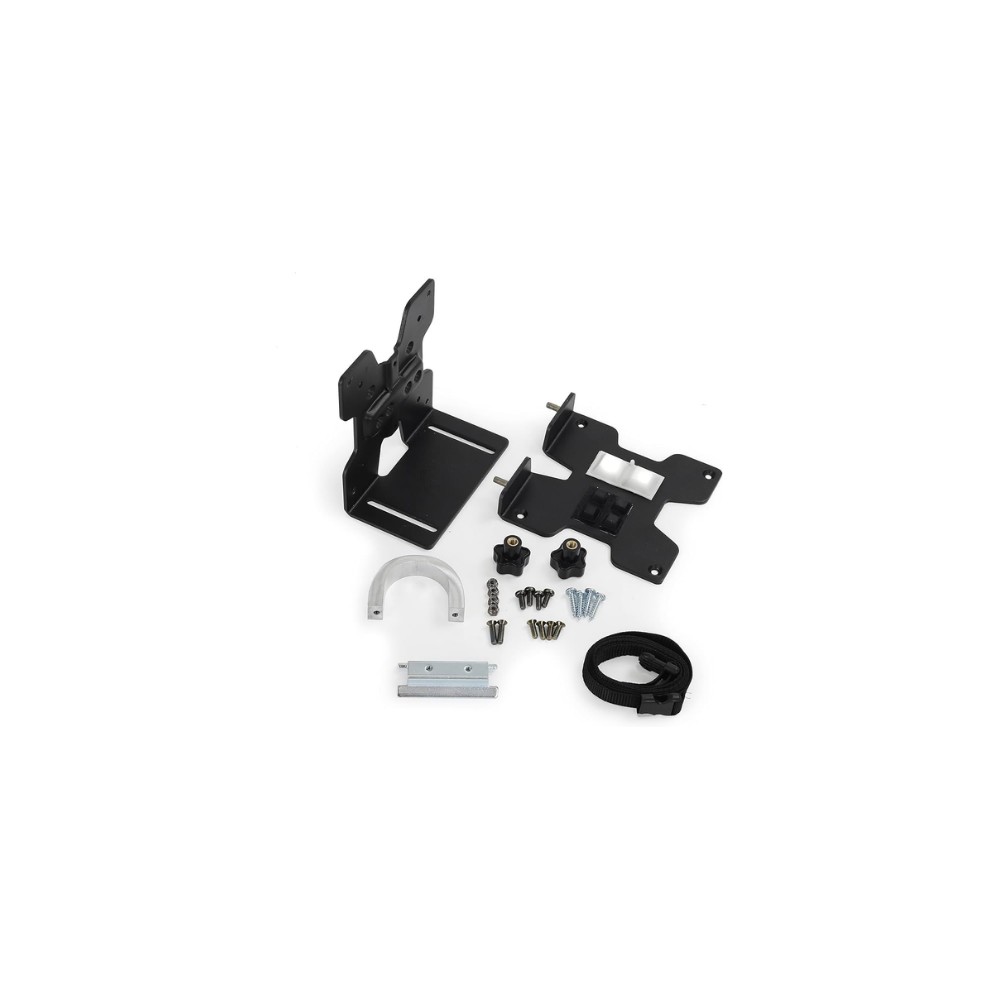

Ergotron 80-107-200 – Mini PC Mount, Black
Overview
The Ergotron 80-107-200 is a black Mini PC Mount designed to securely integrate thin clients, mini PCs and other small computers into workstation and display-mount environments. Its adjustable holder accommodates a range of compact computer dimensions while providing multiple installation options for flexible workspace integration.
The mount can be installed between a monitor and VESA plate, attached to a compatible pole, mounted underneath a wooden desktop, or secured to an Ergotron Wall Track. The universal VESA interface supports 75 x 75 mm and 100 x 100 mm mounting patterns, allowing the Mini PC Mount to be incorporated into compatible display mounting systems.
Technical Information
The 80-107-200 supports a thin client or mini PC weighing up to 6 lb (2.7 kg). Compatible computer dimensions are 0.85–2.3 inches (22–58 mm) in depth, 6.8–10 inches (173–254 mm) in height, and 4–9 inches (102–229 mm) in width. When the mount is installed through its VESA interface between a monitor and VESA plate, the attached monitor is specified for up to 18 lb (8.2 kg).
The mounting system supports VESA MIS-D and can also be attached to poles measuring 35–40 mm (1.38–1.58 inches) in diameter, directly beneath a wooden desktop, or to an Ergotron Wall Track. Mounting pads and a retaining strap are included to improve device stability.
Compatibility
The Ergotron 80-107-200 is intended for compatible thin clients, small PCs, mini computers and peripherals that fall within its specified dimensional and weight limits. Its VESA interface supports 75 x 75 mm and 100 x 100 mm mounting patterns. The holder can be used with compatible Ergotron mounting systems and workstation configurations, including applications using VESA plates, 35–40 mm poles, Ergotron Wall Track, or suitable wooden desktop surfaces.
Key Features
- Designed for thin clients, mini PCs and other compact computers up to 6 lb (2.7 kg).
- Adjustable holder supports computers from 0.85–2.3 in (22–58 mm) deep, 6.8–10 in (173–254 mm) high and 4–9 in (102–229 mm) wide.
- Universal VESA interface supports 75 x 75 mm and 100 x 100 mm mounting patterns.
- Multiple mounting options include VESA, compatible 35–40 mm poles, under-desktop installation and Ergotron Wall Track.
- Includes mounting pads and strap for increased stability, with a 5-year warranty.
Applications
The Ergotron 80-107-200 is suitable for workstation, office, healthcare, education and other professional environments where a thin client or compact PC needs to be integrated with a monitor mount or workstation while conserving usable desk space. Its multiple mounting options allow small computers to be positioned behind displays, beneath desks, on compatible poles or along Ergotron Wall Track installations.
DC Supplies Product Note
The exact MPN is important for this accessory because Ergotron also offers a white version, 80-107-216. The 80-107-200 specified here is the black Mini PC Mount. It should not be substituted with the white 80-107-216 or other Ergotron CPU-holder models when matching an installation or replacement requirement.
Specifications
| Brand | Ergotron |
|---|
| Part Number | 80-107-200 |
|---|
| Product Type | Mini PC Mount |
|---|
| Color | Black |
|---|
| Supported Device Type | Thin client, mini PC, small computer or compatible peripheral |
|---|
| Maximum Mini PC Weight | 6 lb (2.7 kg) |
|---|
| Supported Device Depth | 0.85–2.3 in (22–58 mm) |
|---|
| Supported Device Height | 6.8–10 in (173–254 mm) |
|---|
| Supported Device Width | 4–9 in (102–229 mm) |
|---|
| VESA Standard | VESA FDMI, MIS-D |
|---|
| VESA Hole Pattern | 75 x 75 mm and 100 x 100 mm |
|---|
| VESA-Attached Monitor Capacity | Up to 18 lb (8.2 kg) |
|---|
| Pole Mount Compatibility | 35–40 mm (1.38–1.58 in) diameter |
|---|
| Other Mounting Options | Under desktop to wood surface; Ergotron Wall Track |
|---|
| Product Weight | 1.5 lb (0.7 kg) |
|---|
| Shipping Dimensions | 6 x 7 x 4.25 in (15 x 18 x 11 cm) |
|---|
| Shipping Weight | 2 lb (0.9 kg) |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 80-107-200?
The 80-107-200 is Ergotron's black Mini PC Mount for integrating thin clients, mini PCs and other small computers into compatible workstation and display-mount configurations.
What is the maximum computer weight?
The supported mini PC or thin client weight is up to 6 lb (2.7 kg).
What computer dimensions does the mount support?
The supported range is 0.85–2.3 inches (22–58 mm) deep, 6.8–10 inches (173–254 mm) high and 4–9 inches (102–229 mm) wide.
Does the 80-107-200 support VESA mounting?
Yes. The Mini PC Mount uses a VESA FDMI MIS-D interface supporting 75 x 75 mm and 100 x 100 mm mounting patterns.
Where can the 80-107-200 be mounted?
It can be mounted between a monitor and VESA plate, to compatible 35–40 mm poles, underneath a wooden desktop, or to an Ergotron Wall Track.
Is the 80-107-200 black or white?
The exact 80-107-200 part number is the black version. Ergotron identifies 80-107-216 as the white version.
Does it include mounting hardware?
Yes. The product documentation specifies mounting pads and a strap for increased stability, along with hardware for the supported mounting configurations.
What warranty does Ergotron provide?
The 80-107-200 carries a 5-year warranty.
