Overview

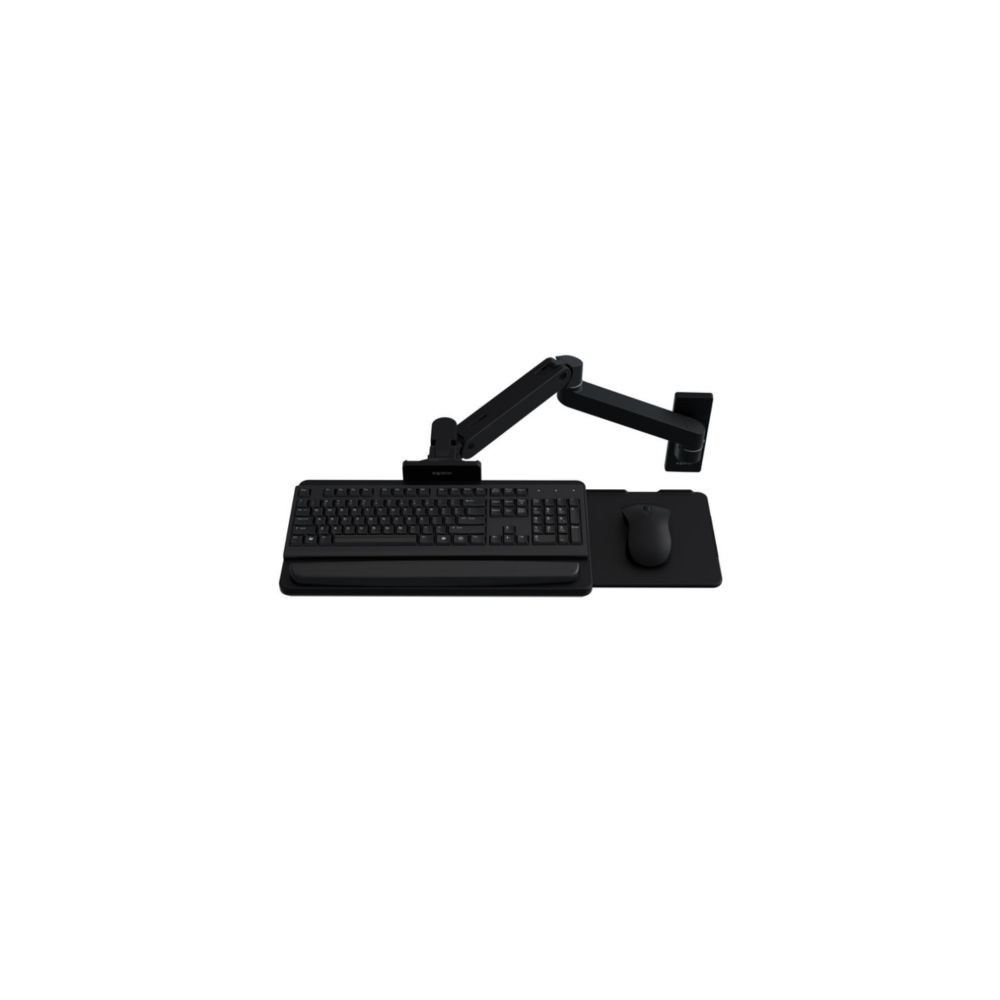

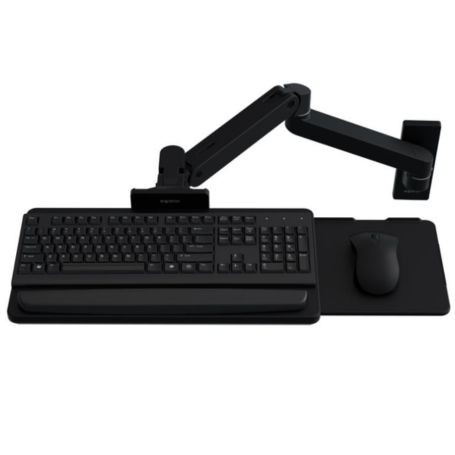

The Ergotron LX Pro Wall Keyboard Arm, part number 45-685-292, is a black wall-mounted keyboard support designed for adjustable keyboard positioning in wall-mounted workstations. The arm provides height adjustment, pan, tilt, and rotation, and can fold upright against the wall when the keyboard is not in use.
Adjustability and Positioning
The arm provides 13 inches (33 cm) of lift and extends up to 35 inches (89 cm) from the wall. The keyboard tray tilts 5 degrees backward in the lowered position and folds upright 90 degrees for storage. The base arm provides 360-degree pan, with a rotation stop that limits movement to 180 degrees when engaged. :contentReference[oaicite:1]{index=1}
Keyboard Compatibility
The keyboard tray supports keyboards up to 17.6 x 9.5 inches (44.6 x 24 cm) and has a maximum load capacity of 5 lb (2.3 kg). The documented configuration includes a mouse holder and wrist pad. :contentReference[oaicite:2]{index=2}
Key Features
- Wall-mounted LX Pro keyboard arm in black
- 13-inch (33 cm) lift adjustment
- Up to 35 inches (89 cm) of extension
- 5 lb (2.3 kg) maximum load capacity
- 90-degree upright folding storage position
Applications
The arm is designed for wall-mounted workstation configurations where the keyboard needs adjustable reach and positioning while retaining the ability to fold the tray close to the wall when not in use.
DC Supplies Product Note
Before deployment, verify that the keyboard fits within the 17.6 x 9.5-inch tray limit and that the combined keyboard and supported items remain within the 5 lb (2.3 kg) load capacity. :contentReference[oaicite:3]{index=3}
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 45-685-292 |
|---|
| Product Type | Wall-mounted keyboard arm |
|---|
| Series | LX Pro |
|---|
| Color | Black / Matte Black |
|---|
| Mounting | Wall mount |
|---|
| Maximum Keyboard Size | 17.6 x 9.5 in (44.6 x 24 cm) |
|---|
| Load Capacity | 5 lb (2.3 kg) |
|---|
| Lift | 13 in (33 cm) |
|---|
| Tray Tilt | 5° backward tilt in lowered position |
|---|
| Storage Position | Folds upright 90° |
|---|
| Monitor Pan | 180° |
|---|
| Base Arm Pan | 360°; 180° with rotation stop engaged |
|---|
| Monitor Rotation | 360° |
|---|
| VESA | MIS-D, 100/75, C; 100 x 100 mm and 75 x 75 mm |
|---|
| Extension | 35 in (89 cm) |
|---|
| Folded Depth | 3.5 in (9 cm) |
|---|
| Product Weight | 5.2 kg |
|---|
| Warranty | 10 years |
|---|
| UPC/EAN | 0698833092127 |
|---|
Frequently Asked Questions
What is the maximum load of the Ergotron 45-685-292?
The keyboard arm supports a maximum load of 5 lb (2.3 kg). :contentReference[oaicite:4]{index=4}
What size keyboard does the tray support?
The documented maximum keyboard size is 17.6 x 9.5 inches (44.6 x 24 cm). :contentReference[oaicite:5]{index=5}
How far can the keyboard arm extend?
The LX Pro Wall Keyboard Arm provides up to 35 inches (89 cm) of extension from the wall. :contentReference[oaicite:6]{index=6}
Can the keyboard tray fold away?
Yes. The tray folds upright through 90 degrees for storage, reducing the amount of space it occupies against the wall. :contentReference[oaicite:7]{index=7}
What accessories are included?
The documented package includes the wall keyboard arm, mouse holder, wrist pad, and assembly and attachment hardware. :contentReference[oaicite:8]{index=8}
