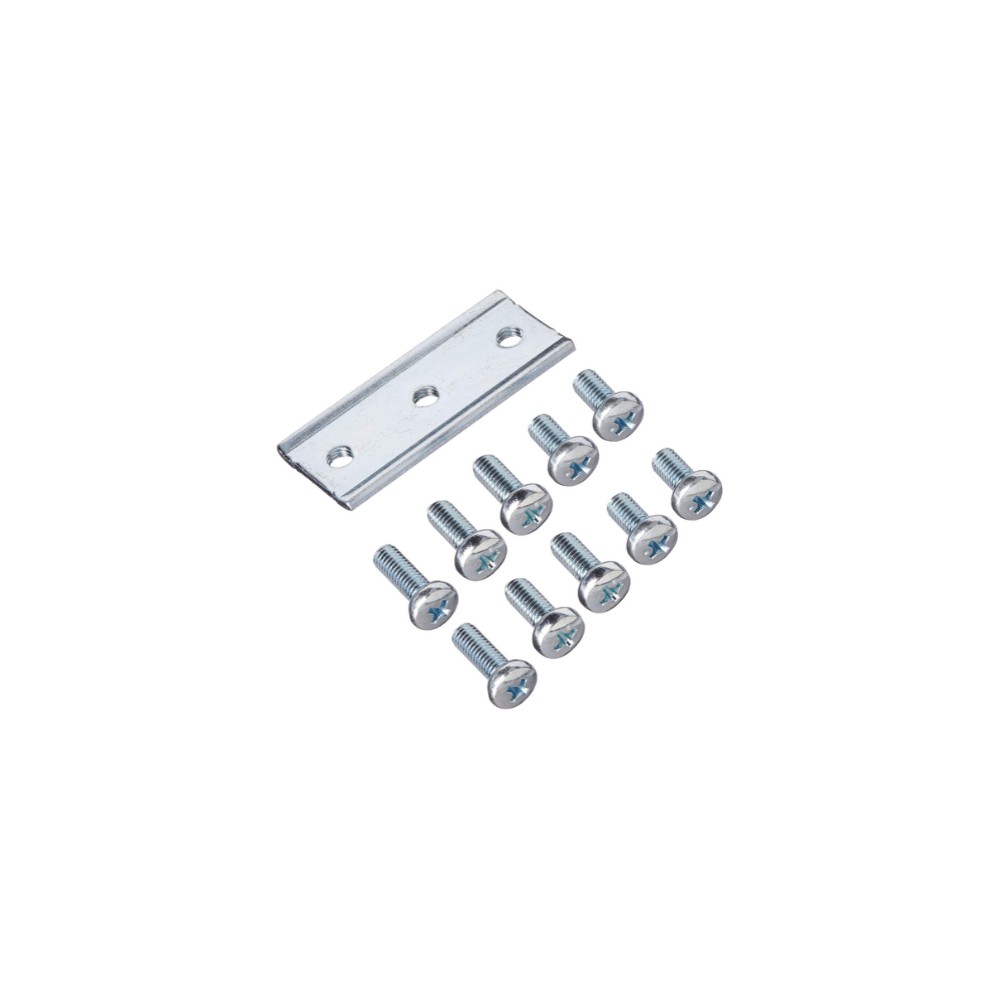

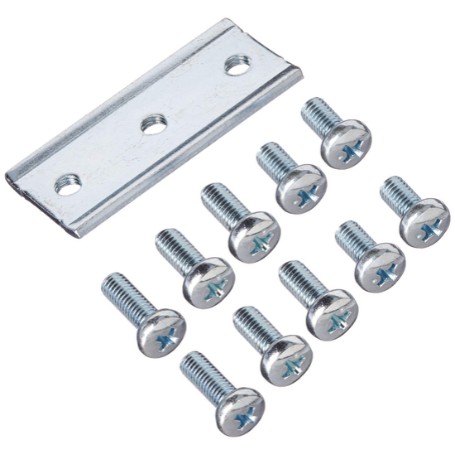

Ergotron 97-631 – StyleView SV T-Nut Kit
Overview
The Ergotron 97-631 is an aluminum SV T-Nut Kit designed to provide an attachment interface for user-supplied equipment on compatible Ergotron carts with T-slot channels. The kit is intended for mounting accessories such as scanner holders, PC holders, baskets, wipe holders, and shelves to the rear of supported carts.
Technical Information
The kit uses adjustable T-Nut brackets that can be repositioned vertically by loosening the set screws. This allows mounted equipment to be positioned at the required height on the cart. The aluminum construction provides a dedicated mechanical interface without requiring modification to the cart structure.
Compatibility
The 97-631 is designed for Ergotron carts equipped with a compatible T-slot channel, including StyleView carts. Load capacity depends on the cart configuration: up to 15 lb (6.8 kg) on non-powered carts without drawers and up to 20 lb (9.1 kg) on powered carts or non-powered carts with drawers. Ergotron recommends considering the weight of the mounted component and its height on the cart to help avoid a tip hazard.
Key Features
- Aluminum T-Nut mounting interface for compatible Ergotron carts
- Adjustable bracket height using set screws
- Supports attachment of user-supplied cart accessories and equipment
- Includes two T-Nut brackets and eight mounting screws
- Supports up to 20 lb (9.1 kg) depending on cart configuration
Applications
The 97-631 is suited to StyleView mobile-cart deployments where additional equipment needs to be mounted to an available T-slot channel. Typical uses include attaching computer accessories, barcode scanner holders, storage baskets, wipe holders, shelves, or other compatible equipment.
DC Supplies Product Note
Check the target Ergotron cart for a compatible T-slot channel before ordering. Maximum supported load varies with cart configuration, and the height and weight of the attached equipment should be considered when evaluating cart stability.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 97-631 |
| Product Type | T-Nut Mounting Kit |
| Product Series | StyleView |
| Material | Aluminum |
| Color | Aluminum / Silver |
| Mounting Interface | T-slot channel |
| Bracket Type | T-Nut bracket |
| Bracket Height | Adjustable |
| Capacity – Non-Powered Cart Without Drawers | 15 lb (6.8 kg) |
| Capacity – Powered Cart or Non-Powered Cart With Drawers | 20 lb (9.1 kg) |
| Included T-Nut Brackets | 2 |
| Included 10 mm Screws | 4 |
| Included 12 mm Screws | 4 |
| Compatible Cart Interface | Ergotron cart with T-slot channel |
| Warranty | 5 years |
FAQs
What is the Ergotron 97-631?
It is an SV T-Nut mounting kit that provides an attachment interface for adding compatible equipment to Ergotron carts with T-slot channels.
What is included in the 97-631 kit?
The kit includes two aluminum T-Nut brackets, four 10 mm screws, and four 12 mm screws.
What equipment can be attached using the 97-631?
The T-Nut interface can be used to attach compatible user-supplied accessories and equipment, including scanner holders, PC holders, baskets, wipe holders, and shelves.
What is the maximum load capacity?
The capacity is 15 lb (6.8 kg) on non-powered carts without drawers and 20 lb (9.1 kg) on powered carts or non-powered carts with drawers.
Can the mounting height be adjusted?
Yes. The bracket height can be adjusted by loosening the set screws.
What should be considered when mounting equipment?
The mounted component's weight and its position on the cart should be considered to help maintain cart stability and avoid a tip hazard.
