The Ergotron Dual Monitor Double-Hinged Bow (98-101-009) is an accessory designed to improve screen positioning on compatible WorkFit dual-monitor workstations. Its double-hinged structure allows users to adjust the relative angles of two displays, creating a viewing arrangement suited to individual tasks or collaborative work.
Angle both screens inward to create a more focused viewing area, or turn a screen outward when sharing information with another person. The design also supports organized cable routing behind the displays, helping maintain a tidy workstation.
Key Features
- Flexible dual-screen positioning: Adjust the angle of each display for focused work or shared viewing.
- Up to 168° of panning: Provides a wide range of horizontal movement, with available motion depending on display size.
- Supports displays up to 25 inches: Designed for compatible dual-monitor workstation configurations.
- Organized cable routing: Allows display cables to be routed behind the screens.
- Accessory mounting kit: Includes the double-hinged bow and mounting hardware for installation on compatible systems.
Technical Specifications
| Brand | Ergotron |
|---|
| Product Name | Dual Monitor Double-Hinged Bow |
|---|
| Manufacturer Part Number | 98-101-009 |
|---|
| Color | Black |
|---|
| Product Type | Dual-monitor workstation accessory |
|---|
| Maximum Display Size | 25 inches per display |
|---|
| Load Capacity | 6–14 lb (2.7–6.4 kg) per display, subject to the existing workstation's capacity |
|---|
| Maximum Panning Range | Up to 168°; movement may be restricted with larger displays |
|---|
| Product Weight | Approximately 1.4 kg (3.0 lb) |
|---|
| Shipping Dimensions | 12.3 × 6 × 3.5 inches (31 × 15 × 9 cm) |
|---|

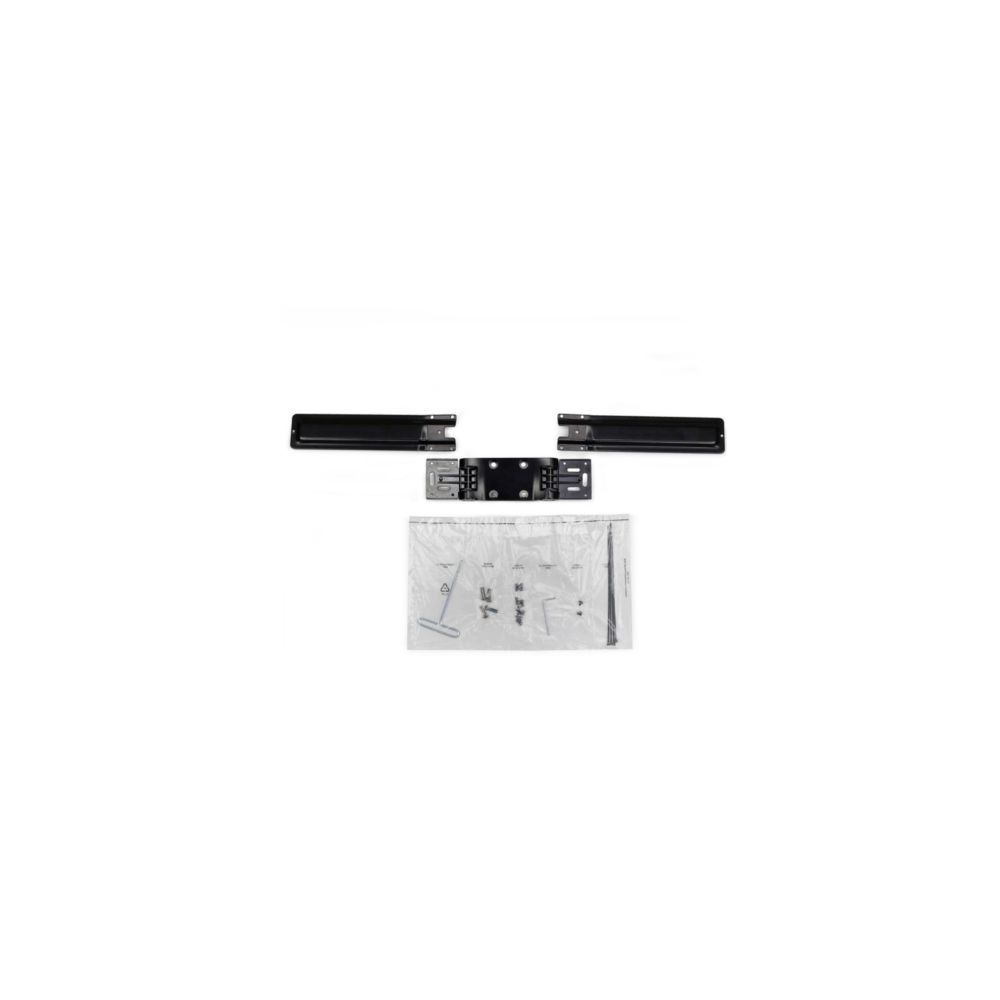

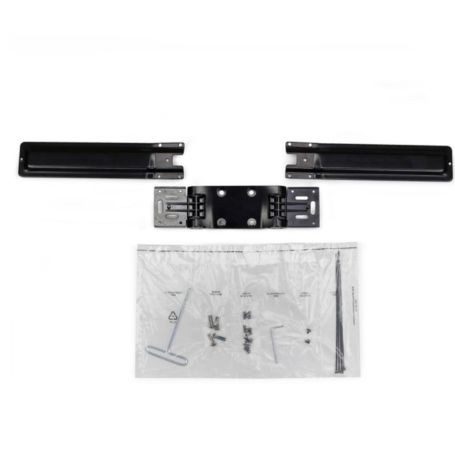

| Package Contents | Double-hinged bow and mounting hardware |
|---|
| Monitor Pivots | Not included; reuse compatible pivots from the existing workstation |
|---|
| Warranty | 5 years |
|---|
| UPC | 698833062298 |
|---|
Compatibility
The 98-101-009 is intended for compatible Ergotron WorkFit dual-monitor workstations. Listed compatible systems include selected WorkFit-A, WorkFit-S and WorkFit-SR configurations.
It is not compatible with WorkFit-C, WorkFit-LX or WorkFit-D/DL products. Some WorkFit-T, WorkFit-TL, WorkFit-TX and WorkFit Corner configurations require a compatible dual-monitor riser kit. Confirm your workstation model and existing mounting components before ordering.
Display Size and Load Considerations
The accessory supports displays up to 25 inches, with a specified load range of 6–14 lb (2.7–6.4 kg) per display. The actual supported weight depends on the capacity of the WorkFit workstation being used. The full 168° panning range is available with displays up to 18 inches; movement may be restricted with displays between 19 and 25 inches.
DC Supplies Product Note
This listing is for the double-hinged bow accessory and mounting hardware only. Monitor pivots, displays and the WorkFit workstation are not included. Check the existing workstation's compatibility, load capacity and required mounting components before purchasing.
Frequently Asked Questions
1. What is the Ergotron 98-101-009?
It is a Dual Monitor Double-Hinged Bow accessory that adds flexible horizontal positioning to compatible WorkFit dual-monitor workstations.
2. What display sizes does it support?
It is designed for displays up to 25 inches. The available panning range may be reduced when using larger displays.
3. What is the weight capacity?
The specified capacity is 6–14 lb (2.7–6.4 kg) per display, depending on the capacity of the existing WorkFit workstation.
4. Are monitor pivots included?
No. The kit includes the double-hinged bow and mounting hardware. Compatible pivots from the existing workstation must be reused.
5. Can it be installed on any WorkFit workstation?
No. Compatibility varies by model, and some configurations require an additional dual-monitor riser kit. Check your workstation's model number and Ergotron's compatibility guidance before ordering.
6. What warranty is provided?
The product is listed with a five-year warranty. Refer to Ergotron's warranty terms for details about coverage.
