Detailed Specifications

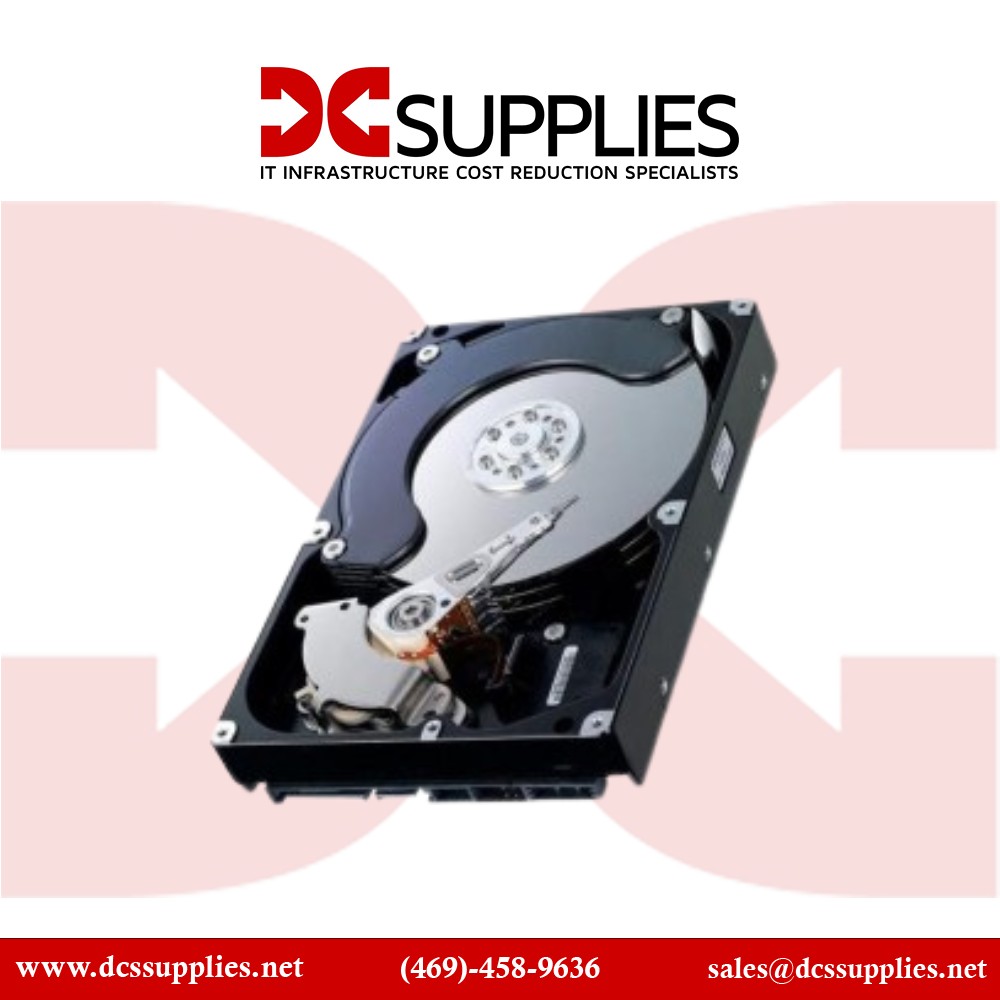

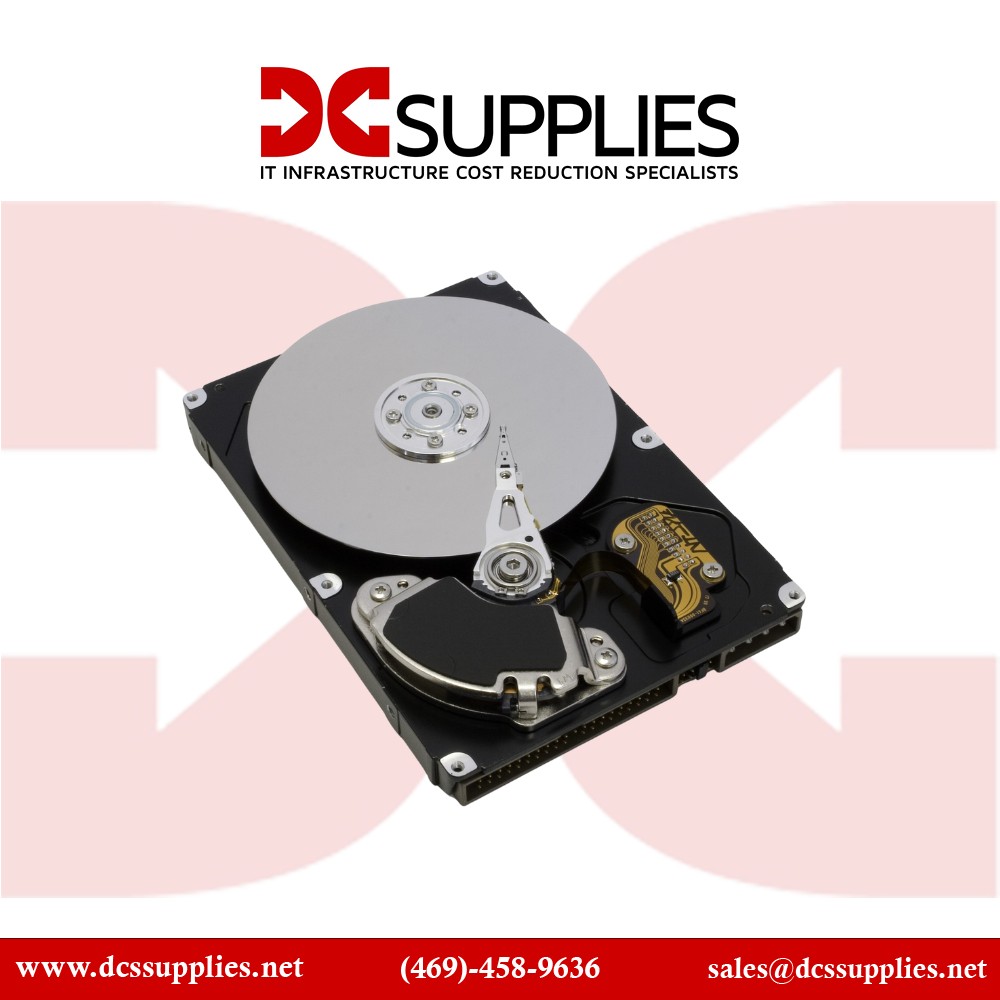

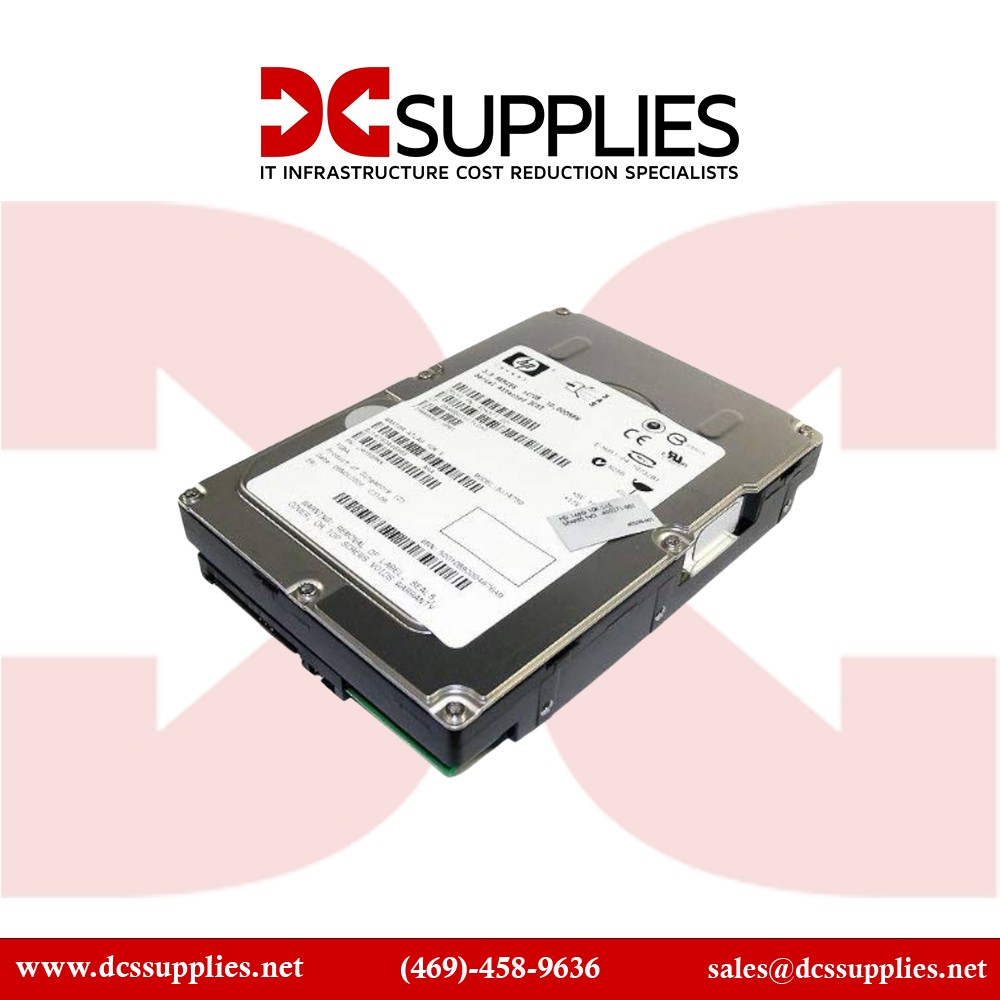

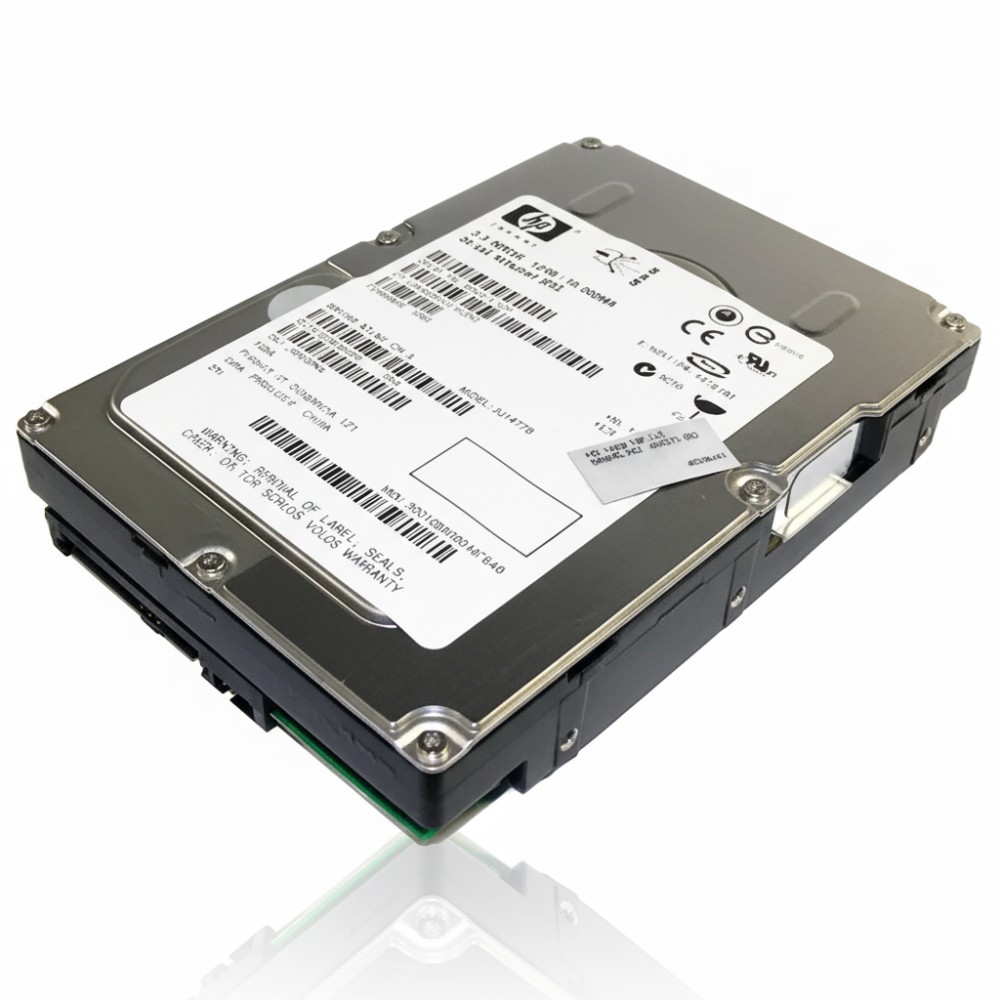

HP 405271-001 - 146GB 10K RPM SAS 3.5" Hot-Plug Hard Drive
Overview:
The HP 405271-001 is a 146 GB, 10,000 rpm, 3.5-inch enterprise hard disk drive designed for server and storage array environments. It uses a 3 Gb/s SAS interface, supports hot-pluggable operation and is aimed at delivering reliable performance in demanding workloads. The 16 MB cache buffer assists in transferring data efficiently while the NHP (non-high profile) form factor makes it suitable for dense rack-based infrastructure. This drive fits into enterprise server bays where 3.5" Large Form Factor (LFF) SAS drives are supported, and is optimized for environments requiring moderate capacity with higher rotational speed and consistent access times. When integrated into RAID configurations in data centres or server rooms, it supports maintenance without system downtime via its hot-swap capability.
Key Features :
146 GB storage capacity in 3.5" form factor
3 Gb/s SAS interface for enterprise connectivity
10,000 rpm spindle speed for higher performance
16 MB cache for improved data buffering
Hot-pluggable design for live system maintenance
Specifications:
| Specification | Details |
|---|
| Brand | HP |
| Part Number | 405271-001 |
| Product Type | Hard Disk Drive |
| Capacity | 146GB |
| Form Factor | 3.5 inches |
| Interface | SAS (Serial Attached SCSI) |
| Spindle Speed | 10,000 RPM |
| Data Transfer Rate | 3Gb/s |
| Cache Size | 16MB |
| Hot-Pluggable | Yes |
| Average Seek Time | 4.5 ms |
| Power Consumption (Active) | 11.1W |
| Power Consumption (Idle) | 8.7W |
| Operating Temperature Range | 0°C to 55°C |
| Non-Operating Temperature | -40°C to 70°C |
| Weight | 0.75 lbs |
| Dimensions (L x W x H) | 5.8 x 4.0 x 1.0 inches |
