Overview

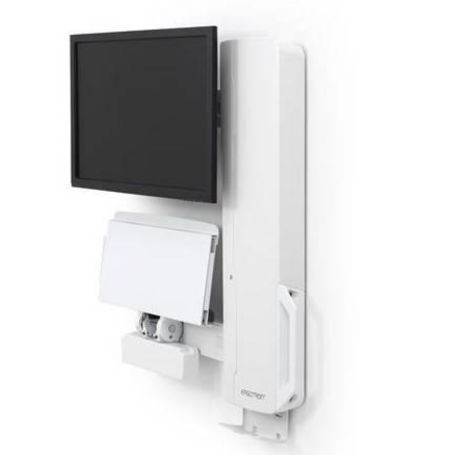

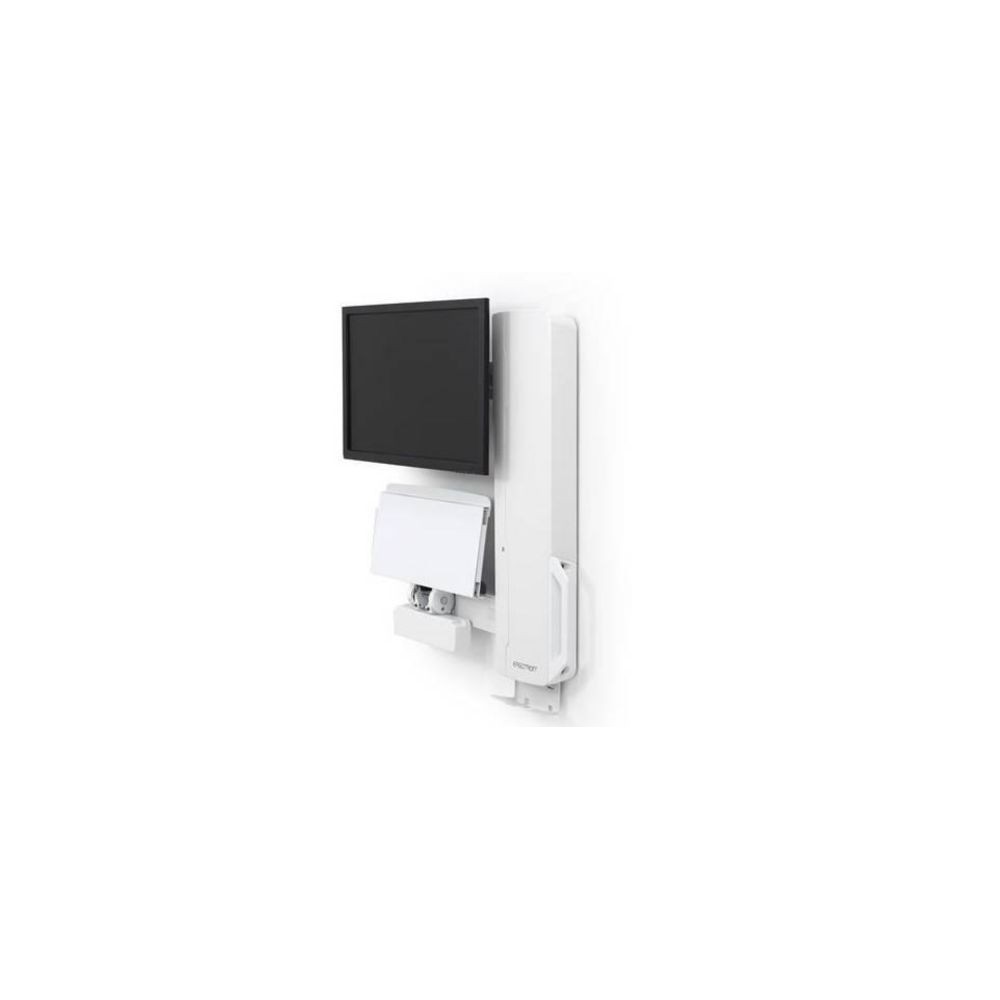

The Ergotron 61-081-062 StyleView Sit-Stand Vertical Lift is a white, wall-mounted workstation designed for high-traffic areas where floor space and wall clearance are important. It combines a monitor mounting system with an integrated keyboard and mouse workspace in a compact assembly.
The workstation moves the display, keyboard and mouse together as the working height changes. Its automatically retracting keyboard tray returns to its stored position when not in use, helping maintain a compact profile in corridors and other space-constrained environments.
Height Adjustment and Ergonomics
The integrated vertical lift provides 18 inches (45.7 cm) of height adjustment, allowing the workstation to accommodate seated and standing working positions. Ergotron Constant Force technology supports smooth vertical movement.
The monitor pivot provides a tilt range of 20 degrees forward and 10 degrees backward. The keyboard tray also supports back-tilt adjustment from 0 to -10 degrees, allowing the work surface to be configured for different working preferences.
Keyboard Tray and Space Management
The automatically retracting keyboard tray returns to its stored position when released. With the keyboard tray retracted, the workstation has a depth of approximately 4 inches (10.2 cm), making it suitable for installations where wall projection must be minimized.
A slide-out mouse tray provides additional working space. The chassis also incorporates a mouse holder, while integrated cable management can be configured on either side of the workstation.
Display Compatibility
The StyleView 61-081-062 supports one compatible flat-panel display, with a typical screen size of up to 24 inches. It uses the VESA MIS-D mounting interface, supporting 75 x 75 mm and 100 x 100 mm mounting-hole patterns.
The workstation has a total load capacity of 5–30 lb (2.3–13.6 kg), including the monitor and the contents of the keyboard tray. The maximum monitor weight is 25 lb (11.3 kg). Both limits must be respected when selecting equipment for the installation.
Key Features
- 18-inch (45.7 cm) vertical lift for sit-stand workstation positioning.
- Automatically retracting keyboard tray reduces the stored depth to approximately 4 inches (10.2 cm).
- Monitor pivot supports 20 degrees of forward tilt and 10 degrees of backward tilt.
- Integrated mouse holder, slide-out mouse tray and wrist rest support the workstation layout.
- Cable management can be configured on either side of the chassis.
Applications
This workstation is intended for high-traffic environments where equipment must remain close to the wall when not in use. Potential applications include healthcare facilities, clinical work areas, corridors and other shared workspaces where staff need access to a monitor and keyboard without permanently occupying a large floor area.
DC Supplies Product Note
When selecting a monitor, calculate the total workstation load rather than checking the display weight alone. The 30 lb limit includes the monitor and items placed on the keyboard tray, and the monitor itself must not exceed 25 lb. Also confirm the wall structure and mounting requirements before installation, particularly in high-traffic locations.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 61-081-062 |
|---|
| Product Type | Wall-mounted sit-stand workstation |
|---|
| Product Series | StyleView |
|---|
| Model | StyleView Sit-Stand Vertical Lift, High Traffic Area |
|---|
| Color | White |
|---|
| Mounting Type | Wall-mounted |
|---|
| Display Support | 1 flat-panel display |
|---|
| Typical Display Size | Up to 24 inches |
|---|
| Total Weight Capacity | 5–30 lb (2.3–13.6 kg), including monitor and keyboard tray contents |
|---|
| Maximum Monitor Weight | 25 lb (11.3 kg) |
|---|
| Vertical Lift | 18 inches (45.7 cm) |
|---|
| Monitor Tilt | 20 degrees forward and 10 degrees backward |
|---|
| Keyboard Tray Tilt | 0 to -10 degrees |
|---|
| VESA Compatibility | MIS-D |
|---|
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
|---|
| Stored Depth | Approximately 4 inches (10.2 cm) |
|---|
| Keyboard Tray | Automatic retraction |
|---|
| Mouse Support | Slide-out mouse tray and integrated mouse holder |
|---|
| Cable Management | Integrated system configurable on either side of the chassis |
|---|
| Lift Technology | Ergotron Constant Force technology |
|---|
| GTIN / EAN | 0698833037661 |
|---|
| Manufacturer Warranty | 5 years, subject to applicable manufacturer terms |
|---|
Frequently Asked Questions
Is the Ergotron 61-081-062 designed for high-traffic areas?
Yes. This StyleView configuration is designed for high-traffic environments where minimizing the workstation's stored depth is important.
How much vertical adjustment does the workstation provide?
The integrated lift provides 18 inches (45.7 cm) of vertical travel for adjusting the working height.
What is the maximum supported monitor weight?
The monitor must not exceed 25 lb (11.3 kg). The overall workstation load must also remain within 30 lb (13.6 kg), including the monitor and items on the keyboard tray.
Which VESA mounting patterns are supported?
The workstation supports VESA MIS-D mounting patterns of 75 x 75 mm and 100 x 100 mm.
Does the keyboard tray retract automatically?
Yes. The keyboard tray automatically returns to its stored position when released, helping reduce the workstation's projection from the wall when it is not in use.
What is included with the workstation?
The listed assembly includes the sit-stand lift chassis, monitor pivot, covers, automatically retracting keyboard tray, slide-out mouse tray, wrist rest and mouse pouch. Confirm the supplied contents against the manufacturer's documentation for the exact configuration.
