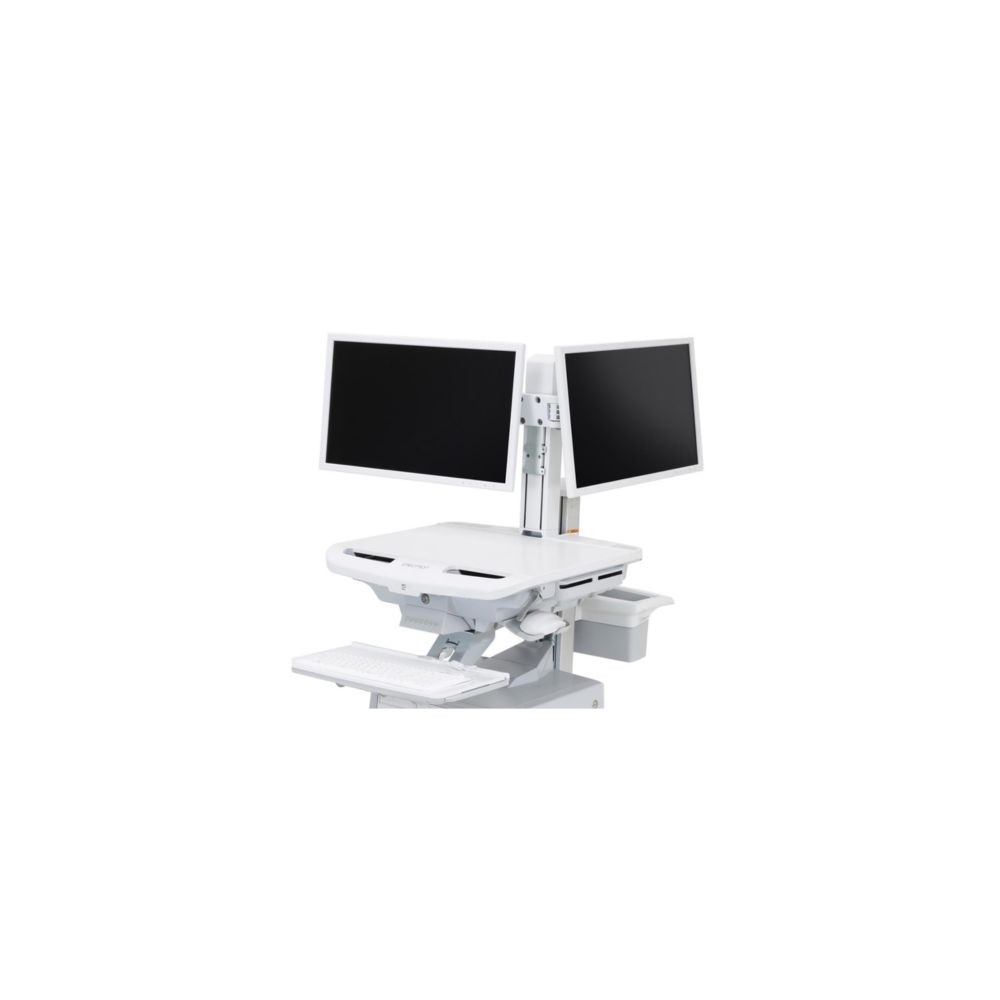

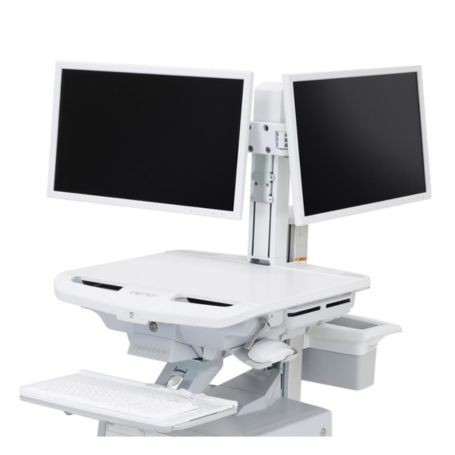

The Ergotron StyleView SV Dual Monitor Kit (98-030) upgrades compatible StyleView medical carts to accommodate two LCD monitors. Designed for clinical workstations, it allows users to position displays side by side or pivot them to share information with colleagues and patients.
The kit combines a height-adjustable lift engine with a hinged monitor support, allowing flexible screen positioning. Integrated cable management helps keep monitor cables organized behind the displays, while the white finish complements compatible Ergotron StyleView cart systems.
Key Features
- Dual-monitor support: Converts a compatible StyleView cart to accommodate two LCD displays up to 24 inches each.
- Height adjustment: Provides 5 inches (12.7 cm) of lift for adjusting the display position.
- Flexible screen positioning: Supports up to 180° of side-to-side panning and 90° of monitor rotation.
- Integrated cable management: Helps route and organize monitor cables behind the screens.
- VESA monitor mounting: Includes two monitor brackets for compatible VESA MIS-D displays.
Flexible Dual-Display Positioning
The hinged support allows the two displays to be positioned for individual viewing or turned toward one another for collaborative viewing. This flexibility can be useful in clinical environments where staff need to review information together while maintaining access to the workstation.
The lift engine provides 5 inches of height adjustment, while the monitor brackets allow up to 90° of rotation. The specified monitor weight range is important for proper operation: the two monitors should have similar weights and remain within the manufacturer's combined load limits.
Cable Management and Installation
The kit includes cable-management hardware to help route cables neatly behind the displays. Its mounting components are designed for compatible Ergotron StyleView LCD carts.
Before installation, verify the cart model, monitor mounting pattern, screen size, and combined monitor weight. The manufacturer recommends this kit for selected StyleView SV42 and SV44 powered carts. Compatibility should be confirmed against the exact cart configuration.
Technical Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Product Line | StyleView |
| Product Name | SV Dual Monitor Kit |
| Manufacturer Part Number | 98-030 |
| EAN / GTIN | 0698833057904 |
| Product Type | Dual-monitor mounting kit |
| Color | White |
| Number of Displays Supported | 2 |
| Maximum Recommended Display Size | 24 inches per display |
| Combined Monitor Weight Capacity | 14–24 lb (6.4–10.9 kg) |
| Recommended Weight per Monitor | 7–12 lb (3.2–5.4 kg), with monitors of similar weight |
| Height Adjustment | 5 in (12.7 cm) |
| Pan Range | 180° |
| Rotation | 90° |
| Mounting Standard | VESA MIS-D |
| Cable Management | Integrated cable-routing hardware |
| Shipping Dimensions | 23 × 6.5 × 7.5 in (58.4 × 16.5 × 19 cm) |
| Shipping Weight | Approximately 10.3 lb (4.7 kg) |
| Recommended Cart Family | Selected Ergotron StyleView SV42 and SV44 LCD carts |
| Warranty | Five years |
Compatibility Considerations
The 98-030 is designed for compatible StyleView LCD carts and is not a universal dual-monitor mount. Check the exact cart model and monitor specifications before purchasing. The combined weight of both displays must fall within the supported range, and the cart's overall load capacity must also be respected.
DC Supplies Product Note
This product is a dual-monitor mounting kit, not a complete medical cart or a pair of monitors. The kit includes the lift engine, hinged bow, two monitor brackets, cable-management components, and attachment hardware. Confirm cart compatibility and monitor weight requirements before ordering.
Frequently Asked Questions
1. What is the Ergotron 98-030?
The Ergotron 98-030 is the StyleView SV Dual Monitor Kit, designed to add dual-monitor capability to compatible Ergotron StyleView medical carts.
2. How many monitors can it support?
The kit supports two LCD monitors, each with a recommended maximum screen size of 24 inches.
3. What is the supported monitor weight range?
The combined monitor weight should be between 14 and 24 lb (6.4–10.9 kg). The recommended weight per monitor is 7–12 lb (3.2–5.4 kg), with both monitors having similar weights.
4. Can the monitors be repositioned?
Yes. The kit provides 5 inches of height adjustment, up to 180° of panning, and up to 90° of rotation.
5. Which carts are compatible?
The kit is recommended for selected Ergotron StyleView SV42 and SV44 powered LCD carts. Confirm the exact model and configuration before ordering.
6. Does the kit include cable management hardware?
Yes. Cable-management components are included to help organize cables behind the monitors.
