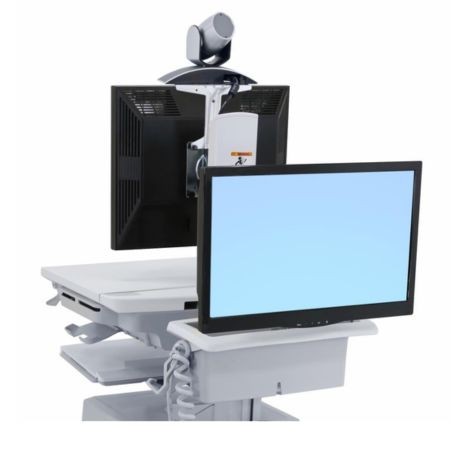

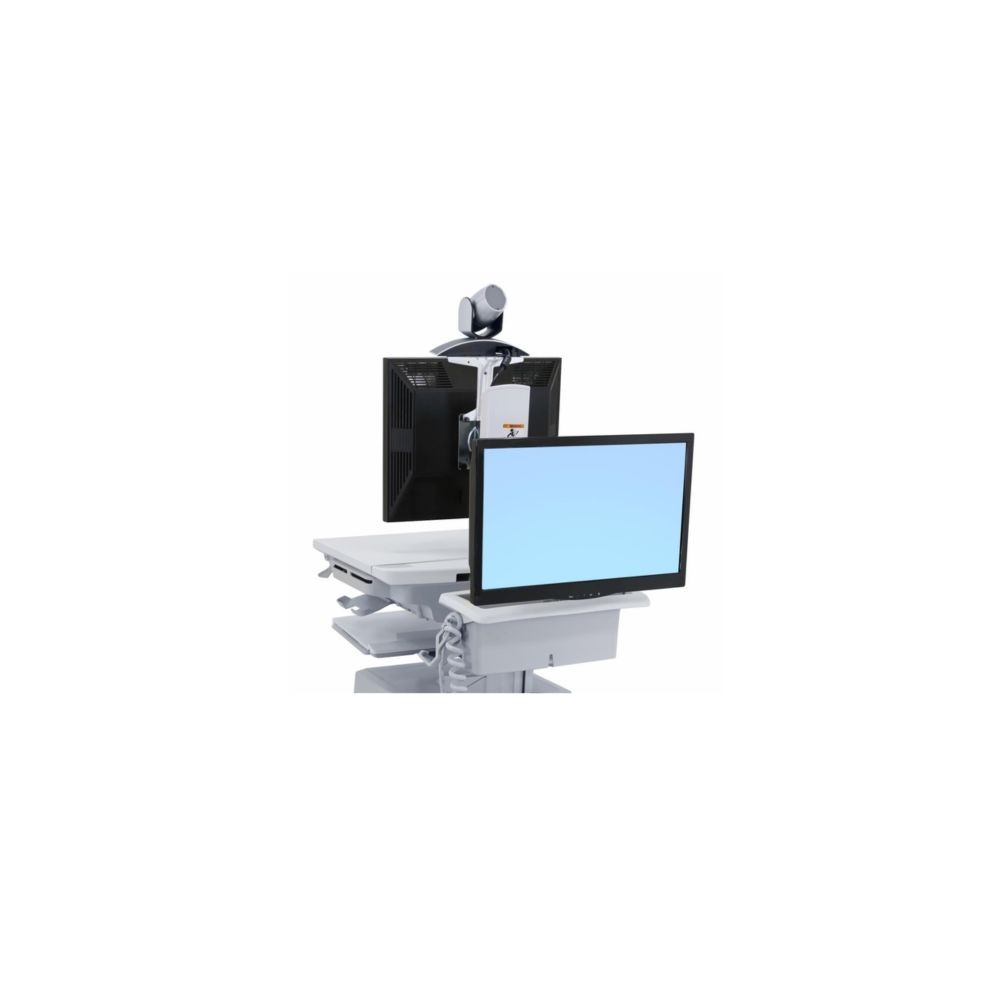

The Ergotron 97-872 SV Telepresence Kit is a conversion accessory designed for compatible Ergotron StyleView SV43 and SV44 mobile carts. It enables a back-to-back monitor configuration for telepresence applications, providing separate viewing positions for a caregiver and a patient.
The kit combines additional display-mounting hardware with dedicated provisions for camera and computing equipment. It is intended for mobile telehealth and video communication deployments where two-sided viewing is required on a single workstation.
Back-to-Back Monitor Configuration
The kit adds a rear LCD pivot to support the second monitor in the back-to-back arrangement. The configuration allows the displays to face opposite directions, supporting separate viewing access from either side of the cart.
The monitor mounting system supports compatible displays up to 22 inches with VESA FDMI MIS-D mounting patterns of 75 × 75 mm or 100 × 100 mm. Actual display compatibility depends on mounting geometry, individual monitor weight, and the overall load limits of the cart.
Equipment Integration
The 97-872 includes components for integrating video conferencing and computing equipment into a compatible StyleView cart. A camera shelf provides a mounting location for compatible camera equipment, while a codec/CPU holder accommodates supported computing hardware.
The kit also includes a large lower drawer, a travel stop, and mounting hardware. These components support the converted workstation configuration without making the kit a complete standalone cart.
Compatibility
The Ergotron 97-872 is designed for compatible StyleView SV43 and SV44 carts. Confirm the exact cart model before ordering, as this accessory is not intended to fit every mobile cart.
Manufacturer and distributor listings identify compatibility with selected models, including SV43-1310-0 and SV44-1311 and SV44-1312 configurations. Confirm the specific model suffix and installed cart options against the manufacturer's compatibility documentation.
- Cart platform: Compatible Ergotron StyleView SV43 and SV44 carts.
- Monitor arrangement: Back-to-back display mounting.
- Monitor interface: VESA 75 × 75 mm or 100 × 100 mm.
- Camera mounting: Dedicated camera shelf for compatible equipment.
- Computing equipment: Codec/CPU holder for supported hardware dimensions.
Key Features
- Back-to-back monitor support: Provides a second display-mounting position for opposite-facing viewing.
- Rear LCD pivot: Adds the mounting component required for the second monitor configuration.
- Camera shelf: Provides a dedicated location for compatible video conferencing camera equipment.
- Codec/CPU holder: Accommodates compatible computing and video communication hardware.
- Integrated storage: Includes a large lower drawer for the converted cart configuration.
Applications
- Mobile telehealth workstations requiring separate clinician and patient viewing positions.
- Video consultation carts used in healthcare facilities.
- Mobile telepresence deployments that require a second monitor facing the opposite direction.
- Reconfiguration of compatible StyleView carts for video communication and remote consultation workflows.
DC Supplies Product Note
Plan the two-monitor arrangement before purchasing the kit. The combined load on the height-adjustment assembly must remain within the manufacturer's 39 lb (17.7 kg) maximum, including the applicable supported components. Check the individual monitor weights, mounting patterns, camera equipment, and computing hardware dimensions. The kit does not include the monitors, camera, codec, or other telepresence equipment.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-872 |
|---|
| Product Type | Back-to-back telepresence conversion kit |
|---|
| Product Name | SV Telepresence Kit, Back-to-Back Monitor |
|---|
| Product Series | StyleView |
|---|
| Compatible Cart Series | StyleView SV43 and SV44 |
|---|
| Monitor Configuration | Back-to-back |
|---|
| Maximum Monitor Size | 22 inches |
|---|
| VESA Mounting Standard | VESA FDMI MIS-D |
|---|
| Supported VESA Patterns | 75 × 75 mm and 100 × 100 mm |
|---|
| Maximum Combined Height-Adjustment Assembly Load | 39 lb (17.7 kg) |
|---|
| Lift Travel | 17 inches (43.2 cm) |
|---|
| Tilt | 25° |
|---|
| Pan | 24° |
|---|
| Rotation | 90° |
|---|
| Camera Shelf Load Limit | 2 lb (approximately 0.9 kg) |
|---|
| Worksurface Load Limit | 5 lb (approximately 2.3 kg) |
|---|
| Keyboard Tray Load Limit | 2 lb (approximately 0.9 kg) |
|---|
| CPU Compartment Load Limit | 13 lb (approximately 5.9 kg) |
|---|
| Drawer Load Limit | 2 lb (approximately 0.9 kg) |
|---|
| Included Components | Rear LCD pivot, large lower drawer, camera shelf, codec/CPU holder, travel stop, and mounting hardware |
|---|
| UPC | 698833047257 |
|---|
| Manufacturer Warranty | 5 years, as listed by distributors |
|---|
Frequently Asked Questions
1. What is the Ergotron 97-872 used for?
It converts a compatible StyleView cart for back-to-back monitor use, supporting telepresence applications where users on opposite sides need separate viewing positions.
2. Which StyleView carts are compatible?
The kit is designed for compatible SV43 and SV44 cart models. Verify the complete cart part number and installed configuration before purchasing.
3. Are the monitors and camera included?
No. The monitors, camera, codec, and other telepresence or computing equipment are not included. The kit supplies mounting and equipment-support components.
4. What monitor mounting patterns are supported?
The mounting interface supports VESA patterns of 75 × 75 mm and 100 × 100 mm. The monitors must also meet the applicable size and load requirements.
5. What is the maximum supported load?
The listed maximum combined load for the height-adjustment assembly is 39 lb (17.7 kg). Individual component limits must also be respected when planning the installation.
6. Is this the same as the Ergotron 97-870?
No. The 97-872 is the back-to-back monitor telepresence kit, whereas the 97-870 is the single-monitor telepresence kit. Select the part number that matches the intended display configuration.
Manufacturer Reference
For product identification and compatibility information, consult the which lists the 97-872 as the SV Telepresence Kit, Back-to-Back Monitor, for SV43/SV44 carts. Additional technical details are available in distributor documentation.
