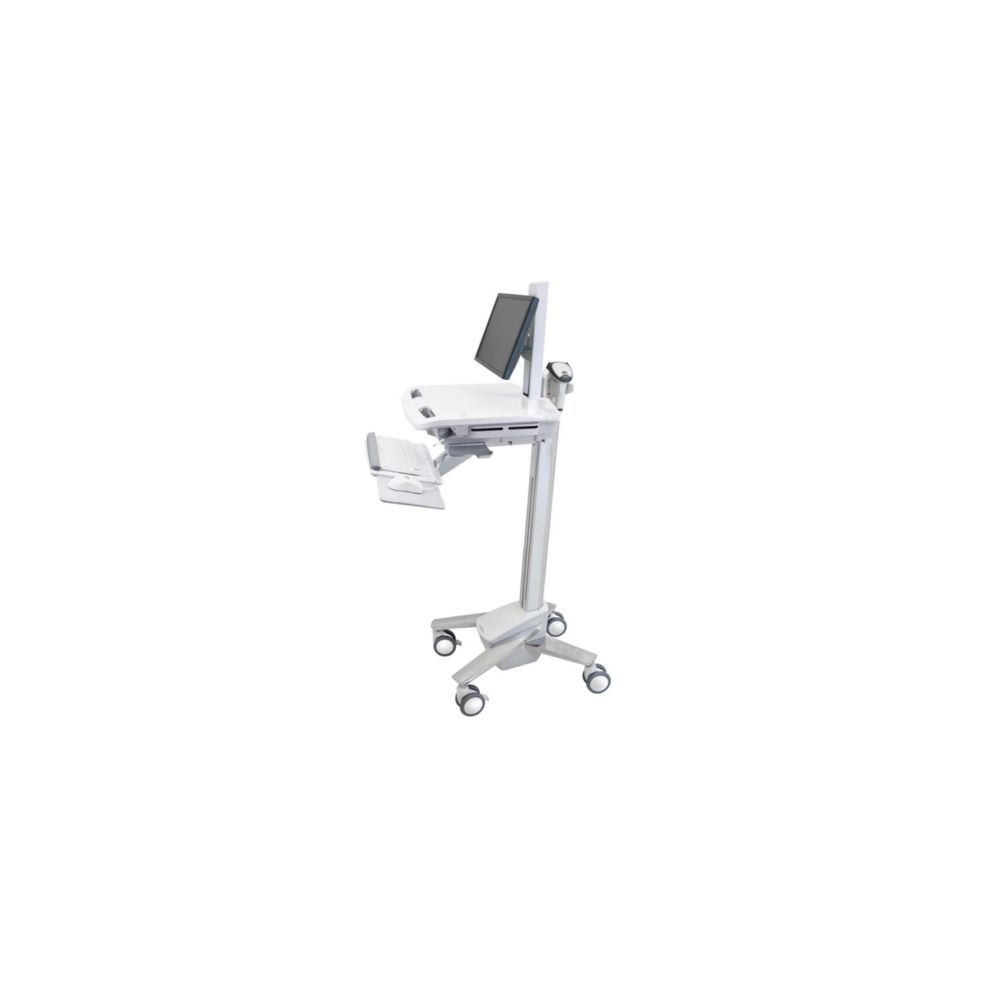

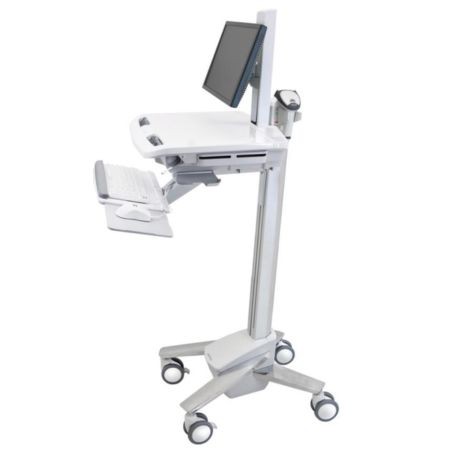

The Ergotron StyleView SV40-6300-0 is a mobile medical workstation designed to support electronic medical record (EMR) tasks in healthcare environments. Its sit-stand height adjustment, independently adjustable LCD pivot, and ergonomic keyboard setup help users work comfortably while moving between patient rooms and clinical work areas. The cart features a white, grey, and polished aluminium finish.
Ergonomic Sit-Stand Workstation
The height-adjustable design allows users to alternate between seated and standing work. The combined LCD and worksurface adjustment provides a 20-inch (51 cm) range, while the LCD pivot adds up to 5 inches (13 cm) of independent screen adjustment.
Adjustable LCD Pivot
The monitor mount supports displays up to 24 inches and offers tilt, pan, and rotation adjustments. VESA MIS-D compatibility supports displays with standard 75 x 75 mm or 100 x 100 mm mounting patterns. Portrait orientation may not be suitable for widescreen displays larger than 19 inches.
Comfortable Keyboard and Mouse Positioning
The workstation includes a back-tilt keyboard tray, wrist rest, and mouse tray that can be positioned for left- or right-handed use. Side-to-side keyboard movement helps users position the work surface for different tasks.
Storage and Mobility
The cart includes a CPU compartment, scanner holder bracket, mouse holder, and cable storage. Its four casters support movement across common clinical floor surfaces, with two front casters locking to help keep the cart stationary when needed. The column's T-slot interface allows compatible accessories to be integrated.
Key Features
- Mobile medical workstation for clinical documentation and EMR workflows.
- Sit-stand height adjustment with up to 25 inches (63.5 cm) of total lift.
- LCD pivot supports displays up to 24 inches with tilt, pan, and rotation.
- Ergonomic keyboard tray, wrist rest, and left/right mouse tray.
- CPU compartment, scanner holder, cable storage, and four casters, including two locking casters.
Typical Applications
- Hospital wards and patient rooms
- Clinical documentation and electronic medical record entry
- Healthcare work areas requiring a mobile computer workstation
- Medical facilities needing adjustable monitor and keyboard positioning
DC Supplies Product Note
Before ordering, confirm that your monitor's weight and VESA mounting pattern are compatible with the cart. The SV40-6300-0 is a non-powered cart; powered accessories or other optional equipment should be verified separately for compatibility and availability.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | SV40-6300-0 |
|---|
| Product Type | Mobile medical workstation cart with LCD pivot |
|---|
| Product Family | StyleView SV40 |
|---|
| Colour / Finish | White, grey, and polished aluminium |
|---|
| Power | Non-powered |
|---|
| Maximum Display Size | 24 inches |
|---|
| Maximum Cart Load | 35 lb (15.9 kg), subject to component load limits |
|---|
| Total Height Adjustment | Up to 25 inches (63.5 cm) |
|---|
| Independent LCD Adjustment | 5 inches (13 cm) |
|---|
| LCD Tilt | 25° |
|---|
| LCD Pan | 24° |
|---|
| LCD Rotation | 90° |
|---|
| VESA Compatibility | MIS-D; 75 x 75 mm and 100 x 100 mm mounting patterns |
|---|
| Worksurface Dimensions | 22.4 x 19.75 inches (56.7 x 50.2 cm) |
|---|
| Base Dimensions | 17 x 21 inches (43 x 53.3 cm), wheel to wheel |
|---|
| Casters | Four 4-inch (10.2 cm) casters; two front casters lock |
|---|
| Included Components | LCD pivot, worksurface, CPU compartment, scanner holder bracket, mouse holder, wrist rest, back-tilt keyboard tray, mouse tray, cable storage, and four casters |
|---|
| Warranty | 5 years for mechanical components; refer to Ergotron for applicable warranty terms |
|---|
Frequently Asked Questions
What monitor size does the SV40-6300-0 support?
The cart is specified for displays up to 24 inches. Confirm monitor weight and VESA compatibility before installation.
Can the cart be used while sitting or standing?
Yes. Its height-adjustable design supports both seated and standing work positions.
Does the monitor mount allow screen adjustment?
Yes. The LCD pivot provides 25° of tilt, 24° of pan, and 90° of rotation, plus independent height adjustment.
Is the cart powered?
No. The SV40-6300-0 is a non-powered cart. Any power system or powered accessories must be confirmed separately.
Does the cart include keyboard and mouse supports?
Yes. It includes a back-tilt keyboard tray, wrist rest, and mouse tray designed for left- or right-side use.
