Overview

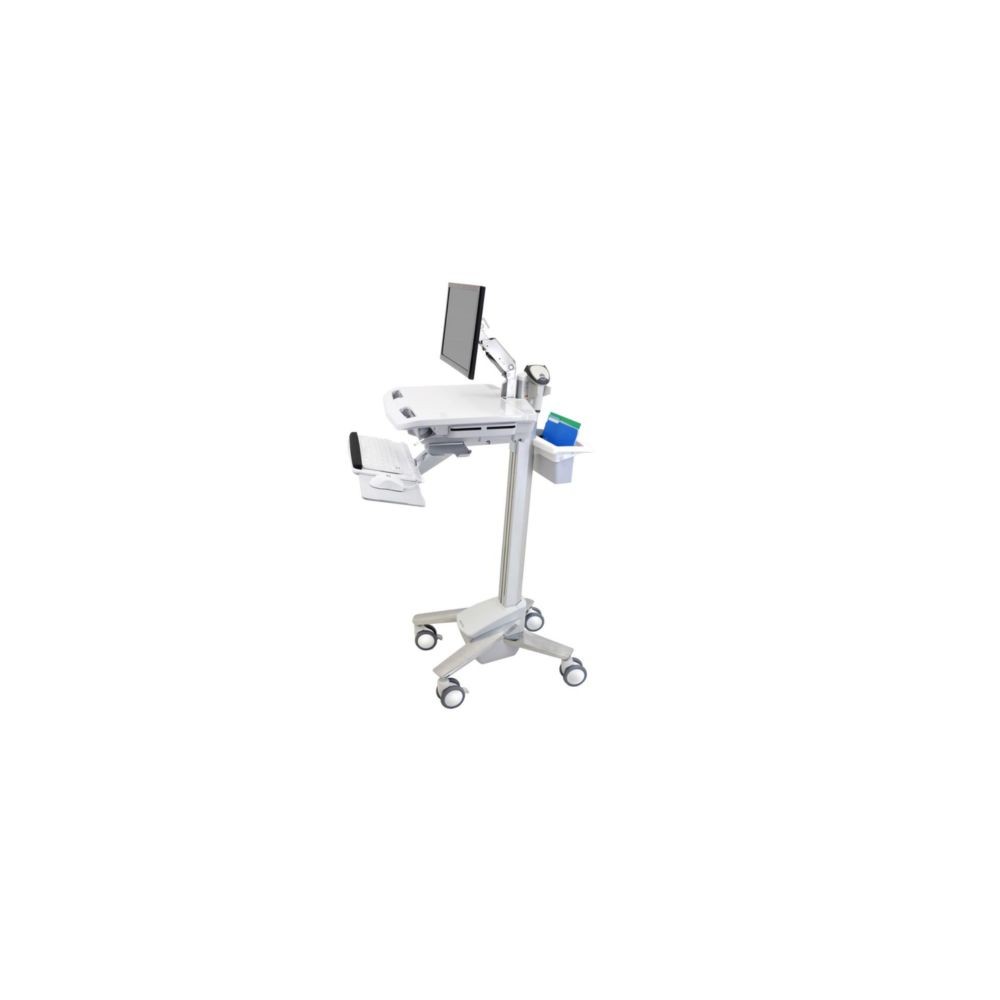

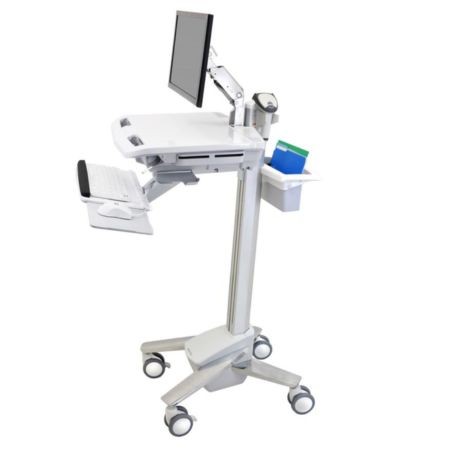

The Ergotron SV41-6200-0 StyleView is a non-powered mobile workstation designed for healthcare facilities and clinical environments. It combines an adjustable LCD arm, ergonomic keyboard workspace, and compact wheeled base to support computer access at the point of care. Its white, grey, and polished-aluminium finish suits professional clinical settings.
Ergonomic Sit-Stand Adjustment
The workstation provides up to 27 inches (68.6 cm) of total height adjustment. The monitor and worksurface can move together through approximately 20 inches (50.8 cm), while the LCD arm provides additional independent positioning. Ergotron Constant Force technology supports smooth adjustment between seated and standing working positions.
Adjustable LCD Arm
The LCD arm supports compatible displays up to 24 inches, subject to weight and mounting requirements. Independent screen positioning helps users adjust the display for different viewing preferences. The arm offers a broad range of motion, including tilt, pan, and rotation.
The display mount supports VESA MIS-D patterns measuring 75 x 75 mm or 100 x 100 mm. Check the monitor's weight, dimensions, and mounting-hole pattern before installation.
Keyboard and Worksurface
The workstation includes a spacious worksurface measuring approximately 22.4 x 19.75 inches (56.7 x 50.2 cm). Its keyboard tray features adjustable back tilt and a wrist rest to support comfortable typing. The mouse holder can be configured for left- or right-handed use.
Mobility and Storage
Four 4-inch (10.2 cm) casters support movement around clinical environments, with two front casters that lock to help keep the cart stationary. A rear storage basket provides space for frequently used items. The column's T-slot interface supports compatible accessories, such as selected storage components and equipment mounts.
Key Features
- 27 inches (68.6 cm) of total height adjustment.
- LCD arm with independent positioning, tilt, pan, and rotation.
- Supports compatible monitors up to 24 inches, with a 35 lb (15.9 kg) total cart capacity.
- Ergonomic keyboard tray with adjustable back tilt and wrist rest.
- Four 4-inch casters, two locking front casters, and a rear storage basket.
Cable Management and Accessory Support
Integrated cable-management features help organize cords and maintain a tidy workstation. The open-architecture design accommodates compatible computer configurations, including thin clients and other supported equipment. Additional drawers, bins, power systems, and accessories may be available separately.
Typical Applications
- Hospital wards and patient-care areas
- Electronic medical record access
- Clinical documentation and point-of-care computing
- Healthcare workspaces requiring a mobile sit-stand workstation
DC Supplies Product Note
The SV41-6200-0 is the white StyleView configuration with an LCD arm and a non-powered cart design. Confirm the monitor's weight and VESA compatibility before ordering. The computer, monitor, keyboard, mouse, and optional storage accessories should not be assumed to be included unless explicitly specified in the seller's package details.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | SV41-6200-0 |
|---|
| Product Type | Mobile medical workstation cart with LCD arm |
|---|
| Product Series | StyleView SV41 |
|---|
| Configuration | LCD arm, non-powered |
|---|
| Colour | White, grey, and polished aluminium |
|---|
| Recommended Display Size | Up to 24 inches |
|---|
| Maximum Total Load Capacity | 35 lb (15.9 kg) |
|---|
| Total Height Adjustment | 27 inches (68.6 cm) |
|---|
| Monitor and Worksurface Adjustment | Approximately 20 inches (50.8 cm) in tandem |
|---|
| Independent LCD Arm Adjustment | Approximately 7 inches (17.8 cm) |
|---|
| Monitor Tilt | Approximately +60 degrees / -5 degrees |
|---|
| Monitor Pan | 180 degrees |
|---|
| Monitor Rotation | 360 degrees |
|---|
| VESA Compatibility | MIS-D, 75 x 75 mm and 100 x 100 mm |
|---|
| Worksurface Dimensions | 22.4 x 19.75 inches (56.7 x 50.2 cm) |
|---|
| Base Dimensions | 17 x 21 inches (43 x 53.3 cm), wheel-to-wheel |
|---|
| Cart Weight | 59 lb (26.8 kg) |
|---|
| Casters | Four 4-inch (10.2 cm) casters, with two locking front casters |
|---|
| Keyboard Tray | Adjustable back tilt with wrist rest |
|---|
| Mouse Support | Mouse holder configurable for left- or right-handed use |
|---|
| Construction | Plastic, aluminium, and zinc-plated steel |
|---|
| Power Configuration | Non-powered; compatible power accessories may be available separately |
|---|
| Included Components | StyleView cart, LCD arm, worksurface, keyboard tray, wrist rest, mouse holder, rear storage basket, and cable-management components |
|---|
| Warranty | 5 years for mechanical components; confirm applicable regional terms |
|---|
| UPC | 698833022735 |
|---|
Frequently Asked Questions
1. What is the Ergotron SV41-6200-0 used for?
It is a mobile medical workstation designed for healthcare environments, providing adjustable monitor positioning and an ergonomic computer workspace.
2. What size monitor can it support?
The recommended display size is up to 24 inches. Actual compatibility depends on the monitor's weight and VESA mounting pattern.
3. How much height adjustment does the cart provide?
The cart provides up to 27 inches (68.6 cm) of total height adjustment, including tandem movement and independent LCD-arm positioning.
4. Which VESA mounting patterns are supported?
The LCD arm supports VESA MIS-D patterns measuring 75 x 75 mm and 100 x 100 mm.
5. Does this model include a powered system?
No. The SV41-6200-0 is a non-powered configuration. Compatible power accessories may be available separately.
6. Are drawers and additional storage accessories included?
The cart includes its specified rear storage basket and standard components. Additional drawers, bins, and accessories may be optional, so verify the package contents before ordering.
