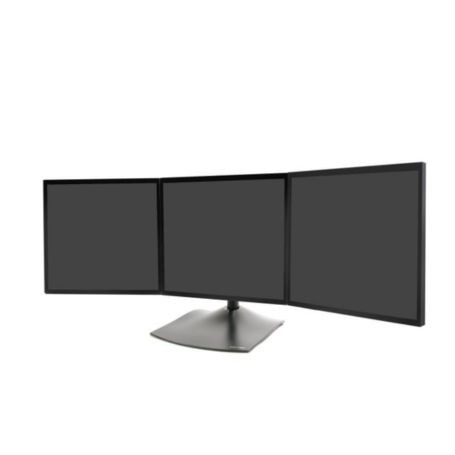

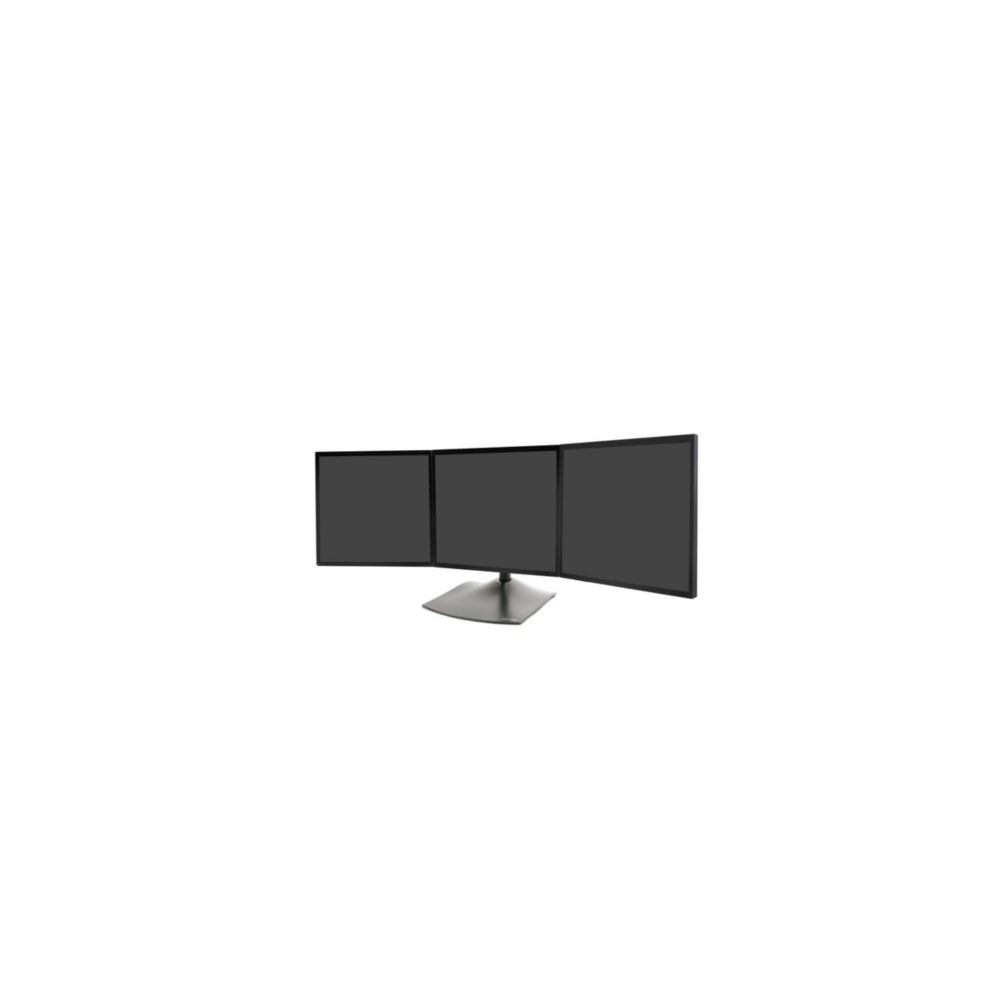

The Ergotron DS100 Triple Monitor Desk Stand, Horizontal is a freestanding display mounting solution designed to support three compatible monitors in a side-by-side configuration. Its extended crossbar and versatile mounting brackets help create an organized multi-screen workstation for office productivity, data analysis, content creation, and other demanding workflows.
Finished in black, the DS100 combines durable aluminium and steel construction with a stable desktop base. Its Paraview™ mounting design supports flexible screen positioning, while integrated cable management helps keep monitor connections organized behind the displays.
Key Features
- Three-monitor support: Arrange three compatible displays horizontally using the 46-inch (1168 mm) crossbar.
- High weight capacity: Supports up to 31 lb (14 kg) per monitor, with a maximum combined monitor load of 93 lb (42 kg).
- 360° screen rotation: Rotate compatible displays between portrait and landscape orientations.
- Flexible display arrangement: Sliding brackets and centre mounting brackets help position the screens in a practical viewing layout.
- Integrated cable management: Helps route monitor cables neatly for a cleaner workstation.
Expand Your Workspace with Three Displays
The DS100 Triple Monitor Desk Stand is designed for users who need several screens available at the same time. The horizontal crossbar supports a three-display layout, allowing applications, documents, dashboards, and reference material to remain visible across the workstation.
Ergotron's Paraview design helps position the displays for convenient viewing. The mounting brackets support 360° screen rotation, allowing compatible monitors to be oriented in portrait or landscape mode. The stand does not provide independent height, tilt, or pan adjustment at the display brackets.
Monitor Compatibility and Weight Capacity
This model is intended for displays with a typical screen size of up to 21 inches. Ergotron's dimensional guidance specifies a maximum physical display width of approximately 20 inches (508 mm) for the triple-monitor crossbar, assuming monitors are approximately 4 inches (102 mm) thick. Thinner displays may allow additional width, but the physical dimensions of all three monitors must be checked before purchase.
Each display can weigh up to 31 lb (14 kg), giving the stand a maximum combined monitor capacity of 93 lb (42 kg). Every monitor must remain within the individual weight limit and use a compatible mounting pattern.
VESA Mounting and Flexible Positioning
The DS100 supports VESA MIS-D mounting patterns, including 75 × 75 mm and 100 × 100 mm. The horizontal crossbar and supplied mounting brackets are designed to accommodate three compatible flat-panel displays in one coordinated arrangement.
The stand uses a freestanding base, so the standard configuration does not require a desk-edge clamp. An optional grommet-mount base, part number 60-350-200, is available separately for compatible installations through a desk opening.
Durable Construction and Cable Organization
Constructed from aluminium and steel, the DS100 provides a sturdy support structure for a multi-monitor setup. The low-profile base helps preserve usable desktop space, while the cable-management system helps keep display wiring organized.
Its modular mounting components make the DS100 a practical choice for professional environments where three screens are needed in a fixed horizontal arrangement.
DC Supplies Product Note
Before ordering, measure the physical width and thickness of all three monitors and confirm their VESA patterns and weights. The manufacturer's approximately 20-inch display-width guidance assumes a monitor thickness of 4 inches (102 mm); screen size alone does not guarantee that a display will fit. The standard configuration includes a freestanding base. The optional grommet-mount base is sold separately.
Technical Specifications
| Brand | Ergotron |
|---|
| MPN | 33-323-200 |
|---|
| Product Type | Triple-monitor desk stand |
|---|
| Product Series | DS100 |
|---|
| Colour | Black |
|---|
| Display Configuration | Three monitors, horizontal arrangement |
|---|
| Typical Display Size | Up to 21 inches per monitor |
|---|
| Maximum Physical Display Width | Approximately 20 inches (508 mm), assuming 4-inch monitor thickness |
|---|
| Maximum Load per Monitor | 31 lb (14 kg) |
|---|
| Maximum Combined Monitor Load | 93 lb (42 kg) |
|---|
| Crossbar Width | 46 inches (1168 mm) |
|---|
| Overall Dimensions | Approximately 46 × 12.4 × 14.3 inches (1168 × 315 × 363 mm) |
|---|
| Pole Height | 14 inches (356 mm) |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Screen Rotation | 360°; portrait and landscape orientations |
|---|
| Height Adjustment at Display Brackets | Not specified |
|---|
| Tilt and Pan | Not available at the display brackets |
|---|
| Mounting Type | Freestanding desktop base |
|---|
| Construction | Aluminium and steel |
|---|
| Cable Management | Integrated cable-routing system |
|---|
| Included Components | Base, 14-inch pole, Paraview crossbar, two sliding brackets, one angled centre bracket and one flat centre bracket |
|---|
| Optional Mounting Accessory | Grommet-mount base, part number 60-350-200, sold separately |
|---|
| Warranty | 5 years |
|---|
Frequently Asked Questions
1. How many monitors does the Ergotron DS100 33-323-200 support?
This model supports three compatible monitors arranged horizontally along its 46-inch crossbar.
2. What is the maximum weight capacity?
Each monitor can weigh up to 31 lb (14 kg), with a maximum combined monitor load of 93 lb (42 kg).
3. What size monitors are compatible?
Ergotron specifies a typical maximum screen size of 21 inches. The physical width and thickness of each display must also be checked to confirm that all three fit on the crossbar.
4. Which VESA mounting patterns does it support?
The stand supports VESA MIS-D mounting patterns of 75 × 75 mm and 100 × 100 mm.
5. Can the monitors rotate into portrait orientation?
Yes. The mounting system supports 360° screen rotation, allowing compatible displays to be positioned in portrait or landscape orientation.
6. Does the stand include a grommet mount?
The standard model includes a freestanding base. The compatible grommet-mount base, part number 60-350-200, is sold separately.
