Ergotron 33-091-200 – DS100 Dual-Monitor Desk Stand Vertical
Overview

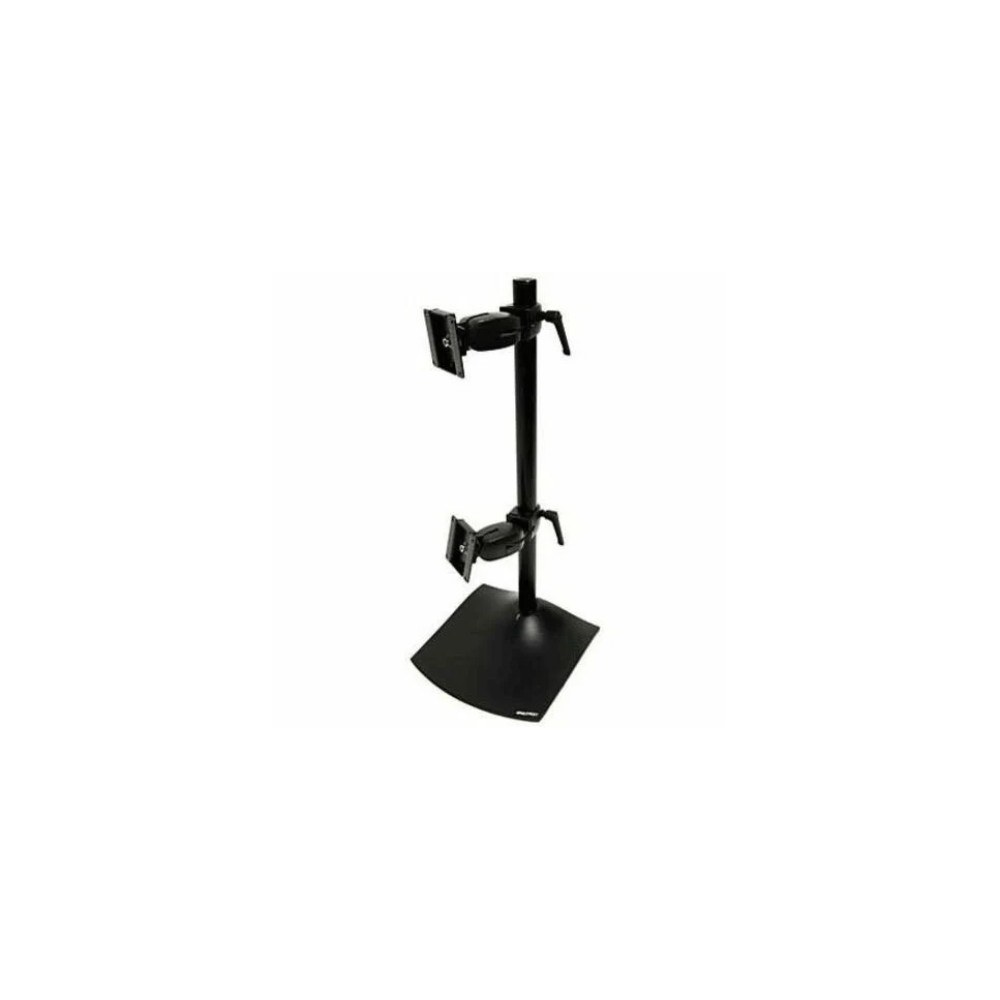

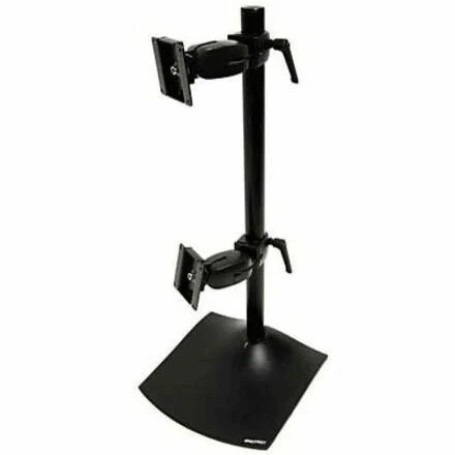

The Ergotron 33-091-200 DS100 Dual-Monitor Desk Stand, Vertical is a black fixed-height desktop mounting system designed to position two flat-panel displays vertically on a single base. Its 28-inch pole and dual clamping pivots allow the monitors to be arranged one above the other while preserving desktop space.
Technical Information
Each monitor position supports up to 23 lb (10.4 kg). The DS100 vertical configuration provides 180° tilt, 180° pan and 360° portrait-to-landscape rotation. The stand uses Ergotron's Paraview positioning approach to arrange multiple displays at suitable viewing angles and includes cable management for organized routing.
Compatibility
The 33-091-200 supports displays using VESA MIS-D mounting patterns, including 75 × 75 mm and 100 × 100 mm hole patterns. Ergotron specifies a typical display size of up to 24 inches for this vertical configuration. The stand includes a free-standing base and 28-inch pole; a DS100 grommet mount base, part 60-350-200, is available separately.
Key Features
- Supports two monitors in a vertical stacked configuration
- 23 lb (10.4 kg) capacity per monitor
- 180° tilt and 180° pan adjustment
- 360° portrait-to-landscape display rotation
- Low-profile free-standing base with integrated cable management
Applications
The 33-091-200 is suited to professional offices, monitoring stations, trading workstations, control desks and other environments where two displays need to occupy a compact desktop footprint. The vertical arrangement is particularly useful when horizontal desk space is limited.
DC Supplies Product Note
The 33-091-200 is the complete DS100 vertical dual-monitor desk-stand configuration, including the free-standing base and 28-inch pole. It should not be confused with the DS100 horizontal configurations such as 33-322-200 or the individual DS100 clamping pivots.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 33-091-200 |
|---|
| Product | DS100 Dual-Monitor Desk Stand, Vertical |
|---|
| Product Type | Dual-monitor desktop stand |
|---|
| Series | DS100 |
|---|
| Color | Black |
|---|
| Number of Displays | 2 |
|---|
| Display Configuration | Vertical / stacked |
|---|
| Typical Display Size | Up to 24 in |
|---|
| Capacity Per Monitor | 23 lb (10.4 kg) |
|---|
| Total Display Capacity | 46 lb (20.9 kg) |
|---|
| Pole Height | 28 in (711 mm) |
|---|
| Tilt | 180° |
|---|
| Pan | 180° |
|---|
| Rotation | 360° portrait-to-landscape |
|---|
| VESA Compatibility | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Mounting | Free-standing desktop base |
|---|
| Construction | Aluminum and steel |
|---|
| Cable Management | Integrated |
|---|
| Shipping Weight | 16 lb (7.3 kg) |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 33-091-200?
The 33-091-200 is the Ergotron DS100 Dual-Monitor Desk Stand in the vertical configuration, designed to mount two displays one above the other.
How many monitors does it support?
The stand supports two monitors.
What is the weight capacity?
Each monitor position supports up to 23 lb (10.4 kg), providing a combined display capacity of 46 lb (20.9 kg).
What display size is supported?
Ergotron's catalog specifies a typical display size of up to 24 inches for the vertical 33-091-200 configuration.
Can the monitors be positioned vertically?
Yes. The 33-091-200 is specifically configured for vertically stacked displays on a single 28-inch pole.
What VESA patterns are supported?
The DS100 uses VESA MIS-D mounting compatibility, including 75 × 75 mm and 100 × 100 mm mounting patterns.
What adjustment range is available?
Each display provides 180° tilt, 180° pan and 360° portrait-to-landscape rotation.
Does the stand include the base and pole?
Yes. The 33-091-200 configuration includes the free-standing base and 28-inch pole with two clamping double pivots.
Can it be converted to a grommet-mounted configuration?
Ergotron lists the 60-350-200 DS100 Grommet Mount Base as an available base option. It is ordered separately.
Does the stand provide cable management?
Yes. The DS100 system includes cable management for organizing and routing display cables.
What is the warranty?
The 33-091-200 carries a 5-year warranty.
