Overview

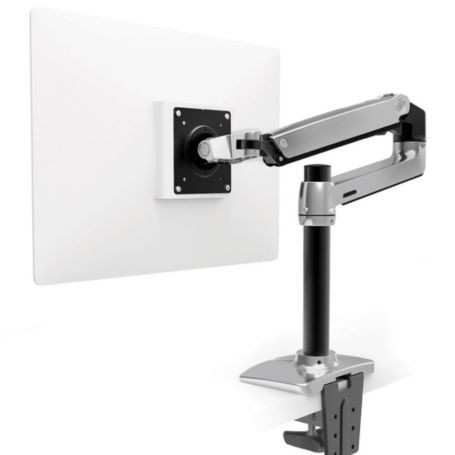

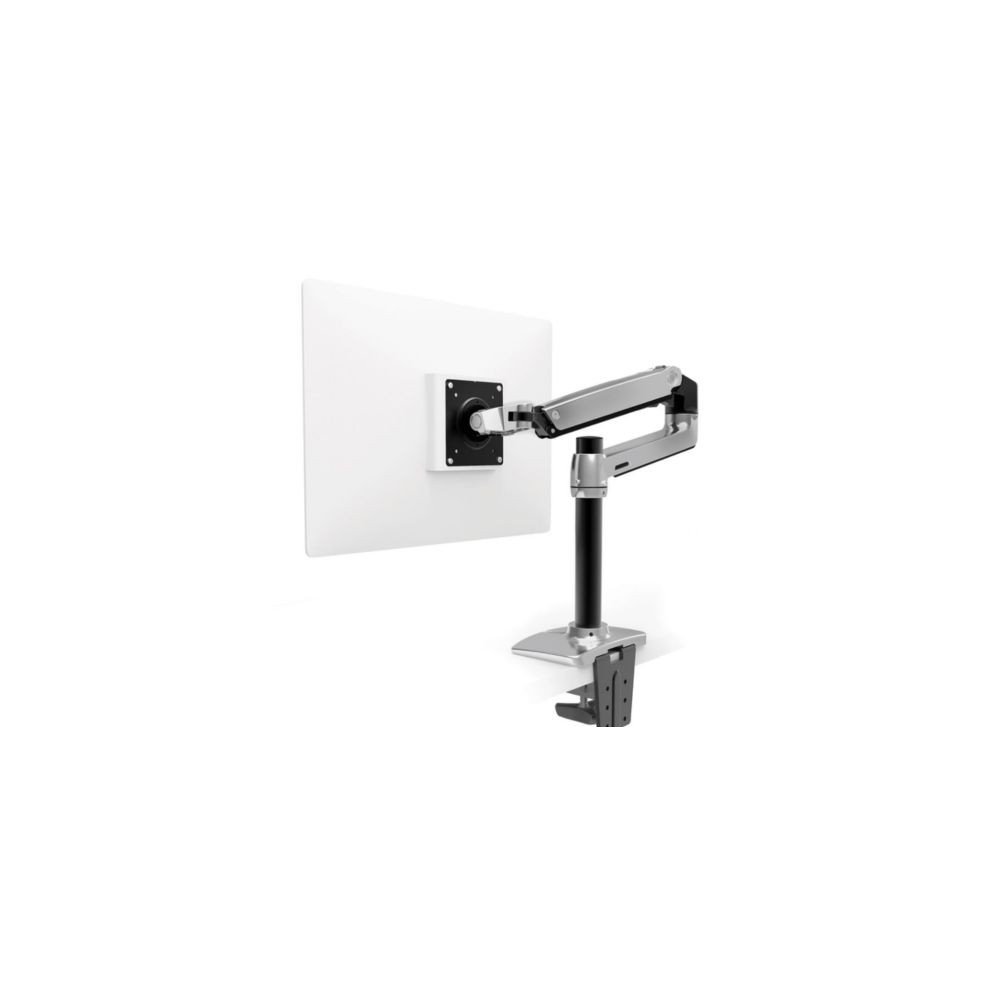

The Ergotron 45-295-026 LX Desk Monitor Arm, Tall Pole provides adjustable desk-mounted positioning for a single monitor. Its taller pole increases the available vertical positioning range above the worksurface while the LX arm provides broad reach and movement for ergonomic display placement.
Display Support
The 45-295-026 supports displays up to 34 inches with a rated weight capacity of 7–25 lb (3.2–11.3 kg). Ergotron notes that display size is an approximation and that a larger screen can be used when its weight remains within the mount's rated capacity.
Tall-Pole Configuration
This exact MPN uses a tall 34 cm (approximately 13-inch) pole. The elevated mounting configuration provides additional vertical range above the desk compared with the standard-pole LX configuration.
Adjustment and Movement
The LX arm provides 13 inches (33 cm) of vertical lift, 75° of tilt, 360° of pan, and 360° of monitor rotation. The arm can extend up to 25 inches (64 cm), allowing the display to be positioned forward or folded back toward the base when not in use.
Desk Mounting
The 45-295-026 includes a standard two-piece desk clamp and a grommet mount. The clamp is specified for worksurfaces approximately 25–35 mm (0.98–1.38 inches) thick, while the included grommet mounting option provides an alternative installation method where the desk has a suitable opening.
VESA Compatibility
The monitor attachment uses VESA FDMI MIS-D with 100 x 100 mm and 75 x 75 mm mounting patterns.
Key Features
- Supports a single display up to 34 inches and 25 lb
- 34 cm tall pole provides additional vertical positioning range
- 13-inch (33 cm) lift with 75° tilt
- 360° pan and 360° monitor rotation
- Up to 25 inches (64 cm) of extension
Applications
The 45-295-026 is suited to desk-mounted single-monitor installations where additional vertical clearance is useful. Its tall-pole configuration is particularly relevant when the display needs to be positioned higher above the worksurface or when additional monitor positioning range is required.
DC Supplies Product Note
For installation planning, check the monitor's actual weight and VESA pattern first. The 25 lb rating is the maximum specified load, while the tall pole is the defining feature of this exact 45-295-026 configuration.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-295-026 |
| Product Type | LX Desk Monitor Arm, Tall Pole |
| Color / Finish | Polished Aluminum |
| Display Configuration | Single monitor |
| Maximum Display Size | 34 inches |
| Weight Capacity | 7–25 lb (3.2–11.3 kg) |
| Lift | 13 inches (33 cm) |
| Tilt | 75°; 70° upward / 5° downward |
| Pan | 360° |
| Monitor Rotation | 360° |
| Maximum Extension | 25 inches (64 cm) |
| Pole Height | 34 cm (approximately 13 inches) |
| VESA Standard | VESA FDMI MIS-D |
| VESA Patterns | 75 x 75 mm and 100 x 100 mm |
| Desk Clamp | Standard two-piece desk clamp |
| Compatible Worksurface Thickness | 25–35 mm (0.98–1.38 inches) |
| Grommet Mount | Included |
| Construction | Polished aluminum with steel components |
| Product Weight | 9.9 lb (4.5 kg) |
| Warranty | 10 years |
| GTIN | 00698833020625 |
Package Contents
- LX monitor arm
- Extension
- 34 cm tall pole
- Standard two-piece desk clamp
- Grommet mount
- Monitor mounting hardware
FAQs
What monitor size does the Ergotron 45-295-026 support?
The mount is specified for displays up to 34 inches, subject to the 25 lb weight capacity and supported VESA pattern.
What is the maximum monitor weight?
The rated capacity is 7–25 lb (3.2–11.3 kg).
What makes the 45-295-026 different from the standard LX desk arm?
The 45-295-026 uses a tall 34 cm pole, providing additional vertical positioning range above the worksurface.
Which VESA patterns are supported?
It supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
How far can the arm extend?
The LX arm can extend up to 25 inches (64 cm).
Does it include both clamp and grommet mounting?
Yes. The exact 45-295-026 configuration includes a standard two-piece desk clamp and a grommet mount.
