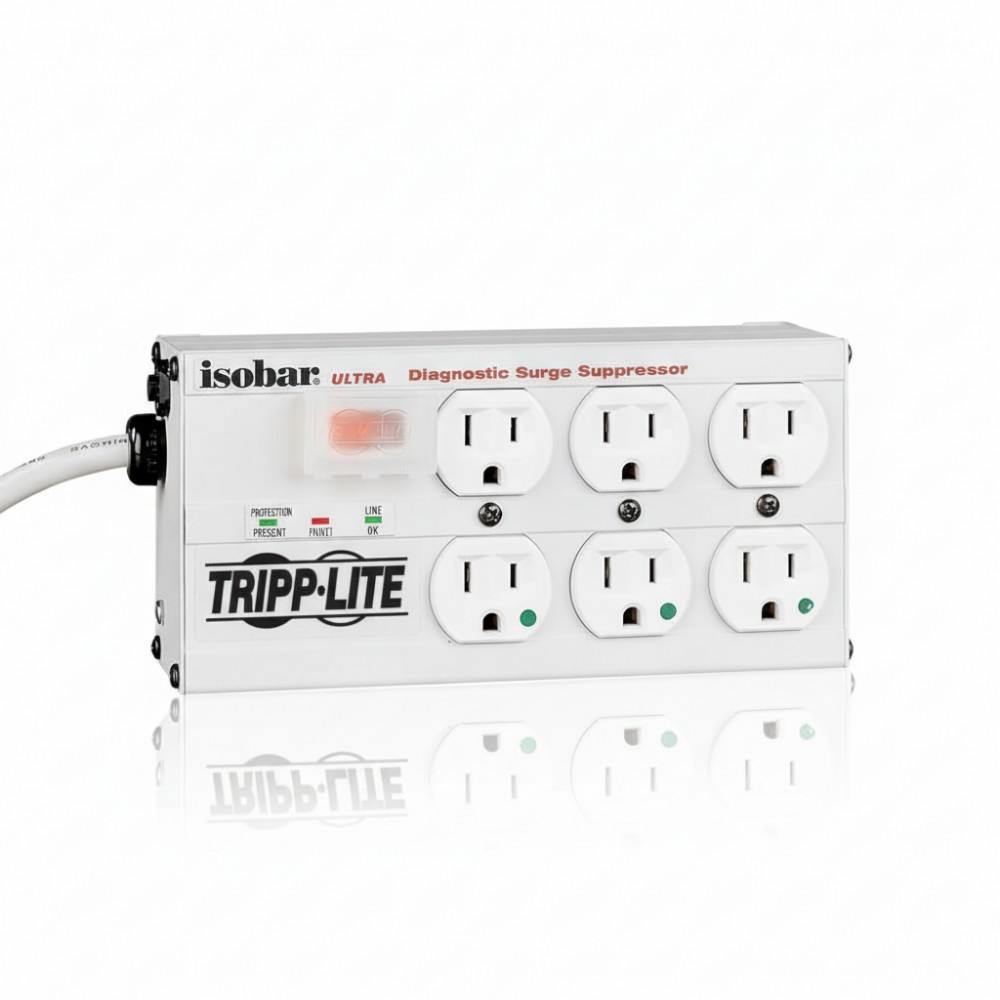

Eaton ISOBAR6ULTRAHG - 6-Outlet Hospital-Grade Surge Protector

Overview

The Eaton ISOBAR6ULTRAHG is a hospital-grade surge protector designed to deliver AC surge suppression and EMI/RFI noise filtering for sensitive electrical and electronic equipment in commercial, healthcare, and critical infrastructure environments. It is typically deployed by facilities engineers, IT operations teams, and AV/network technicians to protect multiple devices from voltage surges, spikes, and line noise on 120 V AC circuits. This model adheres to UL 1363 and UL 1449 standards, making it suitable for use outside patient-care vicinities where hospital-grade outlets are required.

The unit offers six hospital-grade NEMA 5-15R receptacles arranged in isolated filter banks that limit interaction between plugged loads, minimizing noise and interference across outlets. Surge suppression is rated at 3330 joules with a high surge current rating (up to ~48 kA), providing robust energy absorption against transient events, and includes diagnostic LEDs to indicate protection status, line faults, and power presence.

Mechanically, the ISOBAR6ULTRAHG uses a rugged all-metal housing with a 15 ft (4.57 m) power cord terminated with a hospital-grade NEMA 5-15P-HG plug. The design incorporates keyhole mounting tabs for wall or horizontal surface attachment and a transparent locking switch cover that reduces the risk of accidental shut-off.

Integration is purely physical × there are no network management, UPS functionalities, or remote monitoring interfaces. It interoperates with facility power infrastructure (120 V AC, 50/60 Hz) and is intended for downstream protection of servers, networking gear, AV systems, and diagnostics equipment where line quality and surge absorption are crucial. Confirm that receptacle style and hospital-grade requirements align with local electrical codes and equipment specifications.

A practical deployment example is placing the ISOBAR6ULTRAHG in a network closet, broadcasting rack, or reception area to protect multiple networking and AV devices fed from a single branch circuit while satisfying hospital-grade receptacle mandates in healthcare adjacent spaces. It is not appropriate in patient-care vicinities where different compliance requirements apply, or where integrated UPS backup functionality is necessary; in such cases consider dedicated medical-grade UPS solutions.

Key Features

• Six hospital-grade NEMA 5-15R outlets with isolated filter banks
• 3330 joule surge suppression with high surge current absorption
• 15 ft hospital-grade power cord, NEMA 5-15P-HG plug
• Diagnostic LEDs for protection, line fault, and power status
• All-metal housing with locking switch cover and mounting tabs

Specifications
