Overview

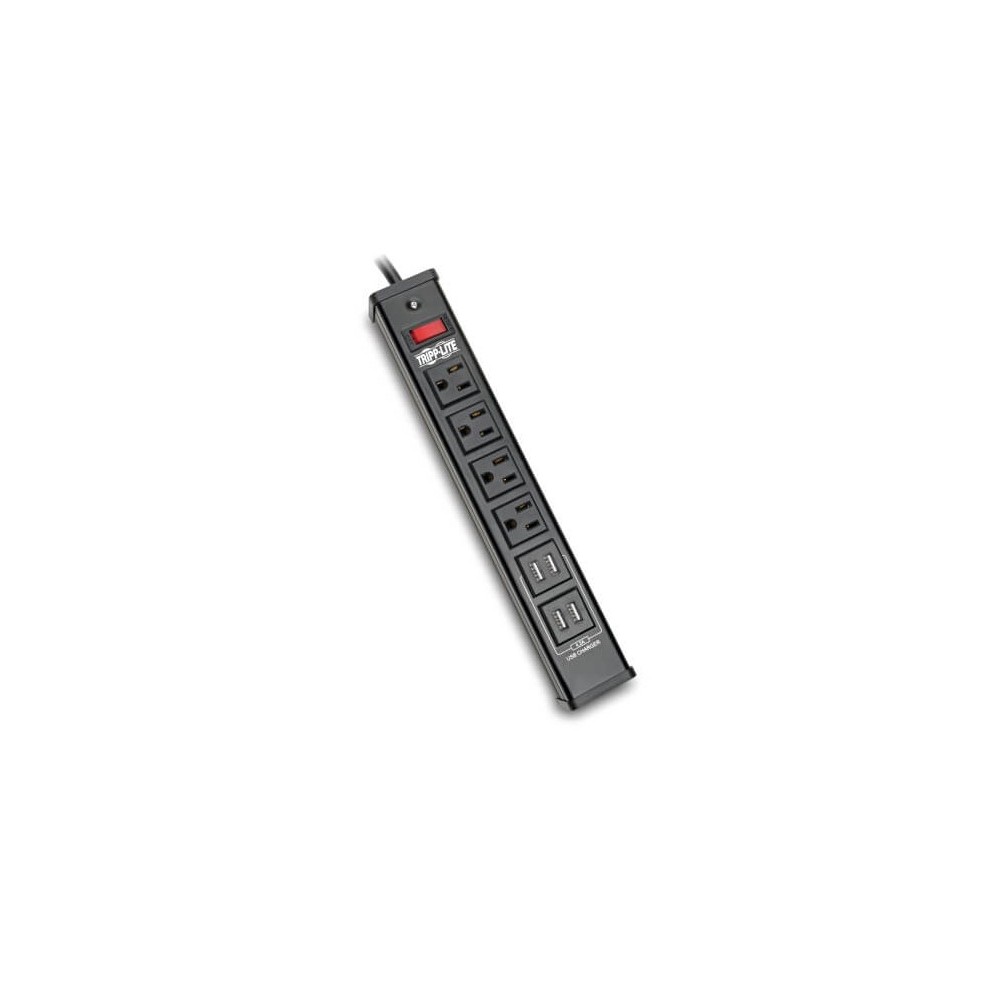

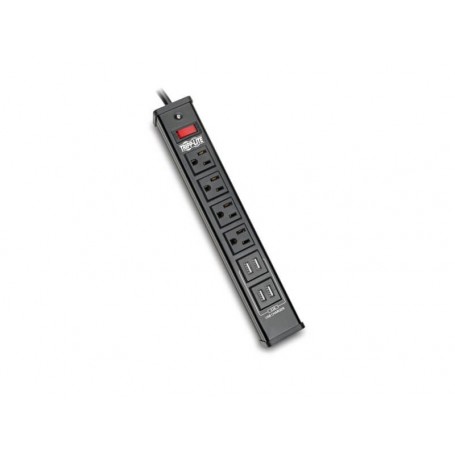

The Eaton Tripp Lite TLM446USBB Protect It! is a 4-outlet surge protector with a durable metal housing and four USB-A charging ports. It provides 450 joules of AC surge suppression for compatible 120V equipment while also filtering EMI/RFI line noise. A 6-foot power cord, integrated 15A resettable circuit breaker, illuminated power switch, and diagnostic LED provide additional functionality for home, office, retail, and workstation installations.
AC Power and Surge Protection
The TLM446USBB provides four NEMA 5-15R AC outlets for connecting compatible 120V equipment. Its surge suppression circuitry is rated at 450 joules and protects against power surges and spikes in normal-mode and common-mode configurations. The unit has a 15A electrical rating and is designed for a recommended 120V service.
USB Charging
Four USB-A charging ports are integrated into the surge protector for charging compatible phones, tablets, Amazon Kindle devices, and other USB-powered mobile equipment. The four USB ports share a total charging capacity of 4.2A. The 4.2A figure is a combined allocation for the USB charging ports rather than 4.2A available independently from each port.
Noise Filtering
Integrated EMI/RFI filtering helps reduce electromagnetic and radio-frequency interference on the AC line. The filtering is intended to reduce disruptive line noise that can affect connected electronic equipment.
Construction and Controls
The TLM446USBB uses a metal housing and has a single row of four AC outlets. A combination illuminated red power switch and 15A circuit breaker provides power control and overload protection. A diagnostic LED indicates the status of the surge protection circuitry.
Key Features
- Four NEMA 5-15R AC outlets for compatible 120V equipment
- Four USB-A charging ports with 4.2A total shared charging capacity
- 450-joule AC surge suppression with less than 1 ns response time
- Metal housing with EMI/RFI line-noise filtering
- 6-foot 14 AWG SJT power cord with NEMA 5-15P plug and integrated 15A circuit breaker
Applications
The TLM446USBB is intended for installations requiring a small number of protected AC connections together with convenient USB charging. Suitable applications include home and office workstations, retail counters, shared work areas, computer and peripheral setups, and other locations using compatible 120V electronics.
DC Supplies Product Note
The four USB-A ports have a combined 4.2A charging allocation, so the available USB charging current is shared when multiple devices are connected. The model is also distinguished from plastic-housing surge strips by its metal enclosure, making the housing construction an important consideration when selecting this particular model.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | TLM446USBB |
| Product Type | Surge Protector |
| Product Series | Protect It! |
| AC Outlets | 4 x NEMA 5-15R |
| USB Charging Ports | 4 x USB-A |
| USB Charging Capacity | 4.2A total shared |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Recommended Electrical Service | 120V (110–125V) |
| Maximum Current | 15A |
| Frequency | 50/60 Hz |
| Maximum Power | 1800W |
| Surge Suppression Rating | 450 joules |
| Surge Response Time | < 1 ns |
| Maximum Surge Current | 35,500A |
| UL 1449 Let-Through Rating | 800V |
| EMI/RFI Filtering | Yes |
| Overload Protection | 15A resettable circuit breaker |
| Power Cord | 6 ft. (1.83 m), SJT |
| Power Cord Gauge | 14 AWG |
| Housing Material | Metal |
| Housing Color | Black |
| Outlet Orientation | Single row of 4 outlets |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 20% to 85% RH |
| Storage Temperature | 5°F to 104°F (-15°C to 40°C) |
| Storage Humidity | 0% to 90% RH |
| Dimensions | 1.75 x 11.38 x 1.87 in |
| Weight | 1.29 lb |
| Warranty | Limited lifetime |
| Compliance | RoHS, FCC Part 68 |
| Certifications | cUL Listed, UL 1449, UL Listed, NOM, CSA C22.2 No. 8 |
| UPC | 037332223463 |
FAQs
How many AC outlets does the TLM446USBB have?
The TLM446USBB provides four NEMA 5-15R AC outlets for compatible 120V equipment.
How many USB charging ports are included?
There are four USB-A charging ports. Eaton specifies a combined charging capacity of 4.2A across the four ports.
Is the 4.2A USB rating available from each port?
No. The 4.2A rating is the total shared charging capacity for the four USB-A ports.
How much surge protection does the unit provide?
The TLM446USBB provides 450 joules of AC surge suppression with a specified response time of less than 1 nanosecond.
Does the TLM446USBB have overload protection?
Yes. It uses a 15A resettable circuit breaker integrated into the illuminated power switch.
What type of power cord does it use?
The surge protector has a 6-foot (1.83 m) SJT power cord with a NEMA 5-15P input plug. The cord uses 14 AWG conductors.
