Detailed Specifications

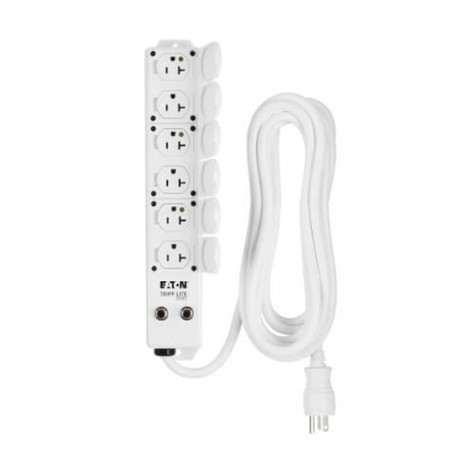

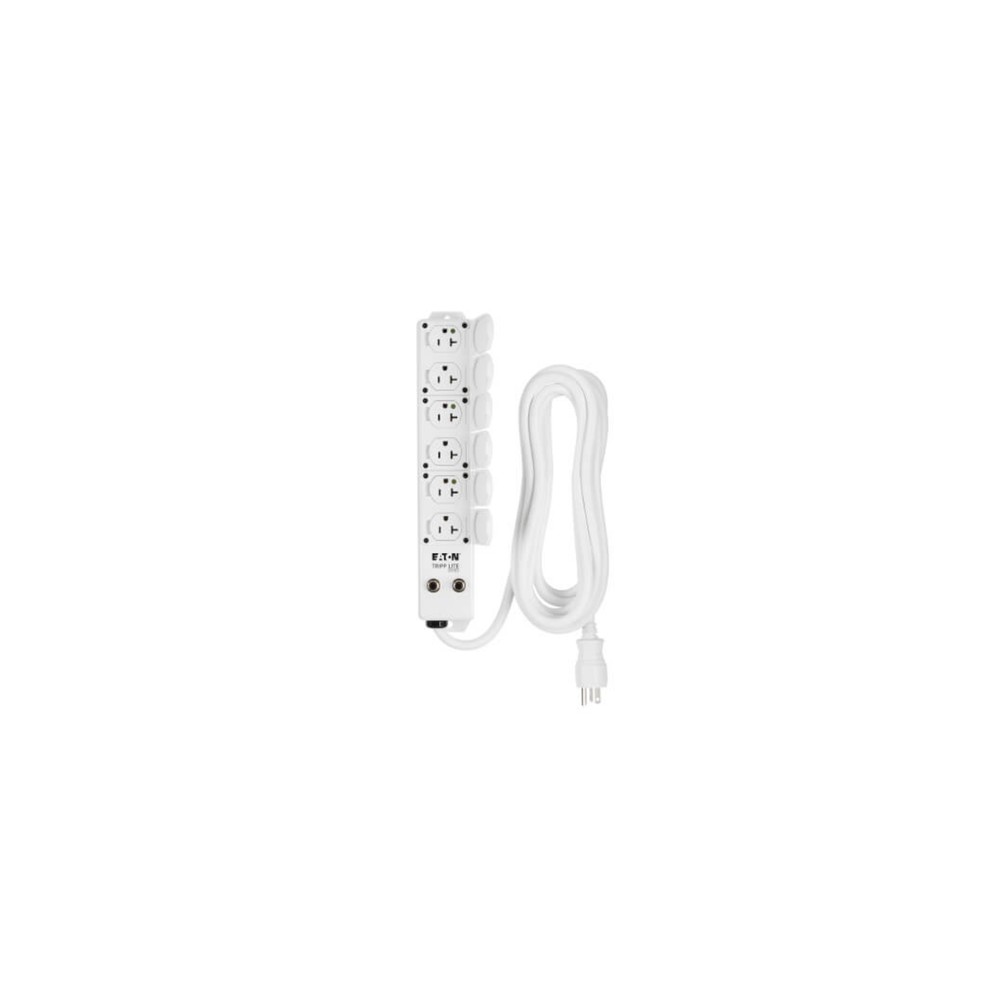

Eaton PS615HG20AOEM Medical Grade Power Strip
Overview
The Eaton PS615HG20AOEM is a UL 1363A-compliant medical-grade power strip designed for powering movable equipment in patient-care environments and healthcare facilities.
It is deployed in operating rooms, therapy rooms, imaging environments, mobile medical workstations, crash carts, and IV pole-mounted systems where hospital-grade AC distribution and physical durability are required.
The unit provides six NEMA 5-20R-HG hospital-grade outlets with a NEMA 5-20P-HG input plug on a 15-foot power cord, supporting 120V / 20A medical equipment deployments. Dual resettable circuit breakers provide overload protection while the switchless design prevents accidental shutdowns during patient-care operation.
An antimicrobial coating helps inhibit bacterial and microbial surface growth in clinical environments. The all-metal housing supports demanding continuous-use healthcare installations.
This model is intended for hospital-grade AC distribution and should not be used as a surge-protected UPS or power conditioning device.
Key Features
- UL 1363A compliant for patient-care environments
- Six hospital-grade NEMA 5-20R-HG outlets included
- Antimicrobial coating inhibits microbial surface growth
- Dual 20A resettable breakers protect connected loads
- All-metal housing supports medical deployment durability
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | PS615HG20AOEM |
| Product Type | Medical-Grade Power Strip |
| Input Voltage | 120 VAC |
| Maximum Input Current | 20 A |
| Frequency | 50/60 Hz |
| Input Plug | NEMA 5-20P-HG |
| Output Receptacles | 6 × NEMA 5-20R-HG |
| Cord Length | 15 ft (4.57 m) |
| Circuit Protection | Dual resettable 20A breakers |
| Power Switch | None (switchless design) |
| Mounting Type | Surface mountable |
| Housing Material | Metal |
| Antimicrobial Protection | Yes |
| Compliance | UL 1363A |
| Environmental Compliance | RoHS |
| Application | Patient-care vicinity |
| Warranty | Limited lifetime |
