Detailed Specifications

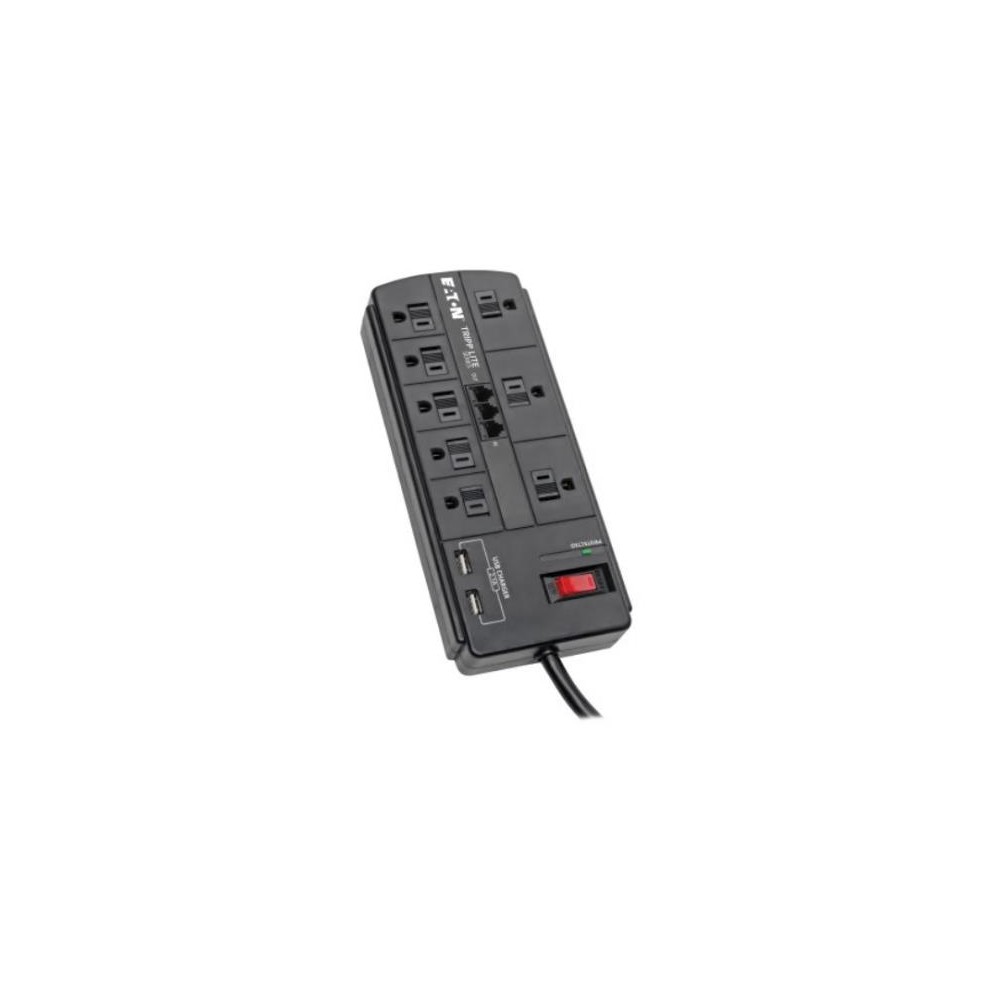

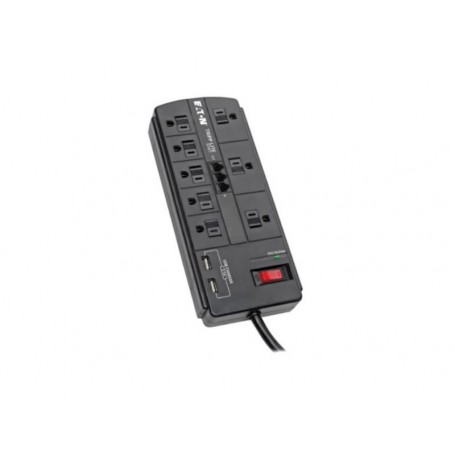

Eaton TLP88TUSBB 8-Outlet Surge Protector with USB and Tel Modem Protection Tripp Lite
Overview :
The Eaton TLP88TUSBB is a Tripp Lite Protect It! surge protector designed for computers, office electronics, networking equipment, home theater systems, and other sensitive devices. It provides 8 NEMA 5-15R outlets, 1200 joules of surge suppression, and an 8 ft power cord with a right-angle NEMA 5-15P plug.
The unit also provides two USB-A charging ports sharing 2.1A, plus RJ11 telephone/DSL protection with one line input and two line outputs. EMI/RFI filtering, a resettable 15A circuit breaker, diagnostic protection LED, outlet safety covers, and mounting slots provide additional protection and installation flexibility.
Key Features :
- 8 × NEMA 5-15R AC outlets
- 1200 joules surge suppression
- 15A maximum current
- 2 × USB-A charging ports
- USB charging up to 2.1A shared / 10.5W total
- RJ11 telephone/DSL surge protection
- 1 line in / 2 line out
- 8 ft / 2.43m power cord
- Right-angle NEMA 5-15P plug
- EMI/RFI noise filtering
- <1 ns surge response time
- 15A resettable circuit breaker
- Green diagnostic LED
- Built-in outlet safety covers
- Keyhole mounting slots
- Black plastic housing
- $75,000 Ultimate Lifetime Insurance in the U.S., Canada and Puerto Rico
- Lifetime limited warranty worldwide
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | TLP88TUSBB |
| Product Type | Surge Protector / Power Strip |
| Input Voltage | 120V AC |
| Frequency | 50/60Hz |
| Maximum Current | 15A |
| AC Outlets | 8 × NEMA 5-15R |
| Input Plug | NEMA 5-15P, right-angle |
| Surge Energy Rating | 1200 Joules |
| Surge Response Time | <1 ns |
| USB Ports | 2 × USB-A |
| USB Output | 2.1A shared / 10.5W total |
| Telephone Protection | RJ11, 1 line in / 2 line out |
| EMI/RFI Filtering | Yes |
| Circuit Breaker | 15A resettable |
| Protection Modes | H-N, N-G, H-G |
| Let-Through Rating | 500V |
| Cord Length | 8 ft / 2.43m |
| Cord Gauge | 14 AWG SJT |
| Housing | Plastic |
| Housing Color | Black |
