Detailed Specifications

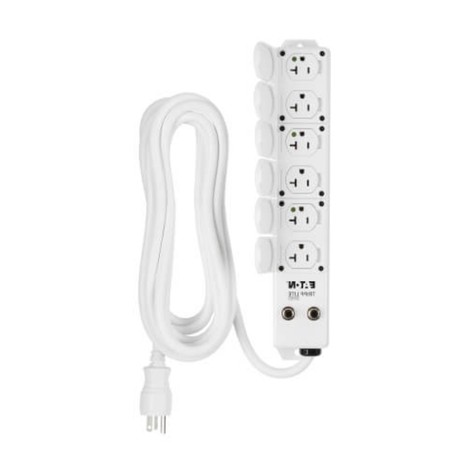

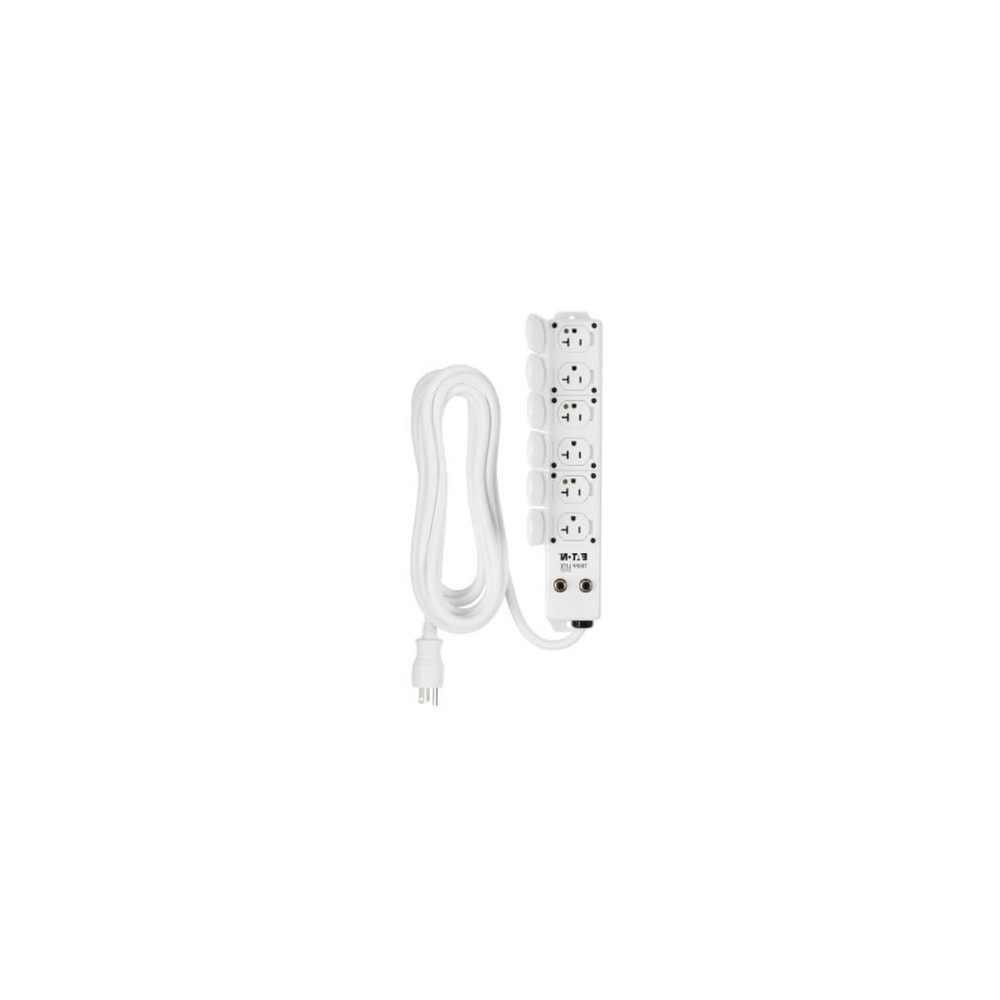

Eaton PS607HG20AOEM Medical-Grade Power Strip UL 1363A
Overview
The Eaton PS607HG20AOEM is a UL 1363A-compliant medical-grade power strip designed for powering movable medical equipment assemblies in patient-care environments and healthcare facilities.
It is deployed in operating rooms, therapy rooms, imaging environments, nursing stations, crash carts, and mobile medical workstations where compliant hospital-grade AC distribution is required.
The unit provides six NEMA 5-20R-HG hospital-grade outlets with integrated locking safety covers and a NEMA 5-20P-HG input plug on a 7-foot cord for flexible deployment near patient-care equipment.
Dual resettable 20A circuit breakers provide overload protection while the switchless design prevents accidental shutdown during active medical operation. The antimicrobial-coated metal housing supports infection-control requirements in healthcare environments.
This model is intended for compliant medical AC distribution and should not be used as a UPS, surge suppressor, or voltage-conditioning device.
Key Features
- UL 1363A compliant for patient-care installations
- Six hospital-grade 20A outlets with safety covers
- Antimicrobial coating supports infection control areas
- Dual resettable breakers protect connected equipment
- All-metal housing supports demanding healthcare use
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | PS607HG20AOEM |
| Product Type | Medical-Grade Power Strip |
| Input Voltage | 120 VAC |
| Maximum Input Current | 20 A |
| Frequency | 50/60 Hz |
| Input Plug | NEMA 5-20P-HG |
| Output Receptacles | 6 × NEMA 5-20R-HG |
| Cord Length | 7 ft (2.13 m) |
| Circuit Protection | Dual resettable 20A breakers |
| Power Switch | None (switchless design) |
| Outlet Protection | Integrated locking safety covers |
| Housing Material | Metal |
| Mounting Type | Rack, wall, pedestal, IV pole |
| Antimicrobial Protection | Yes |
| Compliance | UL 1363A, NFPA 99, RoHS |
| Certifications | UL Listed, TÜV |
| Form Factor | Surface/rack mountable |
| Operating Temperature | 0°C to 40°C |
