Detailed Specifications

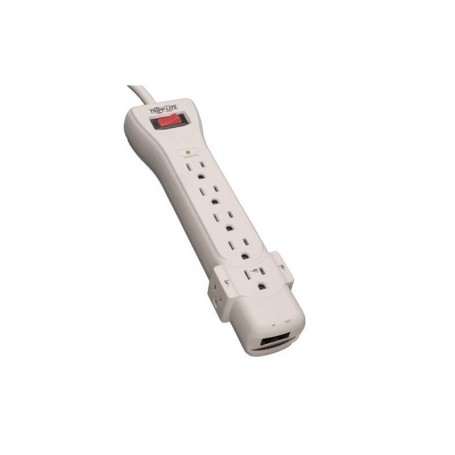

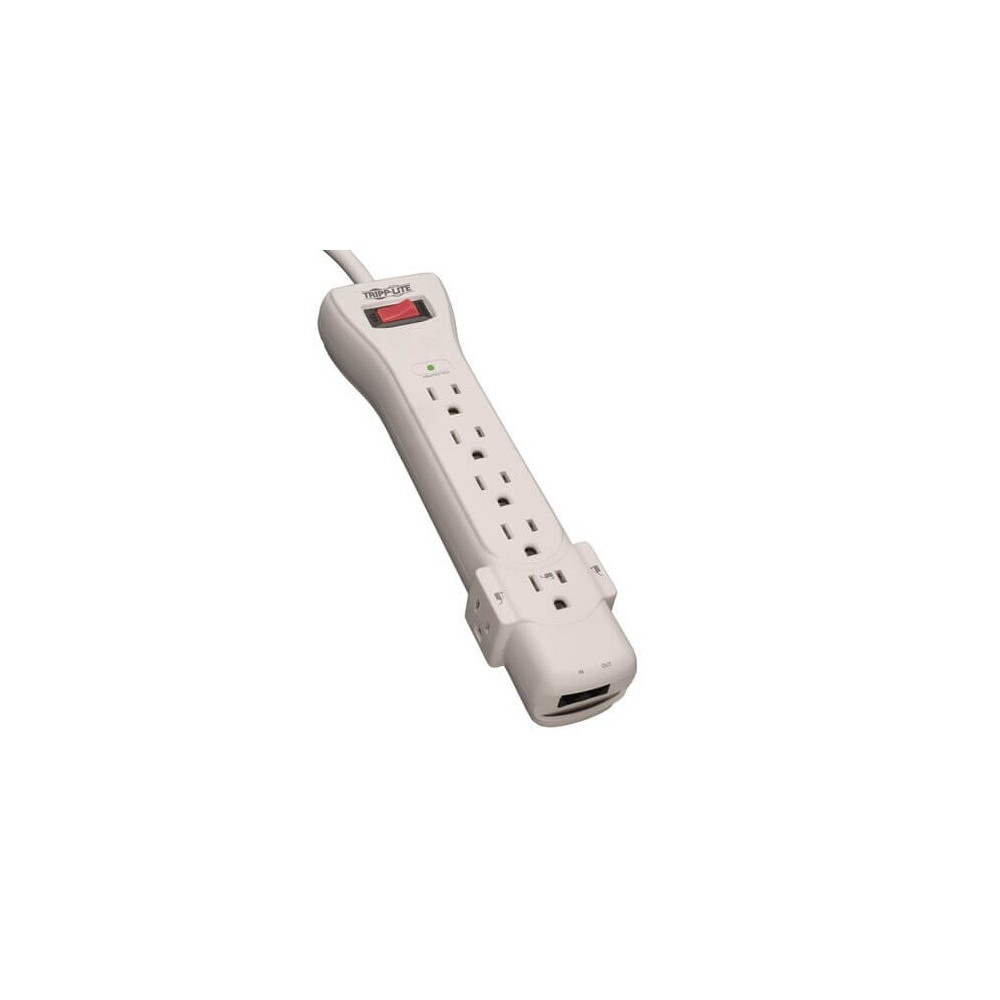

Eaton SUPER6TEL 7-Outlet Surge Protector Compatible Tripp Lite
Overview :
The Eaton SUPER6TEL is a Protect It! surge protector designed for workstations, desktop PCs, telecom equipment, fax machines, modems, and other sensitive electronics. It provides 1080 joules of AC surge suppression across seven NEMA 5-15R outlets and includes RJ11 telephone-line protection.
The unit operates at 120V AC, 15A, 50/60Hz and uses a 6 ft. (1.83 m) 14 AWG SJT power cord with a right-angle NEMA 5-15P plug. A built-in 15A circuit breaker, diagnostic LED, and EMI/RFI filtering provide additional protection and power management.
Key Features :
- 7 × NEMA 5-15R AC outlets
- 1080J surge suppression rating
- 120V AC / 15A electrical capacity
- 6 ft. (1.83 m) power cord
- Right-angle NEMA 5-15P input plug
- RJ11 protection for one telephone/DSL line
- 15A resettable circuit breaker
- EMI/RFI filtering up to 20dB
- <1 ns surge response time
- Diagnostic protection-status LED
- Keyhole mounting slots
- Plastic housing with white finish
- $50,000 connected-equipment insurance in the U.S., Canada and Puerto Rico
- Limited lifetime warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Model | SUPER6TEL |
| Product Type | Surge Protector |
| AC Outlets | 7 × NEMA 5-15R |
| Input Plug | NEMA 5-15P, right-angle |
| Input Voltage | 120V AC |
| Maximum Current | 15A |
| Frequency | 50/60Hz |
| Surge Rating | 1080 Joules |
| Maximum Surge Current | 72kA |
| Response Time | <1 ns |
| EMI/RFI Filtering | Up to 20dB |
| Telephone Protection | 1 line, RJ11 |
| Circuit Breaker | 15A |
| Power Cord | 6 ft. (1.83 m), 14 AWG SJT |
| Mounting | Keyhole slots |
| Housing | Plastic |
