Detailed Specifications

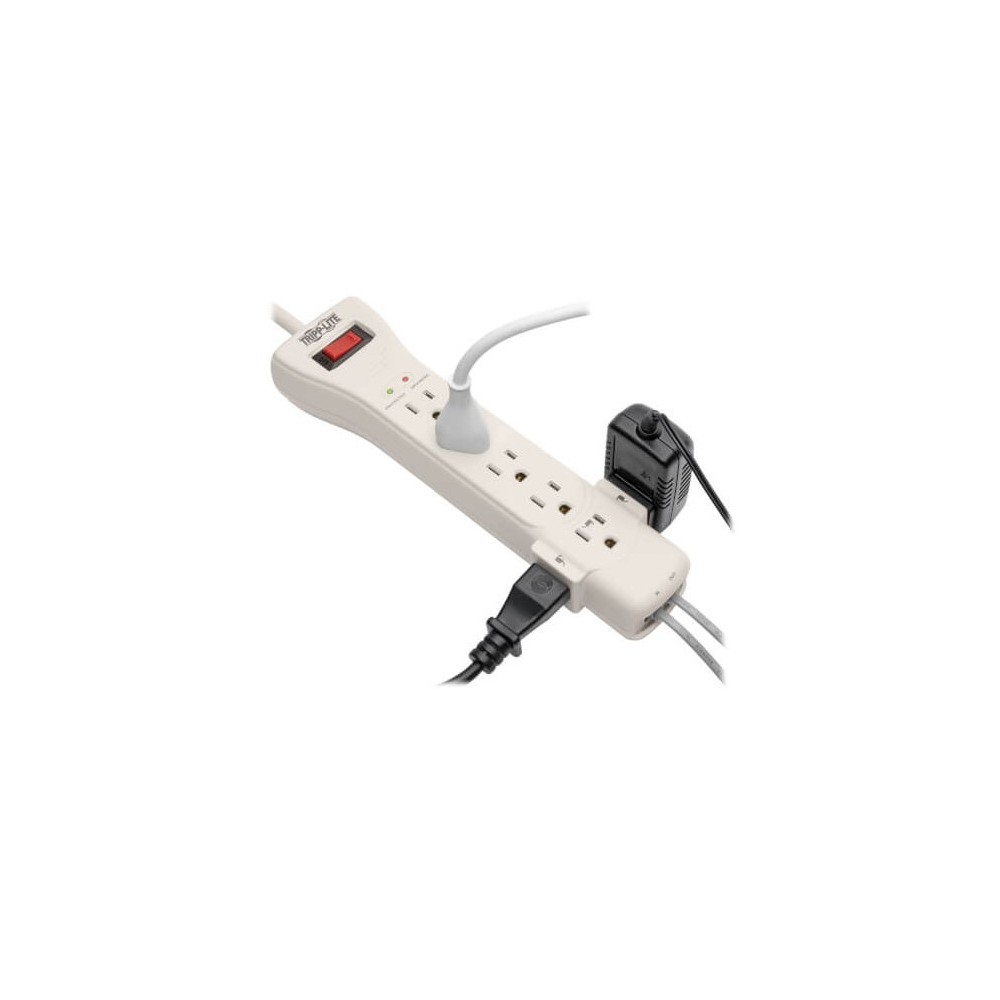

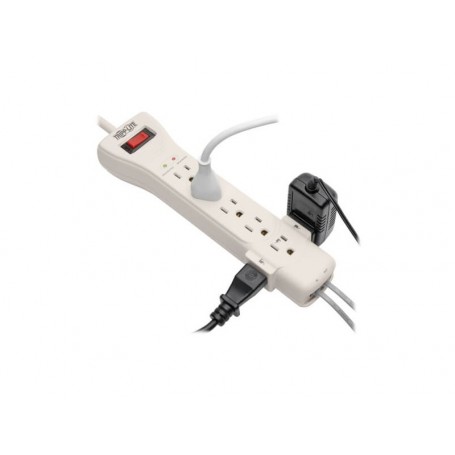

Eaton SUPER7TEL15 7-Outlet Surge Protector Compatible Tripp Lite
Overview :
The Eaton SUPER7TEL15 is a Tripp Lite Protect It! 7-outlet surge protector designed to protect computers, workstations, telecom equipment, home electronics and other sensitive devices from power surges and line noise. It provides seven NEMA 5-15R outlets, a 15-foot power cord, 2520-joule surge suppression, and built-in telephone/DSL line protection through RJ11 connectors.
The unit includes a 15A resettable circuit breaker, diagnostic LEDs for protection and grounding status, EMI/RFI filtering, and a space-saving right-angle NEMA 5-15P input plug. Keyhole mounting slots allow flexible installation.
Key Features :
- 7 NEMA 5-15R AC outlets
- 15 ft. power cord
- 120V AC input
- 15A electrical capacity
- 2520-joule AC surge suppression
- Built-in 15A resettable circuit breaker
- Telephone/DSL surge protection with RJ11 connectors
- EMI/RFI noise filtering up to 20 dB
- Diagnostic LEDs for protection and grounding status
- Space-saving right-angle NEMA 5-15P plug
- Supports transformer-style plugs
- Keyhole mounting slots
- Automatic shutoff protection
- Plastic housing
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SUPER7TEL15 |
| Product Type | Surge Protector |
| Product Series | Protect It! |
| Total Outlets | 7 |
| Output Receptacles | 7 × NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Maximum Current | 15A |
| Power Capacity | 1800 W |
| Frequency | 50/60 Hz |
| Power Cord Length | 15 ft. (4.57 m) |
| Cord Gauge | 14 AWG |
| Cord Type | SJT |
| Surge Suppression | 2520 Joules |
| Response Time | < 1 ns |
| Maximum Surge Current | 156,000 A |
| Circuit Breaker | 15A resettable |
| Telephone/DSL Protection | 1 line |
| EMI/RFI Filtering | Up to 20 dB |
| Power Switch | 2-position On/Off |
