Detailed Specifications
Eaton SK3-0 3-Outlet Direct Plug-In Surge Protector Tripp Lite
Overview :

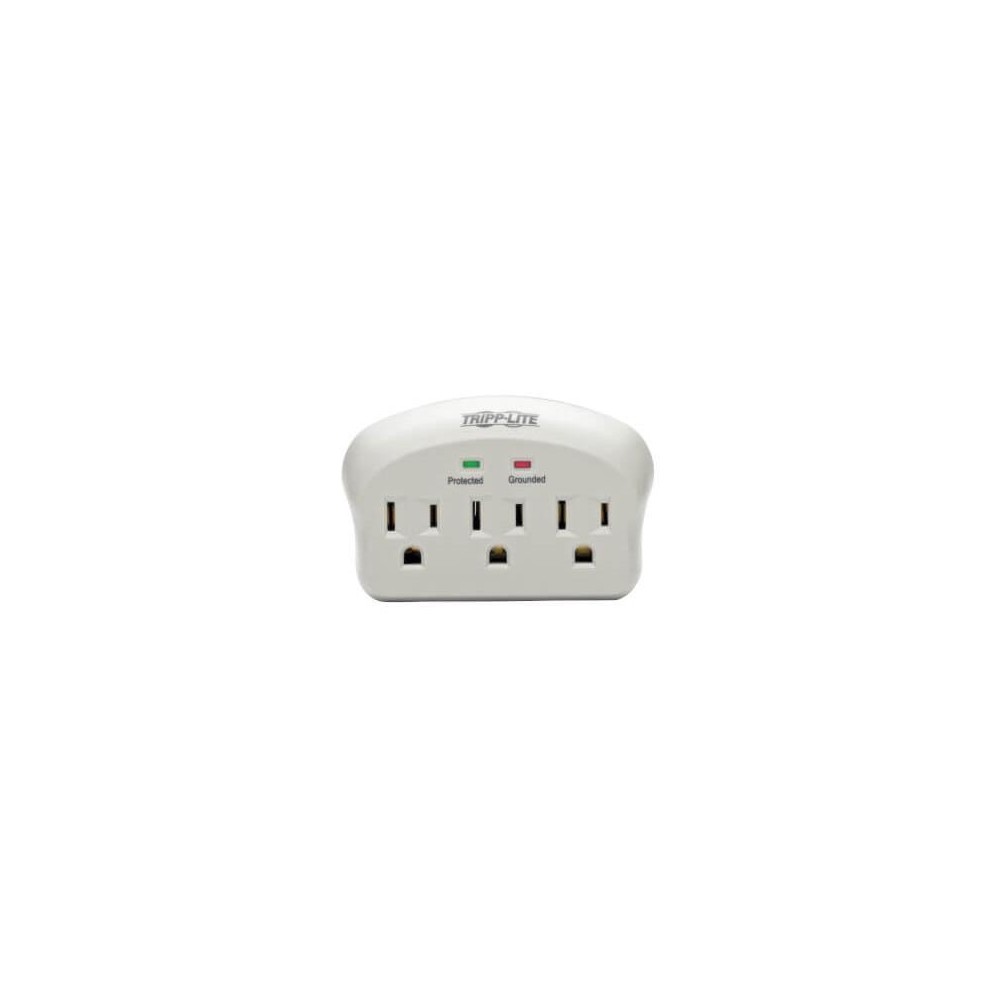

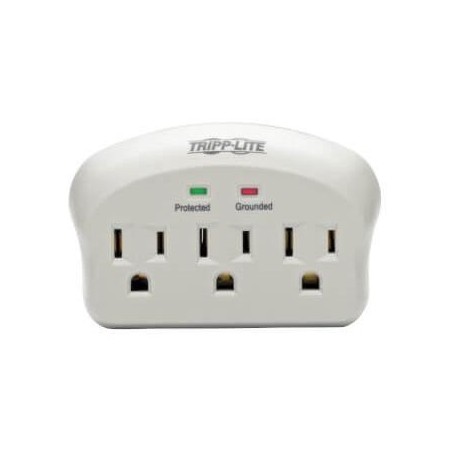

The Eaton SK3-0 is a Tripp Lite Protect It! direct plug-in surge protector designed to safeguard computers, printers, networking devices, and other sensitive electronics from power surges, spikes, and line noise. It provides 3 NEMA 5-15R outlets with 660 joules of surge suppression for 120V AC applications.
Its compact wall-tap design plugs directly into a standard receptacle without a power cord. Diagnostic LEDs indicate protection and grounding status, while automatic shutoff disconnects the outlets if the surge-protection circuitry becomes incapacitated.
Key Features :
- 3 × NEMA 5-15R AC outlets
- Direct plug-in wall-tap design
- 120V AC input/output
- 15A circuit breaker
- 660J surge suppression
- Up to 39,000A maximum surge current
- <1 ns response time
- EMI/RFI noise filtering
- Full normal-mode and common-mode protection
- Diagnostic Protected and Grounded LEDs
- Automatic shutoff
- 150V RMS clamping voltage
- Plastic light-gray housing
- UL 1449 and RoHS compliant
- $5,000 connected-equipment insurance in the U.S., Canada and Puerto Rico
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SK3-0 |
| Product Type | Direct Plug-In Surge Protector |
| Input Voltage | 120V AC |
| Frequency | 60Hz |
| Maximum Current | 15A |
| Power Capacity | 1,800W / 1,875VA |
| AC Outlets | 3 × NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Surge Rating | 660 Joules |
| Maximum Surge Current | 39,000A |
| Surge Current Rating | 27,000A |
| Response Time | <1 ns |
| Clamping Voltage | 150V RMS |
| Protection Modes | H-N, N-G, H-G |
| EMI/RFI Filtering | Yes |
| Circuit Breaker | 15A |
| Diagnostic LEDs | Yes |
