Detailed Specifications

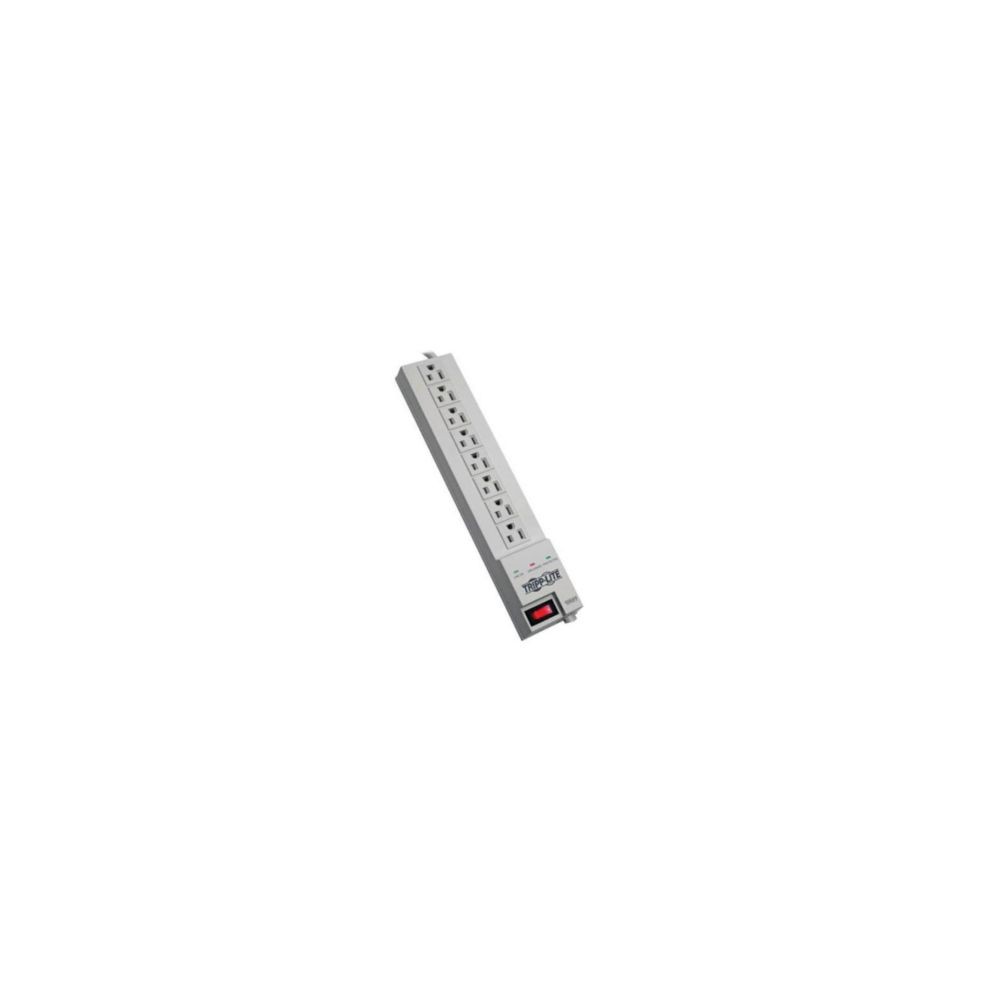

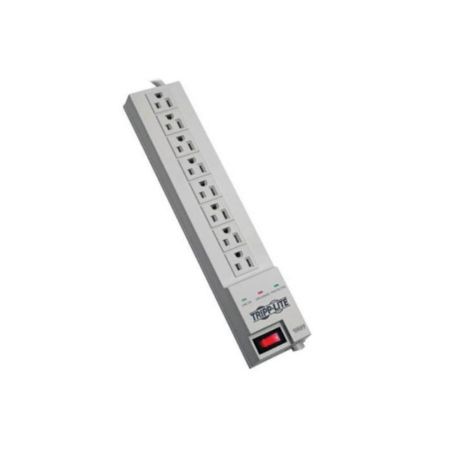

Eaton SK6-6/SPIKEBAR 8-Outlet Surge Protector
Overview
The Eaton SK6-6/SPIKEBAR, part of the Tripp Lite by Eaton Protect It! series, is an 8-outlet surge protector designed to safeguard computers, networking equipment, office electronics, home-theater components, and other sensitive electronic devices from power surges, spikes, and line noise.
It provides 120V AC input, eight NEMA 5-15R output receptacles, a 15A circuit breaker, and an 1080-joule AC suppression rating. The unit uses an 8 ft (2.44 m) power cord with a NEMA 5-15P input plug and supports bench or wall mounting.
The surge protector provides EMI/RFI line-noise filtering, protection-present and line-status diagnostics, and a right-angle input plug for space-conscious installations. Its maximum surge-current rating is 54,500 amps, with an UL-verified let-through rating of 400V.
Key Features
- 8 NEMA 5-15R outlets provide protected AC power for multiple connected devices.
- 1080-joule surge suppression helps protect connected electronics against damaging voltage transients.
- 54,500A peak surge-current rating provides high-capacity transient protection.
- 15A resettable circuit breaker provides overload protection for connected equipment.
- 8 ft (2.44 m) cord with right-angle NEMA 5-15P plug supports flexible bench, wall, and workspace installations.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite by Eaton |
| Series | Protect It! |
| Model | SK6-6/SPIKEBAR |
| Product Type | Surge Protector |
| Number of Outlets | 8 |
| Output Receptacles | NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Current Rating | 15A |
| Frequency | 50/60 Hz |
| Surge Suppression Rating | 1080 Joules |
| Peak Surge Current | 54,500A |
| Response Time | < 1 ns |
| Circuit Breaker | 15A resettable |
| Power Cord Length | 8 ft (2.44 m) |
| Cord Gauge | 14 AWG |
| Mounting | Bench / Wall |
| Housing Material | Plastic |
| Diagnostic Indicators | Protection Present, Grounded, Line OK |
| EMI/RFI Filtering | Yes |
| UL 1449 Let-Through Rating | 400V |
| Product Dimensions | 1.75 × 13 × 2.75 in |
| Product Weight | 1.5 lb |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Humidity | 10% to 90% RH |
| Certifications / Compliance | UL, cUL, CSA, NOM, UL 1449, RoHS |
