Overview

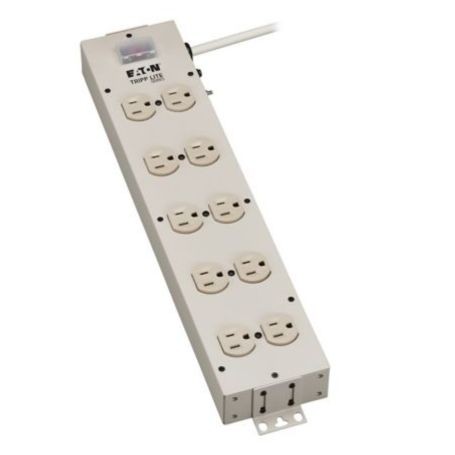

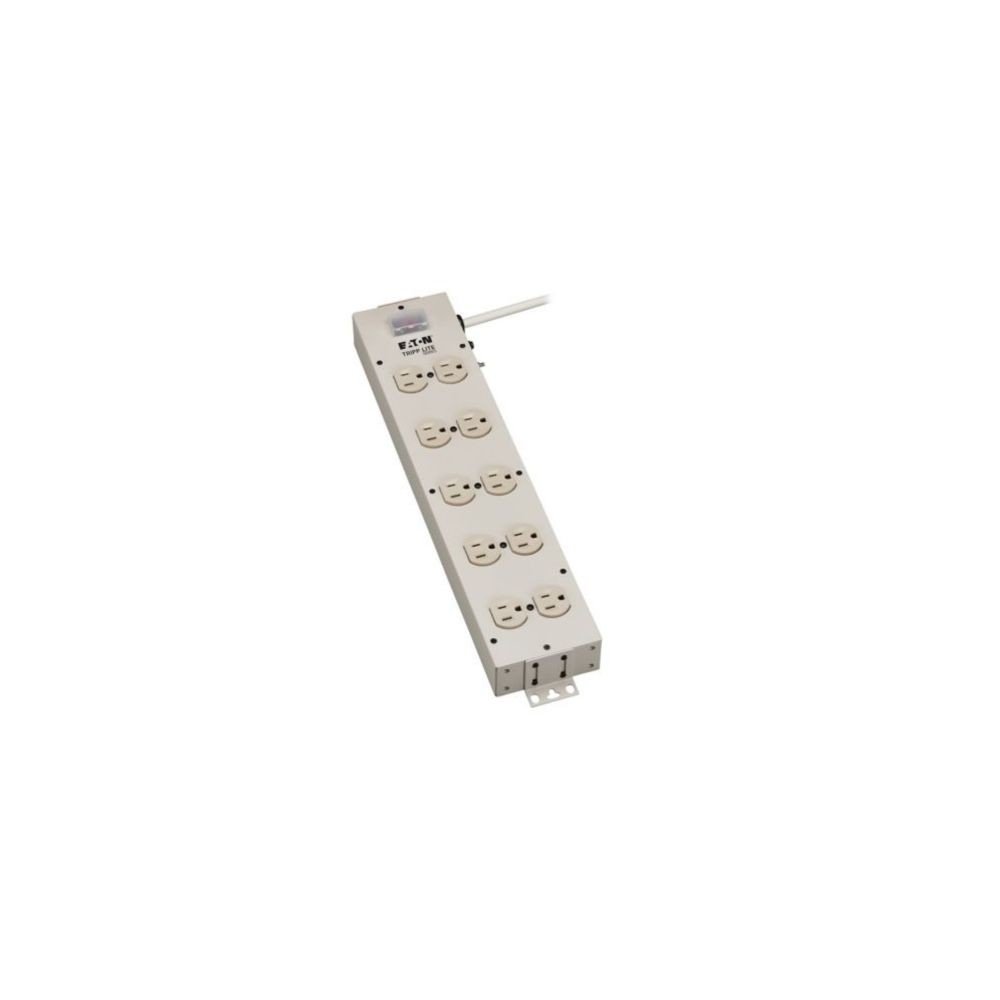

The Eaton Tripp Lite TLM1015NC Power It! is a 10-outlet AC power strip designed for distributing 120V power to connected equipment. It features ten NEMA 5-15R receptacles, a 15-foot (4.57 m) grounded power cord, an illuminated on/off switch, and an integrated 15A circuit breaker.
Power Distribution
The ten NEMA 5-15R outlets are arranged in two rows and spaced to accommodate transformer-style plugs. The unit accepts 120V AC input through a NEMA 5-15P plug and supports 50/60 Hz operation. The integrated 15A circuit breaker provides overload protection for the power strip.
Mounting and Construction
The TLM1015NC uses a heavy-duty metal case and includes removable mounting brackets with keyhole slots. These mounting provisions allow the power strip to be secured to a suitable surface instead of being used only as a freestanding desktop unit.
Key Features
- Ten NEMA 5-15R AC outlets spaced to accommodate transformers
- 15-foot (4.57 m) power cord with NEMA 5-15P input plug
- 15A integrated circuit breaker for overload protection
- Illuminated two-position power switch with protective cover
- Heavy-duty metal housing with removable mounting brackets
Applications
The TLM1015NC is intended for AC power distribution in home-office, classroom, commercial, light industrial, retail, and equipment-area applications where multiple 120V devices need to share a single AC source.
DC Supplies Product Note
The TLM1015NC is a power distribution strip rather than a surge protector. Eaton specifies ten NEMA 5-15R receptacles and a 15A circuit breaker, while product documentation does not specify surge suppression or network, telephone, or cable protection for this model.
Specifications
| Brand | Eaton |
|---|
| Part Number / MPN | TLM1015NC |
|---|
| Product Type | Power Strip |
|---|
| Series | Power It! |
|---|
| Input Voltage | 120 VAC |
|---|
| Input Frequency | 50/60 Hz |
|---|
| Input Plug | NEMA 5-15P |
|---|
| Input Cord Gauge | 14 AWG |
|---|
| Power Capacity | 15A |
|---|
| Total Outlets | 10 |
|---|
| Output Receptacles | NEMA 5-15R |
|---|
| Overload Protection | 15A circuit breaker |
|---|
| Outlet Arrangement | Two rows, spaced for transformer accommodation |
|---|
| Power Switch | Illuminated two-position switch with cover |
|---|
| Power Cord Length | 15 ft (4.57 m) |
|---|
| Housing Material | Metal |
|---|
| Mounting | Removable brackets with keyhole slots |
|---|
| Compliance | RoHS |
|---|
| Certifications | UL Listed; cUL Listed |
|---|
| Dimensions | 17.5 x 4 x 2.25 in |
|---|
| UPC | 037332136107 |
|---|
| Warranty | Limited lifetime |
|---|
Frequently Asked Questions
How many outlets does the TLM1015NC have?
The TLM1015NC has ten NEMA 5-15R outlets arranged in two rows.
What input voltage does this power strip use?
The power strip is designed for 120V AC input and uses a NEMA 5-15P plug.
How long is the power cord?
The attached AC power cord is 15 feet (4.57 m) long.
Does the TLM1015NC have overload protection?
Yes. Eaton specifies an integrated 15A circuit breaker for overload protection.
Can the TLM1015NC be mounted?
Yes. The unit has removable mounting brackets with keyhole slots for suitable surface-mounting applications.
Does the TLM1015NC provide surge protection?
No. This model is documented as a power strip with circuit-breaker protection; it is not specified as a surge protector.
