Eaton TLM704SA 7-Outlet Industrial Safety Surge Protector Tripp Lite

Overview :

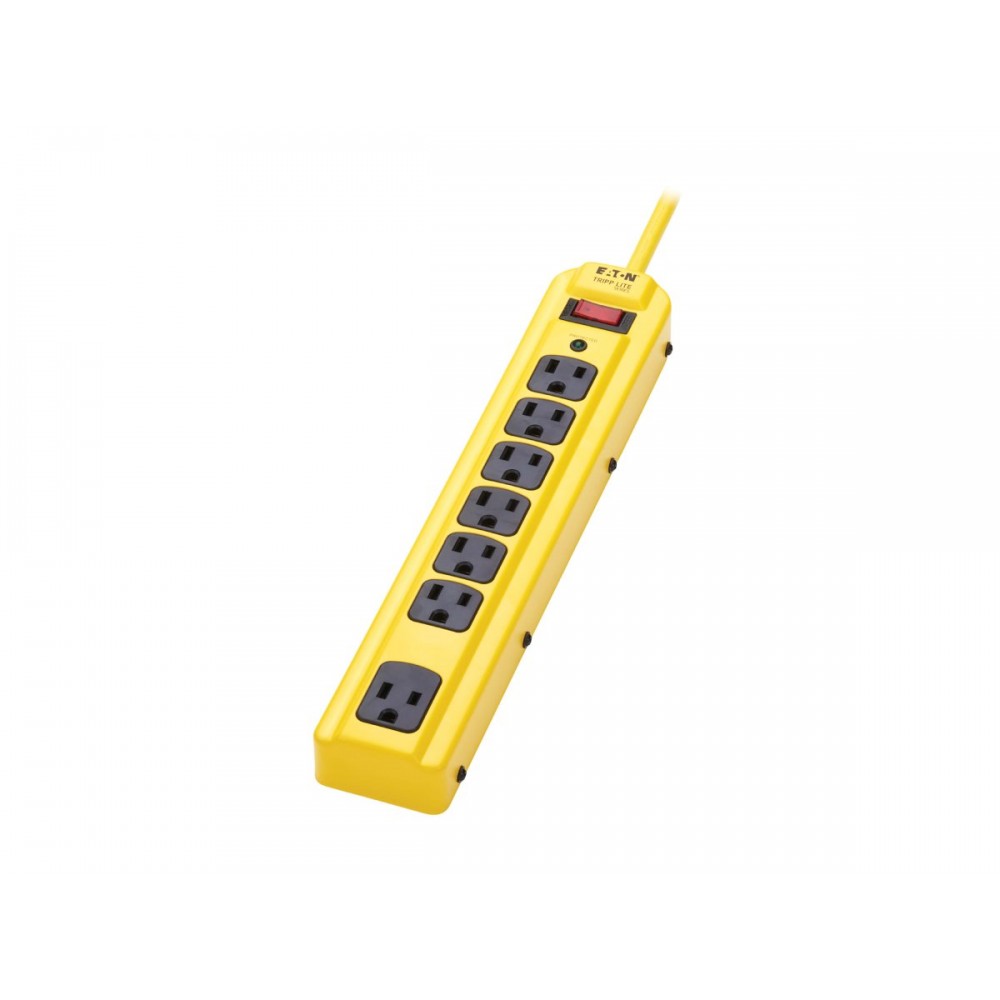

The Eaton TLM704SA is a Tripp Lite Series Protect It! 7-outlet industrial safety surge protector designed to protect electrical and electronic equipment against surges, spikes and line noise. It is intended for demanding environments such as factories, warehouses, garages, automotive facilities and other industrial or commercial locations.

The unit provides seven NEMA 5-15R outlets, including one outlet spaced apart to accommodate bulky transformers without blocking adjacent receptacles. It accepts 120V AC input through a 4-foot, 14 AWG SJT power cord with a NEMA 5-15P plug. The unit provides 1800W output capacity and a 15A circuit breaker.

The TLM704SA provides protection in both normal mode H-N and common mode N-G / H-G, with up to 20 dB EMI/RFI filtering and an automatic shutoff function. A green protected LED indicates that surge suppression is present.

Key Features :

• 7 NEMA 5-15R AC outlets
• 120V AC input
• 1800W output capacity
• 15A circuit breaker
• 4 ft. input power cord
• NEMA 5-15P input plug
• 14 AWG SJT power cord
• 450-joule surge suppression rating
• Up to 20 dB EMI/RFI filtering
• <1 ns AC suppression response time
• 60,000A maximum surge current
• Automatic shutoff
• Green protected-status LED
• Metal housing for industrial environments
• Keyhole mounting slots for wall or desk installation
• One spaced outlet for transformer accommodation
• Four safety covers included
