Detailed Specifications

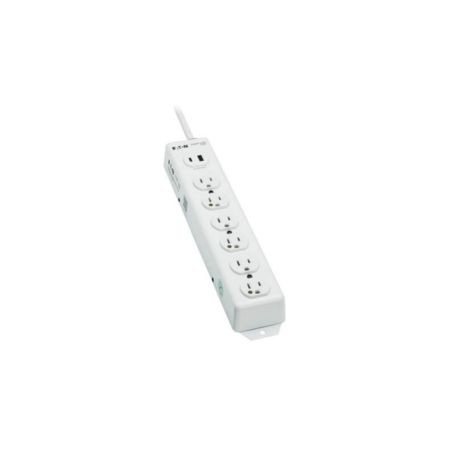

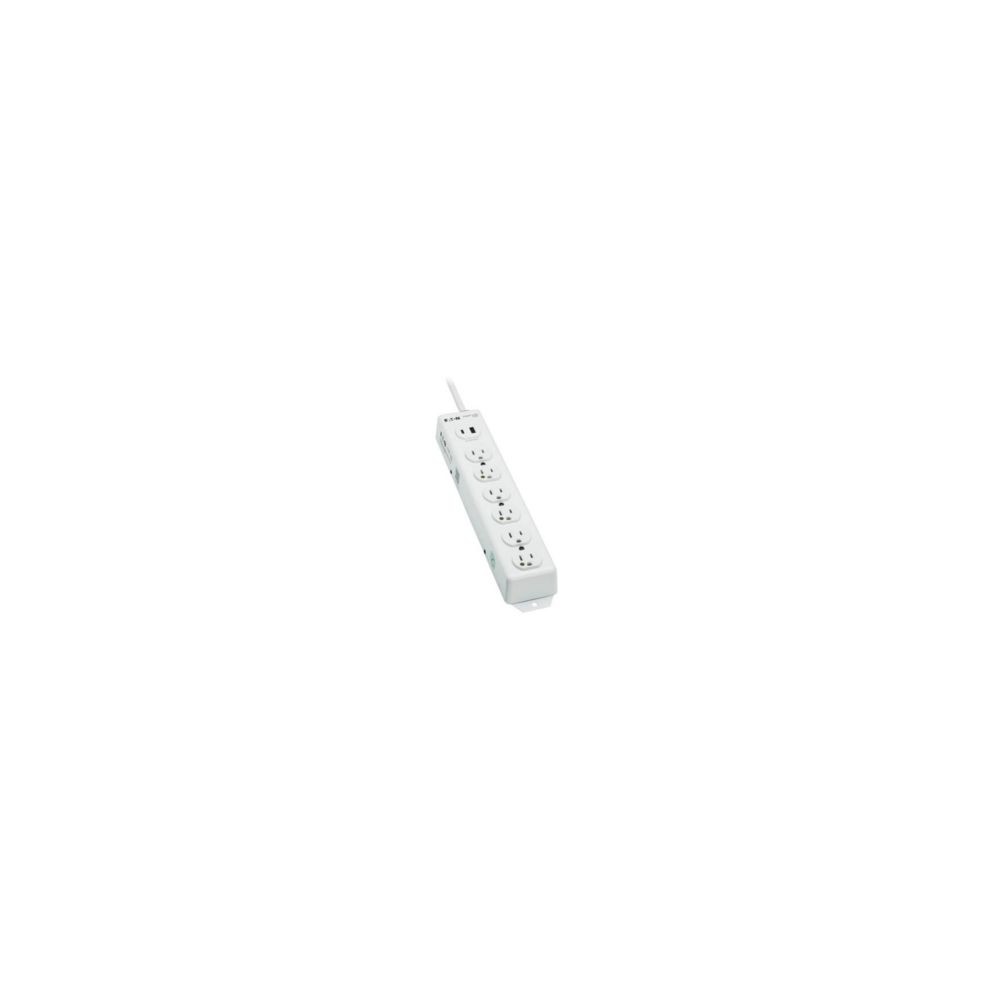

Eaton PS-615-HGUSB Tripp Lite Safe-IT Medical-Grade Power Strip
Overview
The Eaton PS-615-HGUSB, from the Tripp Lite Safe-IT series, is a UL 1363 medical-grade power strip designed for healthcare environments outside patient care vicinities. It provides six NEMA 5-15R-HG hospital-grade outlets, optional safety covers, a 15 ft power cord, and antimicrobial protection.
The unit also provides USB-C Power Delivery and USB-A charging, with up to 30 W total charging capacity. A built-in 15A resettable circuit breaker provides overload protection, while mounting flanges support installation on a flat surface. Eaton specifies a metal housing and switchless design for healthcare applications.
Key Features
- Six NEMA 5-15R-HG hospital-grade outlets provide AC power for compatible healthcare equipment.
- Dual USB charging includes USB-C Power Delivery and USB-A, with up to 30 W total charging output.
- 15 ft SJT power cord with a hospital-grade NEMA 5-15P-HG plug provides extended installation reach.
- Antimicrobial protection helps resist the growth of bacteria, viruses, fungi, mold and mildew.
- 15A resettable circuit breaker and six outlet safety covers provide additional protection and controlled access.
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Series | Safe-IT |
| Part Number | PS-615-HGUSB |
| Product Type | Medical-Grade Power Strip |
| Application | Healthcare / Medical |
| UL Standard | UL 1363 |
| AC Input | 120 VAC |
| Recommended Electrical Service | 15A, 120V |
| Frequency | 50/60 Hz |
| AC Outlets | 6 |
| Output Receptacles | NEMA 5-15R-HG |
| Input Plug | NEMA 5-15P-HG |
| Input Cord Length | 15 ft (4.57 m) |
| Cord Type | SJT |
| Cord Gauge | 14 AWG |
| USB Charging Ports | 2 |
| USB Port Types | USB-C PD + USB-A |
| Total USB Charging Power | 30 W |
| USB-C PD Output | Up to 30 W when used alone |
| Overload Protection | 15A resettable circuit breaker |
| Outlet Safety Covers | 6 included |
| Antimicrobial Protection | Yes |
| Power Switch | None / switchless |
| Housing Material | Metal |
| Outlet Orientation | Single row of 6 |
| Outlet Spacing | 1.52 in |
| Mounting | Integrated mounting flanges |
| Housing Color | White |
| Receptacle Color | White |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Storage Temperature | 14°-122°F (-10°-50°C) |
| Compliance | RoHS, FCC Class B |
| Certifications | UL Listed, cUL Listed |
| Warranty | Lifetime Limited Worldwide |
| UPC | 037332287724 |
