Overview

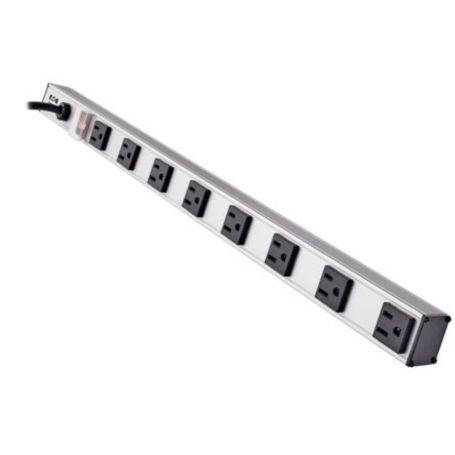

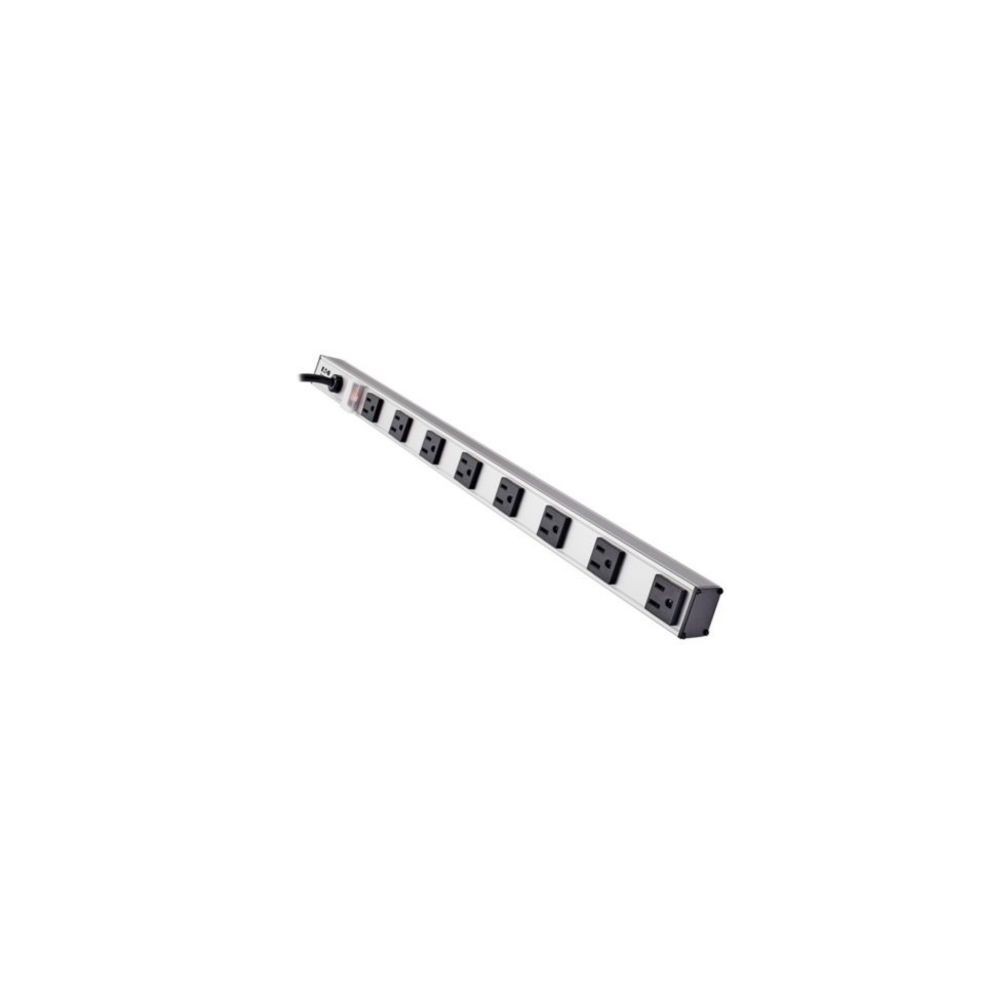

The Eaton Tripp Lite PS240810 is an 8-outlet power strip designed for distributing 120V AC power to multiple connected devices. It uses a 24-inch mountable aluminum housing, eight NEMA 5-15R receptacles, and a 10-foot NEMA 5-15P power cord. The housing supports both vertical and horizontal mounting for rack, raceway, workbench, office, industrial, and telecom applications.
Power Distribution and Mounting
The PS240810 provides eight standard NEMA 5-15R outlets with a 15A electrical rating. Its 24-inch housing can be mounted vertically or horizontally, while the 2.48-inch center-to-center outlet spacing provides clearance for connected plugs and power adapters.
Safety and Control
A built-in 15A circuit breaker provides overload protection for the power strip. The lighted two-position On/Off switch controls power to all outlets, and its transparent cover helps prevent accidental switch operation.
Key Features
- Eight NEMA 5-15R AC outlets for multi-device power distribution
- 120V, 15A electrical service with built-in circuit breaker
- 10-foot (3.05 m) SJT power cord with NEMA 5-15P input plug
- 24-inch aluminum housing supports vertical or horizontal mounting
- Lighted On/Off switch with transparent protective cover
Applications
The PS240810 is suited to installations requiring several AC convenience outlets in a compact, mountable form. Eaton identifies applications including office environments, rackmount installations, workbenches, industrial settings, and telecom equipment areas.
DC Supplies Product Note
The PS240810 is a power distribution strip rather than a surge protector or line-noise filter. Eaton's owner documentation specifically states that PS-Series models including the PS240810 do not provide surge or line-noise protection. Use it where multi-outlet AC distribution and overload protection are the required functions.
Specifications
| Brand | Eaton |
|---|
| Part Number / MPN | PS240810 |
|---|
| Product Type | Power Strip |
|---|
| Series | Tripp Lite PS Series |
|---|
| Input Voltage | 120 VAC |
|---|
| Maximum Current | 15A |
|---|
| Input Plug | NEMA 5-15P |
|---|
| Output Receptacles | 8 x NEMA 5-15R |
|---|
| Frequency | 60 Hz |
|---|
| Power Cord Length | 10 ft. (3.05 m) |
|---|
| Power Cord Type | 14 AWG SJT |
|---|
| Housing Material | Aluminum |
|---|
| Housing Color | Silver |
|---|
| Mounting | Vertical or horizontal; bench/cabinet, rack enclosure and raceway applications |
|---|
| Outlet Spacing | 2.48 in. center-to-center |
|---|
| Circuit Breaker | 15A |
|---|
| Switch | Lighted 2-position On/Off switch |
|---|
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
|---|
| Storage Temperature | 14°F to 122°F (-10°C to 50°C) |
|---|
| Compliance | RoHS |
|---|
| Certifications | cUL Listed, UL Listed |
|---|
| Dimensions | 24.2 x 1.5 x 1.25 in. (L x W x H) |
|---|
| Weight | 2.16 lb |
|---|
| UPC | 037332187512 |
|---|
Frequently Asked Questions
How many outlets does the PS240810 provide?
It provides eight NEMA 5-15R AC receptacles.
What voltage and current rating does it support?
The power strip is rated for 120 VAC and 15A.
How long is the power cord?
The PS240810 has a 10-foot (3.05 m) power cord terminated with a NEMA 5-15P input plug.
Can the power strip be mounted horizontally?
Yes. The housing supports both vertical and horizontal mounting, with mounting clips included.
Does the PS240810 provide surge protection?
No. Eaton's owner documentation states that PS-Series power strips including the PS240810 do not provide surge or line-noise protection.
What is included with the PS240810?
The manufacturer package contents include the PS240810 power strip, mounting hardware, and instruction manual.
