Overview

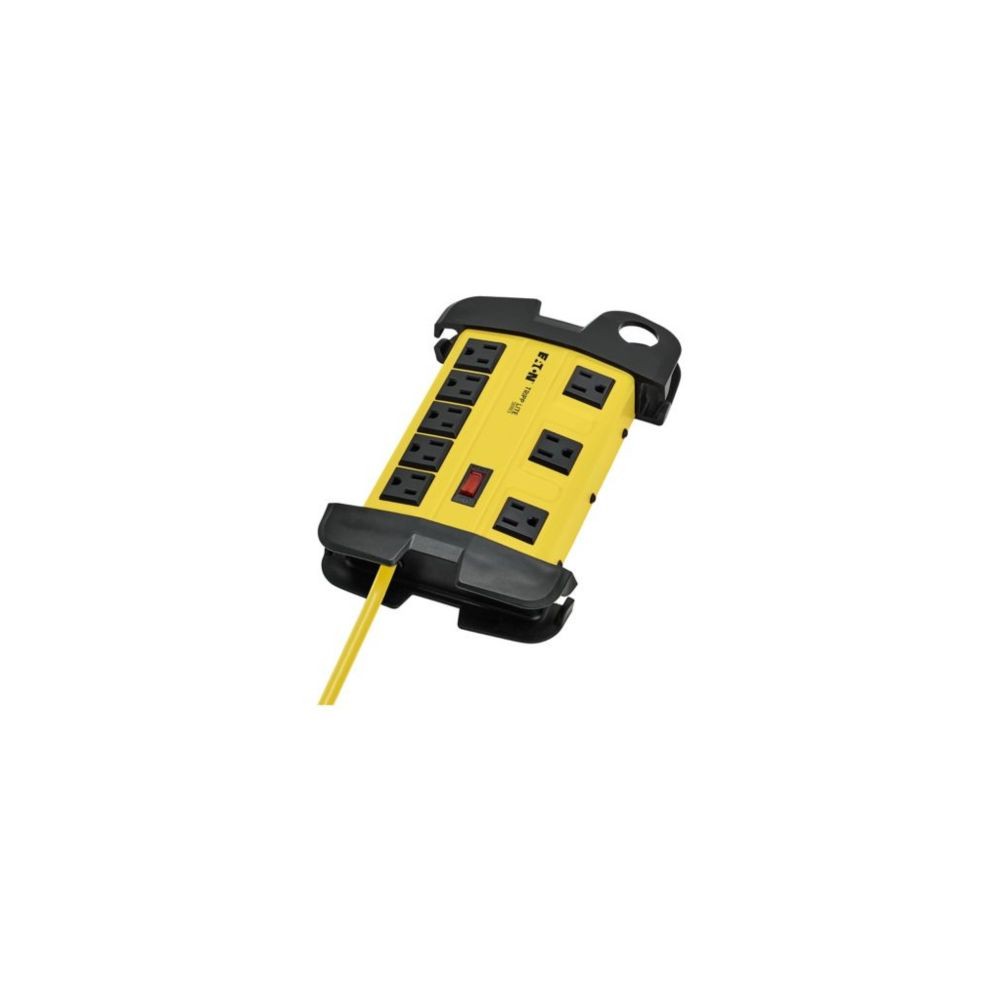

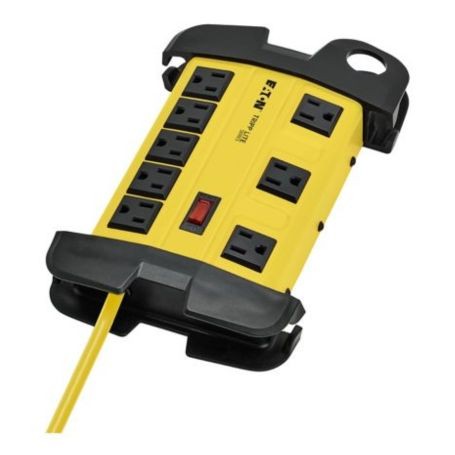

The Eaton Tripp Lite TLM815NS is a Power It! Safety Series power strip designed to distribute 120V AC power to multiple connected devices in commercial, workshop, laboratory and industrial environments. It provides eight NEMA 5-15R outlets, a 15-foot grounded power cord and a rugged metal housing.
AC Power Distribution
Eight right-angle NEMA 5-15R outlets provide a total 15A electrical capacity. The outlet layout includes transformer-spaced receptacles to help accommodate larger power adapters without unnecessarily blocking adjacent connections. The strip uses a NEMA 5-15P input plug and supports standard 120V, 60Hz operation.
Safety and Overload Protection
A red illuminated on/off switch incorporates a 15A circuit breaker for overload protection and convenient power control. Four removable safety covers can shield unused outlets from debris and accidental contact. The yellow housing provides high visibility for work areas where the power distribution equipment needs to be readily identifiable.
Mounting and Cable Management
Integrated keyhole mounting slots allow the power strip to be secured to suitable walls, workbenches or other surfaces. A built-in cord clip and cord wrap help manage the 15-foot power cable when the full length is not required.
Key Features
- Eight NEMA 5-15R AC outlets with right-angle orientation
- 15-foot grounded power cord with NEMA 5-15P plug
- 15A circuit breaker integrated with the illuminated power switch
- Four outlet safety covers for unused receptacles
- Metal housing with integrated mounting slots and cord management
Applications
The TLM815NS can be used for distributing AC power to equipment such as computers, monitors, projectors, power tools, pumps, machinery and air compressors. Its safety-oriented construction and mounting provisions suit workshops, laboratories, manufacturing areas, garages and other organized workspaces.
DC Supplies Product Note
The TLM815NS is a power distribution strip rather than a surge protector. When selecting it, verify that the connected equipment remains within the available 120V, 15A electrical capacity and that the installation location is appropriate for the product's operating environment.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | TLM815NS |
| Product Type | Safety Power Strip |
| Series | Power It! |
| Total Outlets | 8 |
| AC Output Receptacles | 8 × NEMA 5-15R |
| Input Plug | NEMA 5-15P, straight |
| Input Voltage | 120 VAC |
| Maximum Current | 15A |
| Frequency | 60 Hz |
| Cord Length | 15 ft (4.57 m) |
| Circuit Breaker | 15A |
| Outlet Safety Covers | 4 |
| Transformer Accommodation | Yes |
| Housing Material | Metal |
| Housing Color | Yellow / black |
| Mounting | Keyhole mounting slots |
| Cord Management | Integrated cord clip and cord wrap |
| Cord Jacket | SJT |
| Input Cord Gauge | 14 AWG |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Compliance | UL Listed, cUL Listed, RoHS |
| Warranty | Limited lifetime |
FAQs
Does the TLM815NS have surge protection?
No. The TLM815NS is a safety power strip for AC power distribution and overload protection; it is not specified as a surge protector.
How many AC outlets does the TLM815NS provide?
It provides eight NEMA 5-15R AC outlets, including transformer-spaced outlets.
How long is the power cord?
The TLM815NS has a 15-foot (4.57-meter) grounded power cord.
Does it include outlet safety covers?
Yes. The product includes four safety covers for unused outlets.
Can the power strip be mounted?
Yes. Integrated keyhole mounting slots support installation on suitable walls, desks or workbench surfaces.
