Tripp Lite SPIKECUBE - Plug-In Surge Protector 120V 600J
Overview

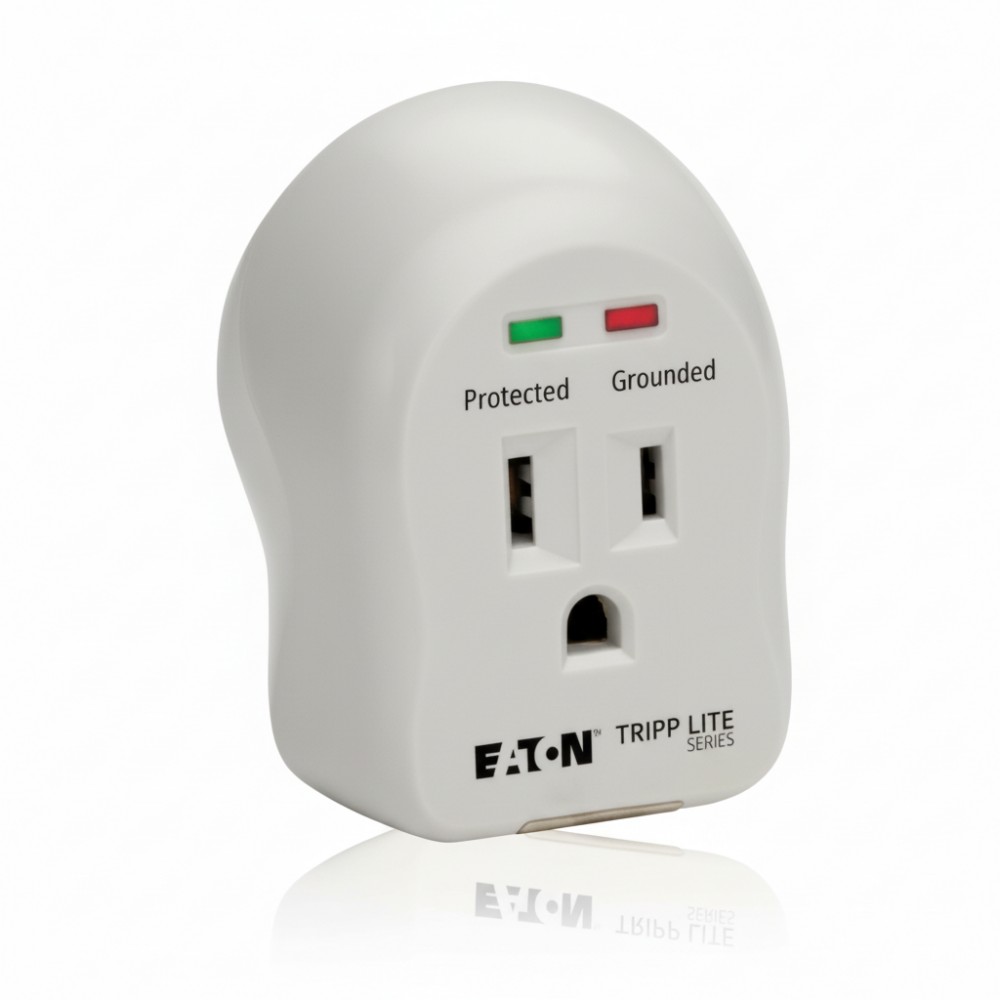

The Tripp Lite SPIKECUBE is a compact, direct plug-in surge protector designed to provide basic transient voltage protection for single-device deployments. It is typically used by IT technicians and field engineers to protect endpoint electronics such as laptops, monitors, and small AV devices from line disturbances at the outlet level.
The unit operates on a 120V AC single-phase circuit with a 15A rating and supports a maximum load of 1800W. It provides 600 joules of surge energy absorption and up to 6,500 amps of surge current handling. The device features a single NEMA 5-15R outlet and plugs directly into a standard NEMA 5-15 wall receptacle, eliminating the need for cords or external mounting hardware.
This surge suppressor is typically deployed in workstation environments, branch offices, and edge installations where individual devices require localized protection rather than centralized rack-level protection. Its small form factor allows installation in confined spaces such as behind desks, wall outlets, or temporary field setups.
The SPIKECUBE integrates into standard North American 120V power ecosystems and is often used alongside non-surge PDUs or basic power strips to provide localized protection at the device level. Diagnostic LEDs indicate protection status and grounding integrity, enabling quick visual verification during deployment or troubleshooting.
In a practical deployment, the unit is used to protect a workstation or projector connected to a wall outlet in an office or conference room. It is also commonly used in temporary installations where portability and minimal footprint are required.
This device is not suitable for rack-level power distribution, high-density IT loads, or environments requiring network-based monitoring or advanced surge suppression. It should also not be used as a replacement for upstream surge protection (e.g., panel-based or UPS systems) in electrically unstable environments.
Key Features
- 600J surge suppression for single-device protection
- Direct plug-in design with no external cord required
- Single NEMA 5-15R outlet for endpoint devices
- Diagnostic LEDs for protection and grounding status
- Compact housing for tight installation spaces
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number | SPIKECUBE |
| Product Type | Plug-In Surge Protector |
| Input Voltage | 120V AC |
| Input Current | 15A |
| Power Capacity | 1800W |
| Frequency | 50/60 Hz |
| Surge Energy Rating | 600 Joules |
| Peak Surge Current | 6500 A |
| Input Connector | NEMA 5-15P (plug-in) |
| Output Connectors | (1) NEMA 5-15R |
| Mounting | Direct wall plug-in |
| Indicators | Green (Protected), Red (Grounded) LEDs |
| Dimensions (WxDxH) | 1.9 x 1.8 x 2.5 in |
| Housing Material | Plastic |
