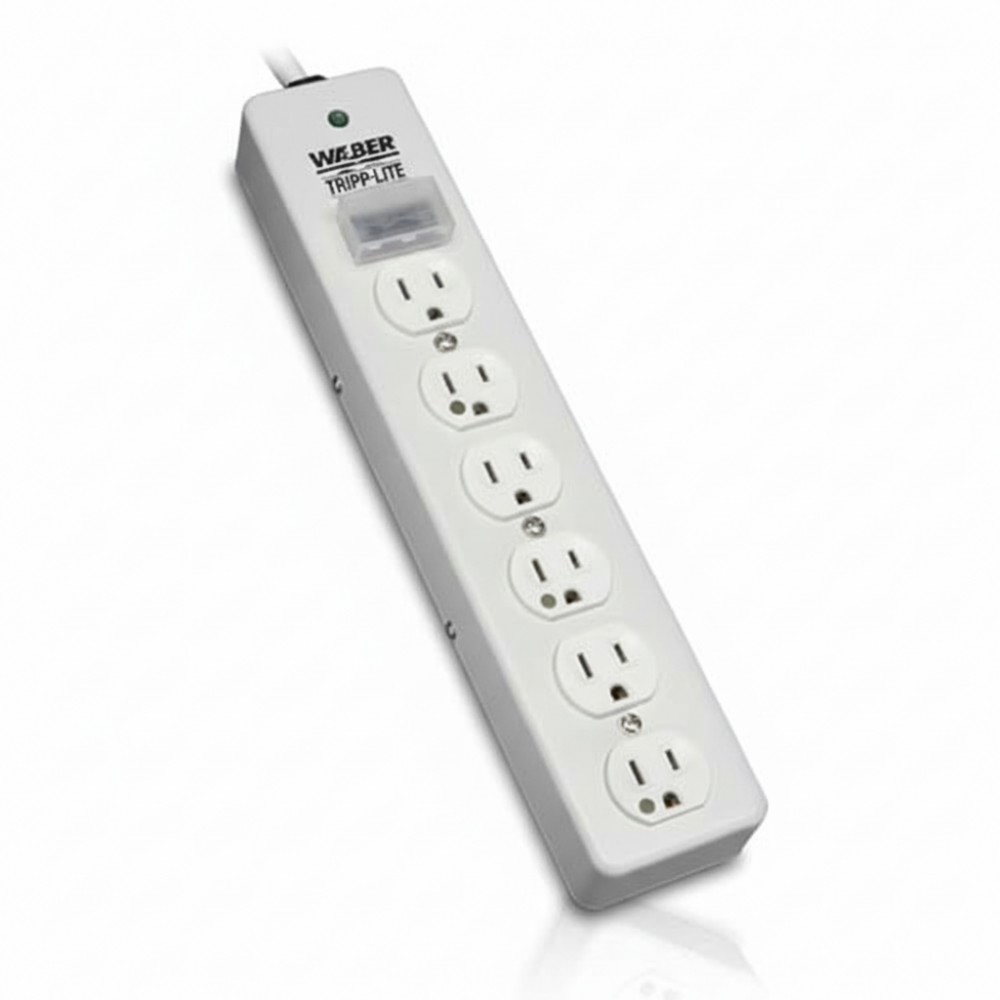

Eaton SPS606HGRA - Hospital-Grade Surge Protector 6-Outlet 1050 J
Overview
The Eaton SPS606HGRA is a hospital-grade surge protector strip designed to provide basic AC transient suppression and structured power distribution in healthcare and commercial environments where equipment reliability and electrical noise/spike protection are required. This unit is used by IT infrastructure technicians, facilities engineers, and power quality planners to protect sensitive IT equipment, workstations, and peripherals in non-patient care areas such as offices, labs, and support rooms.
Electrically, the strip is configured for 120 V single-phase North American power systems and incorporates six hospital-grade NEMA 5-15R receptacles supplied by a 6-ft (1.83 m) NEMA 5-15P-HG locking plug-type cord. The integrated 1050 joule surge suppression network provides transient energy absorption for spikes and surges; suppression response time is less than 1 ns.
This protector fits under desks, behind racks, or mounted on surfaces using keyhole slots, making it appropriate for network closets, training labs, and IT support spaces where multiple medical-rated outlets are needed without dedicated wall reconfigurations. It includes a resettable 15 A circuit breaker, a locking switch cover, and a green status LED to indicate AC line presence.
The housing is all-metal with hospital-grade receptacles and meets UL 1449 3rd Edition surge protection standard and UL 1363 power tap certification. Note that this product is not for use inside patient-care rooms or critical life support areas where stricter branch-circuit isolation and dedicated medical facility wiring requirements apply.
In a typical deployment, SPS606HGRA protects peripheral IT loads such as monitors, printers, and edge networking gear from line voltage transients caused by switching events or utility abnormalities. It is not a UPS and does not provide battery backup or hold-up time; consider a UPS for installations that require continued operation during outages.
Key Features
- 6 hospital-grade NEMA 5-15R outlets on a single strip
- 1050 joule AC surge suppression at < 1 ns response time
- 6 ft (1.83 m) cord with right-angle NEMA 5-15P-HG plug
- Metal housing with lockable switch cover and LED status
- Resettable 15 A breaker with transformer accommodation
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SPS606HGRA |
| Product Type | Hospital-Grade Surge Protector Strip |
| Input Voltage | 120 V AC |
| Phase | Single-phase |
| Suppression Rating | 1050 J |
| Response Time | < 1 ns |
| Input Plug Type | NEMA 5-15P-HG (hospital-grade) |
| Cord Length | 6 ft (1.83 m) |
| Output Receptacles | 6 × NEMA 5-15R-HG |
| Breaker Rating | 15 A resettable |
| Surge Modes | Full normal mode (H-N) |
| Status Indicator | Green AC line present LED |
| Housing Material | Metal |
| Mounting | Keyhole slots/slots |
| Dimensions (H×W×D) | ~1.5″ × 13.75″ × 2.5″ |
| Weight (Approx.) | ~3.2 lb (1.45 kg) |
| Certifications | UL 1449 3rd Edition, UL 1363, cUL, RoHS |
