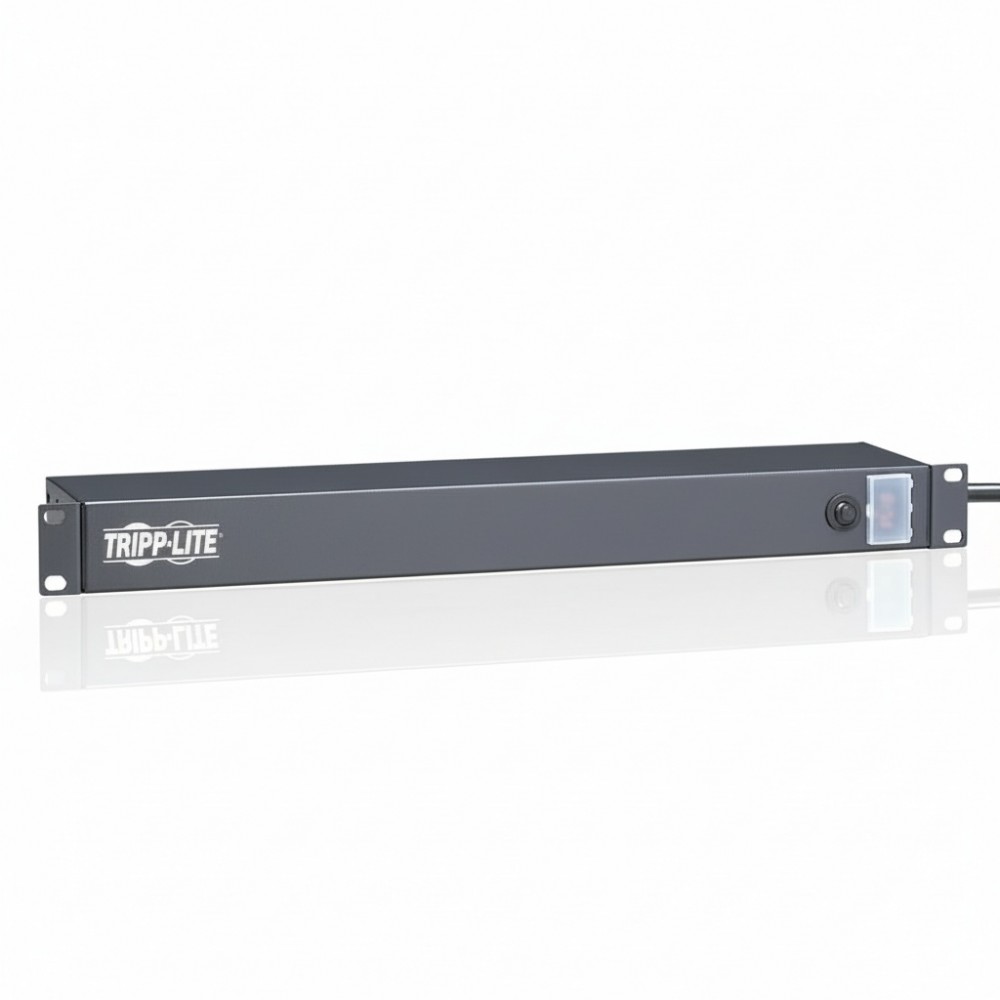

Eaton RS-0615-R 1U 120 V 15 A 6-Outlet Rack Power Strip
Overview :
The Eaton RS-0615-R is a rackmount power strip intended for basic AC power distribution in IT, network, and telecom racks where simple outlet extension is required. It is deployed by data center technicians, network engineers, and facilities teams in equipment racks, closets, and lab environments to distribute utility, UPS, or generator power to multiple devices. Its design solves the need for organized, space-efficient AC outlet access without surge suppression or advanced power management.
Electrically, this power strip accepts 120 V AC at up to 15 A via a NEMA 5-15P input and provides six rear-facing NEMA 5-15R outlets. It includes an integral 15 A circuit breaker and a lighted power switch with a transparent latching guard, offering basic overload protection and clear on/off status indication.
Mechanically, the RS-0615-R occupies 1U (EIA-310) standard rack space and installs with detachable mounting flanges that support horizontal rack, wall, under-counter, or other creative mounting options. Its all-metal housing and rear-facing receptacles help keep cabling tidy in confined rack environments.
Integration is purely passive × this strip has unfiltered electrical pass-through, so it works reliably with alternate waveform power from UPSs or generators, but it does not include surge suppression, metering, communication, or outlet control. Monitoring and protection beyond basic breaker and switch functions must be handled upstream.
A practical deployment is extending AC power from a single rack outlet to multiple network switches and patch panels in a branch IDF/MDF or lab rack. It is not suited where surge suppression, remote monitoring, metered load data, or switched outlet control is required; for those use cases, managed or metered PDUs should be selected.
Key Features
- 1U rackmount design with detachable mounting flanges
- Six rear-facing NEMA 5-15R outlets for AC distribution
- NEMA 5-15P 15 ft cord with 15 A capacity
- Lighted switch with locking guard for inadvertent shutoff protection
- Integrated 15 A circuit breaker for overload protection
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | RS-0615-R |
| Product Type | Rackmount Power Strip |
| Input Voltage | 120 V AC |
| Rated Current | 15 A |
| Power Capacity | ~1.8 kW |
| Input Connection | NEMA 5-15P |
| Output Receptacles | 6 × NEMA 5-15R (rear-facing) |
| Cord Length | 15 ft (4.57 m) |
| Overload Protection | 15 A circuit breaker |
| Switch | Lighted with transparent latch guard |
| Mounting | 19″ EIA-310 1U rack, wall, under-counter |
| Housing | All-metal |
| Dimensions (H×W×D) | ~1.75″ × 17.5″ × 4.5″ |
| Weight | ~4.5 lb (~2.04 kg) |
| Frequency | 50/60 Hz |
| Operating Temp | 0 °C-40 °C |
| Compliance | UL, cUL, NOM |
