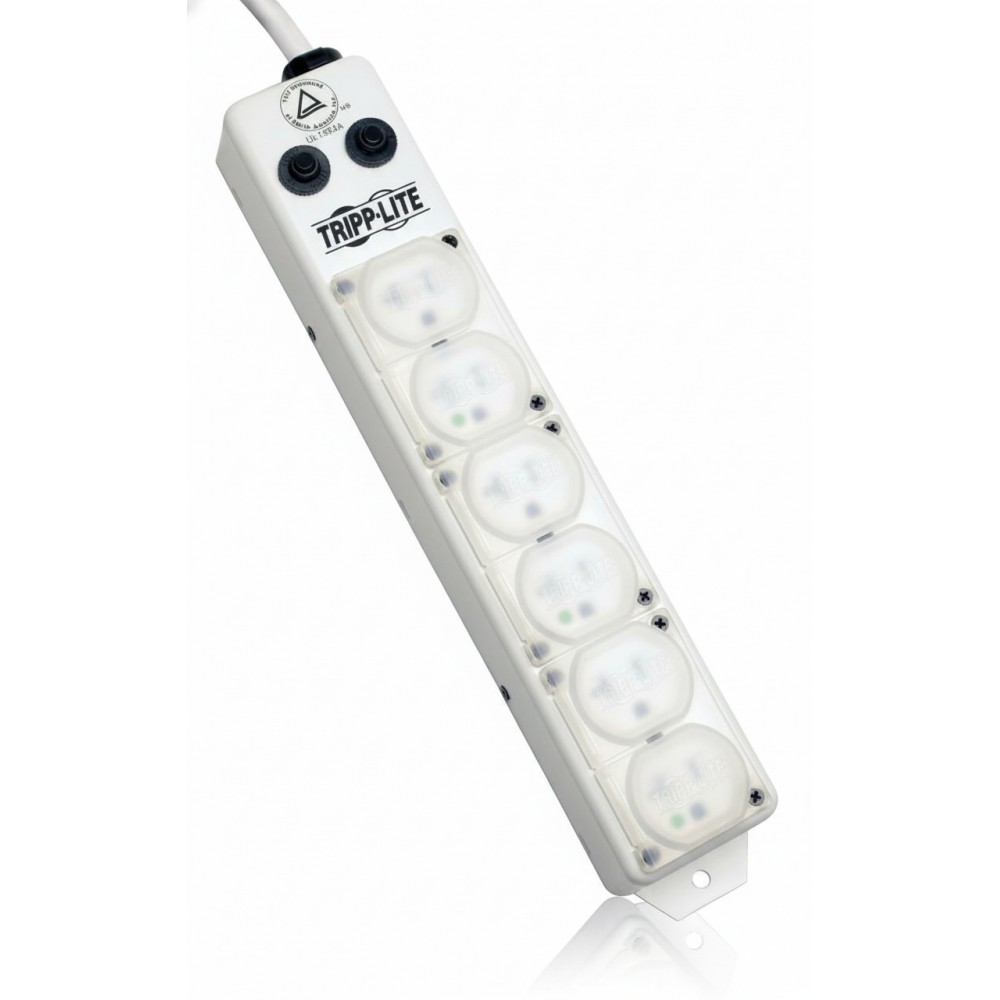

Eaton PS625HG20AOEM 6-Outlet Hospital-Grade Power Strip 25 ft
Overview :
The Eaton PS625HG20AOEM is a medical-grade hospital power strip designed for powering multiple devices in healthcare environments where compliance and safety are required. It is deployed by facility engineers, biomedical technicians, and clinical IT teams to supply dependable AC power to movable medical equipment without violating hospital electrical codes.
This strip provides six NEMA 5-20R-HG hospital-grade receptacles from a single NEMA 5-20P-HG hospital-grade plug with a 25-foot 20 A AC power cord. It operates on 120 V AC at 50/60 Hz and includes dual resettable 20 A circuit breakers for overload protection. Its switchless design prevents accidental power interruption.
The PS625HG20AOEM is intended for clinical applications such as operating rooms, patient-care vicinities, therapy and imaging rooms, administrative areas, and mobile workstations where extended reach and multiple outlet availability are required. When mounted properly using supplied tabs, it meets UL 1363A and NFPA 99 standards for relocatable medical power taps in healthcare settings.
From an integration perspective, this power strip interfaces with standard North American 120 V infrastructure and is designed to attach securely to IV poles, mobile carts, crash carts, and medical workstation frames. Its all-metal housing and antimicrobial protection help maintain hygiene in patient environments.
A practical deployment example includes powering diagnostic monitors, bench tools, monitoring devices, and laptop workstations on a mobile medical cart during rounds. The 25 ft cord allows flexibility in positioning the cart relative to wall outlets while minimizing the need for extension cords.
This unit should not be used as a substitute for dedicated branch-circuit outlets in fixed medical equipment receptacle locations. It is not a surge protector, UPS, or a solution for permanently mounted power distribution in fixed patient care receptacle systems. It must be permanently attached to equipment to meet UL 1363A patient-care vicinity criteria.
Key Features
- Six NEMA 5-20R-HG hospital-grade outlets
- 25 ft 20 A SJT power cord with NEMA 5-20P-HG plug
- Dual resettable 20 A circuit breakers
- Antimicrobial housing resists microbial growth
- Mounting tabs/flanges for clinical attachment
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | PS625HG20AOEM |
| Product Type | Hospital-Grade Power Strip |
| Input Voltage | 120 V AC |
| Input Current Rating | 20 A |
| Frequency | 50/60 Hz |
| Input Plug Type | NEMA 5-20P-HG |
| Output Receptacles | 6 × NEMA 5-20R-HG |
| Cord Length | 25 ft (7.62 m) |
| Circuit Protection | 2 × resettable 20 A breakers |
| Housing Material | All-metal |
| Antimicrobial Protection | Yes |
| Outlet Orientation | Single-row |
| Mounting | Tabs and flanges (included) |
| Certifications | UL 1363A, UL Listed, NFPA 99 |
| Compliance | RoHS |
| Weight | ~5.4 lb (2.45 kg) |
