Detailed Specifications

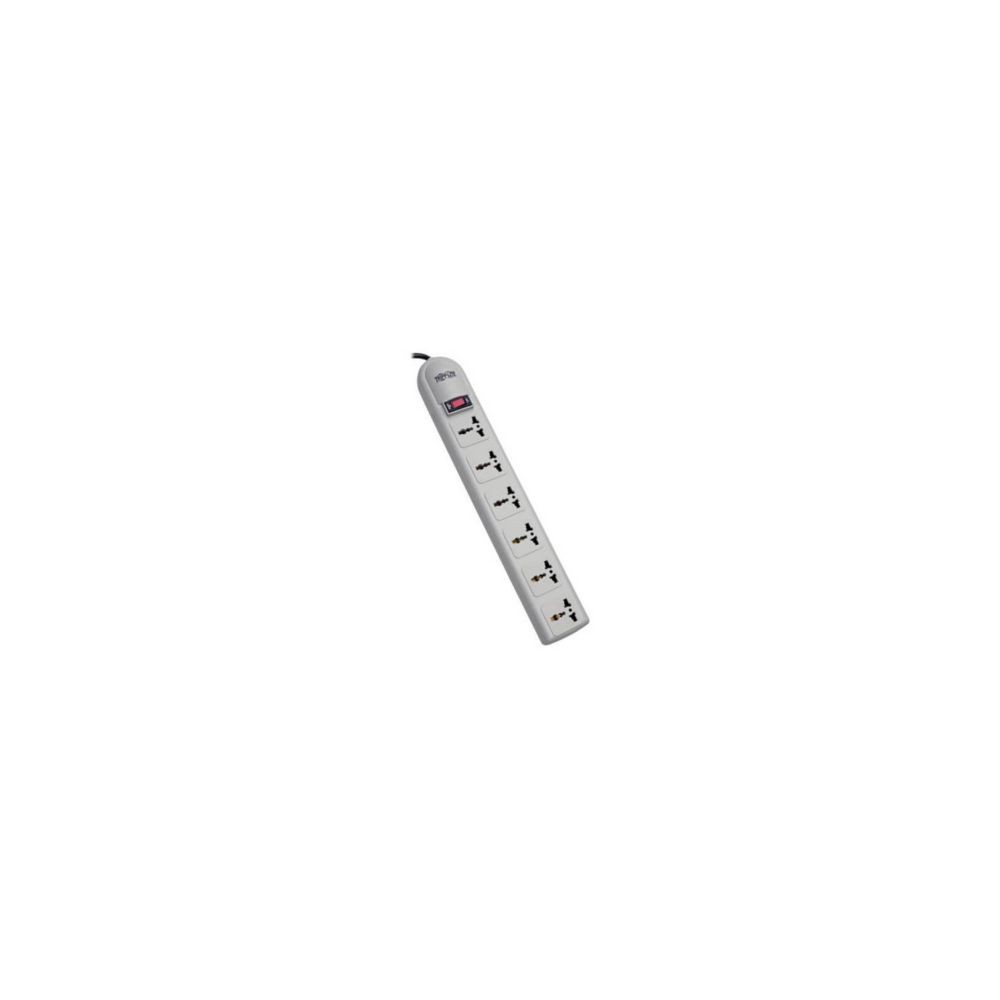

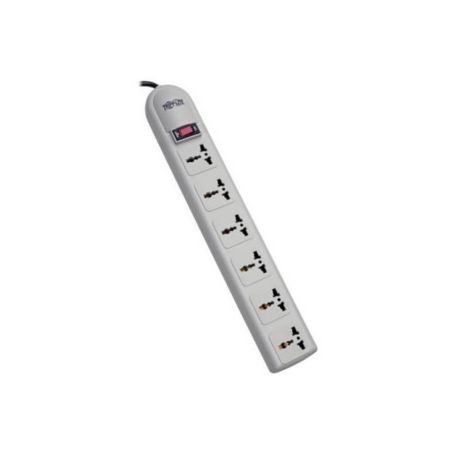

Eaton SUPER6OMNIB Tripp Lite 230V 6 Outlet Universal Surge Protector
Overview
The Eaton SUPER6OMNIB is a Tripp Lite by Eaton Protect It! 230V surge protector with six universal AC outlets and a 6 ft (1.8 m) power cord terminated with a British BS 1363 plug. It is designed for office, workstation, telecom and other electronic equipment requiring 220–250V power.
The unit provides 750 joules of AC surge suppression, a 10A resettable illuminated circuit breaker, and protection in normal and common-mode surge paths. Its universal outlets accept a wide range of international plugs.
Key Features
- 6 universal AC outlets for international plug types
- 750-joule surge suppression with <1 ns response time
- 220–250V AC operation at 50/60 Hz
- 10A resettable illuminated circuit breaker
- 6 ft / 1.8 m cord with British BS 1363 plug
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Product Line | Tripp Lite by Eaton Protect It! |
| Part Number | SUPER6OMNIB |
| Product Type | Surge Protector |
| Number of Outlets | 6 |
| Outlet Type | Universal |
| Input Voltage | 220–250V AC |
| Nominal Voltage | 230V AC |
| Frequency | 50/60 Hz |
| Maximum Current | 10A |
| Surge Suppression | 750 Joules |
| Maximum Surge Current | 13,500A |
| Response Time | <1 ns |
| Circuit Breaker | 10A resettable, illuminated |
| Input Plug | British BS 1363 |
| Cord Length | 6 ft / 1.8 m |
| Outlet Orientation | Right-angled |
| Outlet Spacing | 51 mm center-to-center |
| EMI/RFI Filtering | Not specified as provided |
| Housing Material | Plastic |
| Housing Color | Light Gray |
| Mounting | Keyhole mounting slots |
| Operating Temperature | 0–40°C / 32–104°F |
| Operating Humidity | 20–85% RH |
| Storage Temperature | -15–40°C / 5–104°F |
| Storage Humidity | 0–90% RH |
| Dimensions | 16 × 2.5 × 1.75 in |
| Product Weight | 1 lb |
| Compliance | RoHS |
| Warranty | Limited Lifetime |
| UPC | 037332121158 |
