Detailed Specifications

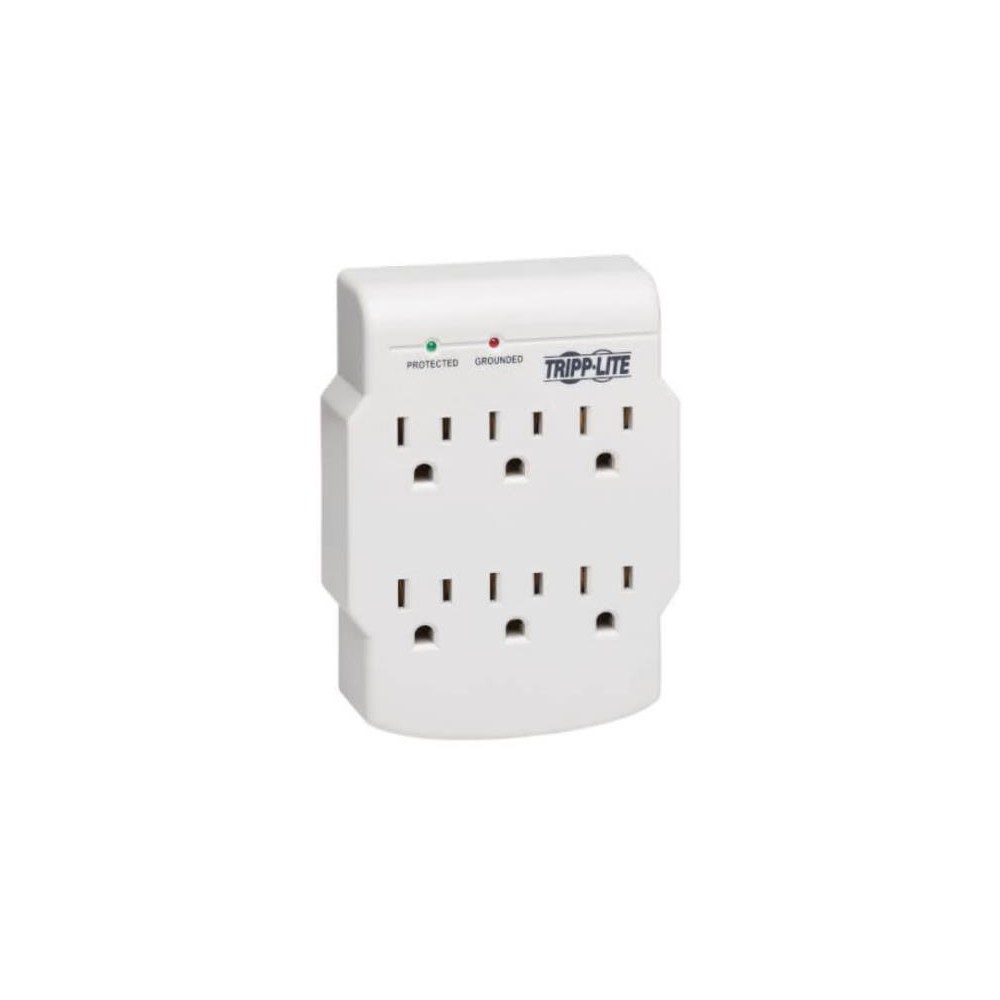

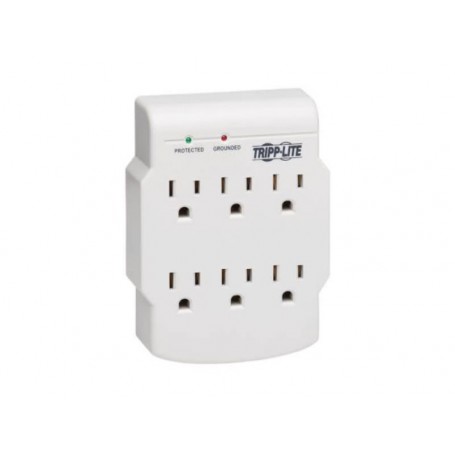

Eaton SK6-0/SPIKEBLOK 6-Outlet Surge Protector Compatible Tripp Lite
Overview :
The Eaton SK6-0/SPIKEBLOK is a Tripp Lite Protect It! 6-outlet low-profile surge protector designed to provide direct plug-in surge protection for computers, office equipment, audiovisual devices, workstations and other electronic equipment.
The unit provides six NEMA 5-15R outlets and plugs directly into a standard wall receptacle using a NEMA 5-15P plug, eliminating the need for a power cord. It provides 540 joules of surge protection, up to 36,000 amps of peak surge current, and includes a diagnostic LED and circuit-breaker protection.
Key Features :
- 6 NEMA 5-15R outlets
- Direct plug-in wall-mount design
- 540-joule surge protection
- 36,000A maximum surge current
- NEMA 5-15P input plug
- 15A maximum current
- Built-in circuit-breaker protection
- Diagnostic LED
- Automatic shut-off protection
- Low-profile design
- Integrated keyhole mounting tabs
- Black housing and receptacles
- No power cord required
- Lifetime limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | SK6-0/SPIKEBLOK |
| Product Model | SK6-0 |
| Series | Protect It! |
| Product Type | Surge Protector |
| Number of Outlets | 6 |
| Outlet Type | NEMA 5-15R |
| Input Plug | NEMA 5-15P |
| Input Voltage | 120 VAC |
| Voltage Range | 110–126 VAC |
| Maximum Current | 15A |
| Power Capacity | 1800 VA |
| Surge Energy Rating | 540 Joules |
| Peak Surge Current | 36,000A |
| Response Time | <1 ns |
| Clamping Voltage | 150V RMS |
| Circuit Breaker | Yes |
| Diagnostic LED | Yes |
| Automatic Shut-Off | Yes |
